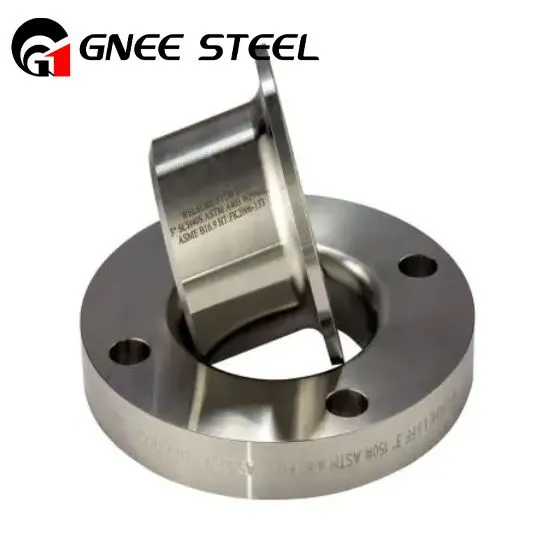

Hastelloy Lapped Joint Flanges
Hastelloy Lapped Joint Flanges
Hastelloy Lapped Joint Flanges
Hastelloy Lapped Joint Flanges

Hastelloy Lapped Joint Flanges

Hastelloy muaj kev ua haujlwm siab thiab cov khoom tshwj xeeb. Ntxiv rau qhov no, cov khoom siv raw kuj muab cov khoom siv kho tshuab thiab tshuaj lom neeg zoo heev rau cov khoom kawg. Cov khoom uas peb tsim kuj yog heev resistant rau pitting thiab cracking. Peb siv cov tshuaj zoo tshaj plaws ntawm cov hlau los tsim cov flanges.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Hastelloy lap flanges yog qhov tshwj xeeb uas lawv muaj ob ntu, flange nws tus kheej thiab lub tswb kawg. Sab nraub qaum muaj me ntsis square txiav lub xub pwg ntawm qhov nruab nrab los yog cov yeeb nkab qhov. Sab pem hauv ntej muaj ib tug tiaj tus nto nrog ib tug threaded qhov nyob rau hauv qhov chaw uas mates nrog threaded sab nraum qab ntawm lub kawg cap. Qhov no yog qhov kawg ntawm cov yeeb nkab luv yuav qhwv nruj nreem nyob ib ncig ntawm lub qhov nruab nrab ntawm lub flange.

Hastelloy Lap Joint Flanges Specification

Daim Ntawv Loj	1/2 "(15 NB) rau 48" (1200NB) DN10 ~ DN5000
Cov qauv	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange , ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Txheej	Roj Dub Xim, Xim Xim Xim, Zinc Plated, Daj Pob tshab, Txias thiab Kub Dip Galvanized
Daim ntawv pov thawj	EN 10204/3.1B Raw Materials Certificate 100% Kev Tshawb Fawb Kev Tshawb Fawb Txog Kev Tshawb Fawb Daim Ntawv Qhia Thib Peb Kev Tshawb Fawb, thiab lwm yam
Cov txheej txheem tsim khoom	Forged, Thaum tshav kub kub kho thiab machined
B564 Lap Joint Flange Txuas Hom / Flange ntsej muag hom	Raised ntsej muag (RF), Nplhaib Hom Joint (RTJ), Lub ntsej muag tiaj tus (FF), Loj Txiv Neej-Poj Niam (LMF), Lapped Joint Lub ntsej muag (LJF), Txiv Neej Me (SMF), Tus nplaig me, tus nplaig loj & zawj, Groove
Tsim tshwj xeeb	Raws li koj daim duab AS, ANSI, BS, DIN thiab JIS 15 NB (1/2 ") txog 200 NB (8") Kev sib npaug thiab txo kev teeb tsa
Kuaj	Direct-reading Spectrograph, Hydrostatic kuaj tshuab, X-ray detector, UI trasonic flaw detector, Sib nqus particle detector
Khoom siv	Xovxwm tshuab, dabtsi yog khoov tshuab, Pushing tshuab, fais bevelling tshuab, Sand-blasting tshuab thiab lwm yam

Hastelloy Pipe Lap Joint Flange

Cov txiaj ntsig ntawm Hastelloy Lapped Joint Flanges:

Txij li thaum lub lapped sib koom flange muaj ob-thooj configuration, nws muaj ib txoj kev los txo cov nqi thaum piping systems thov nws. Rau cov nqi siab alloys, tsuas yog "wetted" ib feem yog lub stub kawg. Hauv qhov xwm txheej no, nws txaus siab tias qhov kawg ntawm qhov kawg muaj cov khoom siv hluav taws xob ntau dua corrosion, qhov twg flange nws tus kheej tuaj yeem tsim los ntawm cov nqi qis dua.

Daim ntawv thov ntawm Hastelloy Lapped Joint Flanges:
