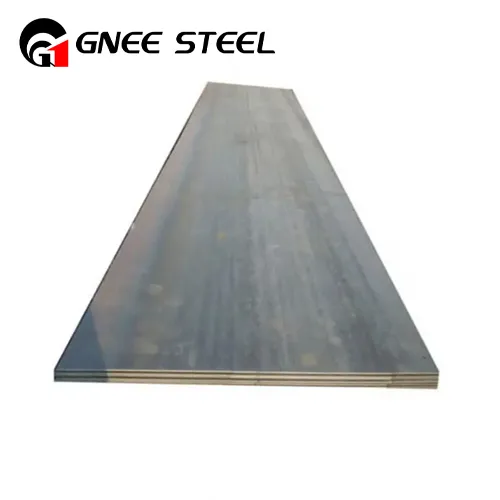

Hastelloy X Sheet
Hastelloy X Sheet
Hastelloy X Sheet
Hastelloy X Sheet

Hastelloy X Sheet

Hastelloy X yog npib tsib xee puag alloy uas muaj lub zog tshwj xeeb thiab oxidation tsis kam mus txog 2200 degree F. Nws kuj tau pom tias muaj kev tiv thaiv tshwj xeeb rau kev ntxhov siab-corrosion tawg hauv kev siv petrochemical. Lub alloy muaj zoo heev sib sau thiab vuam yam ntxwv.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

HASTELLOY XAlloy (UNS N06002 (W86002)) yog nickel-chromium-hlau-molybdenum alloy uas nthuav tawm cov oxidation zoo heev, fabricability, thiab kub kub lub zog. Cov ntawv thov X alloy nthuav tawm qhov zoo ductility tom qab lub sijhawm ntev ntawm qhov kub thiab txias ntawm 1200, 1400, 1600 degree F (650, 760, thiab 870 degree) rau 16, 000 teev.

HASTELLOY X alloy muaj kev sib sau zoo heev thiab vuam yam ntxwv. Nws tuaj yeem raug forged lossis lwm yam ua haujlwm kub, yog tias nws tuav ntawm 2150 degree F (1177 degree) rau lub sijhawm txaus los nqa tag nrho cov khoom mus rau qhov kub thiab txias. HASTELLOY X hlau yog muaj nyob rau hauv daim hlau, nplooj ntawv, sawb, billet, bar, hlau, raj, tubing, thiab npog electrodes. Cov ntawv thov suav nrog P2O5 evaporator raj.

Hastelloy X Sheets & Phaj sib npaug qib:

STANDARD	WERKSTOFF NR.	UNS
Hastelloy X	2.4665	N06002

Tshuaj muaj pes tsawg leeg ntawm Hastelloy Alloy X Sheets & Phaj

Qib	C	Mn	Si	Al	Co	Ni	Cr	Fe	Mo	Ti
Hastelloy X	0.05-0.15	1 0 max	1 0 max	0.50 max	0.5-2.5	Tseem tshuav	20.5 - 23	17 - 20	8 - 10	0.15 max

Mechanical Properties ntawm Hastelloy X Sheets & Phaj

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
8.22 g / cm3	1355 degree (2470 degree F)	95 KSI min (655 MPa min)	35 KSI min (240 MPa min)	35 %
