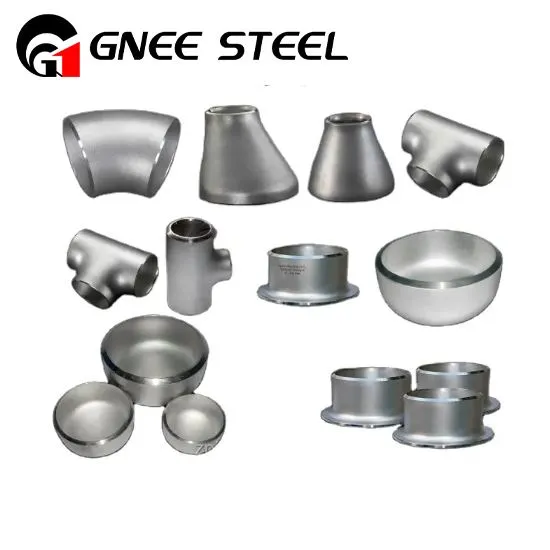

Hastelloy Buttweld Fittings
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Hastelloy alloys yog ib pab pawg ntawm nickel-based superalloys uas ua rau muaj kev tiv thaiv corrosion zoo heev, kub kub ruaj khov, thiab cov khoom zoo tshaj plaws. Cov alloys feem ntau yog siv nyob rau hauv ib puag ncig uas lwm cov ntaub ntawv, xws li stainless hlau los yog ib txwm nickel alloys, tej zaum yuav ua tsis tau vim muaj tshuaj lom neeg los yog huab cua phem.
Hastelloy buttweld fittings yog cov khoom siv hauv cov kav dej rau kev sib txuas thiab sib txuas cov kav dej ntawm ntau qhov ntau thiab tsawg thiab cov duab. Cov fittings no yog tsim los muab cov ntaub ntawv pov thawj thiab txhim khu kev qha, ua kom muaj kev ncaj ncees ntawm cov kav dej. Buttweld fittings yog tshwj xeeb tshaj yog haum rau cov ntawv thov uas yuav tsum tau muaj qib siab ntawm cov qauv kev ncaj ncees thiab cov dej nruj.
SPECIFICATION NTAWM HASTELLOY ALLOY BUTT WELD FITTINGS
| Specifications | ASTM B366 / ASME SB366 |
| Loj | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Hom | DN 15-DN1200 |
| Qhov ntev | ASME / ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Khoov Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D lossis Custom MSS Sp-43 Stainless Hlau Yeeb Nkab Fitting |
| Qhov Loj | ½ "NB txog 24" NB hauv Sch 10s, 40s, 80s, 160s, XXS. (DN6 ~ DN100) ASTM B366 Stainless hlau Buttweld haum |
| Lub luj tshib | Lub kaum sab xis: 22.5 °, 3 0deg, 45 °, 9 0 deg, 180 °, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D {{ 19}}D. Txuj: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Kev sib txuas | Vuam |
| Cov txheej txheem tsim khoom | Forge, Cast, Push, Xovxwm, thiab lwm yam. |
| Cov lag luam tseem ceeb thiab kev lag luam | Bitumen hloov kho. Hnyav roj refineries. Petrochemicals thiab acids. Nuclear zog (feem ntau seamless). |
| Daim ntawv pov thawj | EN 10204/3.1B Raw Materials Certificate 100% Kev Tshawb Fawb Kev Tshawb Fawb Txog Kev Tshawb Fawb Daim Ntawv Qhia Thib Peb Kev Tshawb Fawb, thiab lwm yam |
| Tshwj xeeb manufacturers ntawm | 90º luj tshib, 45º luj tshib, Tees, Hla, Reducers, Yeeb Nkab Cap, Stub End, Yeeb Nkab Khoov |
Cov yam ntxwv ntawm Hastelloy taub qab vuam fittings
Corrosion Resistance:Hastelloy alloys paub txog lawv qhov tshwj xeeb tsis kam tiv thaiv corrosion nyob rau hauv ntau qhov chaw nruj, nrog rau cov kua qaub, chlorides, thiab txo thiab oxidizing tej yam kev mob. Qhov no ua rau Hastelloy buttweld fittings zoo tagnrho rau kev lag luam xws li kev lag luam tshuaj, petrochemical, thiab roj thiab roj.
Temperature Stability:Hastelloy alloys tuaj yeem tswj hwm lawv cov khoom siv dag zog thiab kev tiv thaiv corrosion ntawm qhov kub siab, ua rau lawv tsim nyog rau cov ntawv thov kub. Cov cuab yeej no yog qhov tseem ceeb hauv kev lag luam uas muaj cov txheej txheem kub kub, xws li kev tsim hluav taws xob thiab aerospace.
Ntau yam ntawm Alloys:Hastelloy tsev neeg suav nrog ntau yam alloys, txhua tus tsim los muab cov khoom tshwj xeeb. Feem ntau Hastelloy alloys suav nrog C-276, C-22, B-2, thiab X, thiab lwm yam. Kev xaiv ntawm alloy nyob ntawm qhov kev thov tshwj xeeb.
Buttweld Fittings:Buttweld fittings yog tsim nyob rau hauv ib txoj kev uas tso cai rau lawv mus welded ncaj qha mus rau cov kav dej, tsim kom muaj ib tug muaj zog thiab leak-proof sib koom ua ke. Cov fittings no muaj nyob rau hauv ntau hom, xws li lub luj tshib, tees, reducers, thiab lub kaus mom, los pab txhawb kev hloov hauv cov yeeb nkab kev taw qhia, txoj kab uas hla, thiab ntws.
Fabrication:Hastelloy buttweld fittings feem ntau yog tsim los siv cov txheej txheem hu ua kub los yog txias sib sau. Txias txoj kev koom nrog khoov thiab shaping cov hlau nyob rau hauv chav tsev kub, thaum kub sib sau ua rau cua sov lub alloy ua ntej shaping. Cov txheej txheem no xyuas kom meej tias cov fittings muaj qhov xav tau cov khoom siv kho tshuab thiab qhov tseeb qhov tseeb.
Quality thiab Standards:Hastelloy buttweld fittings yuav tsum ua raws li cov qauv kev lag luam thiab cov kev qhia tshwj xeeb, xws li ASTM (American Society for Testing and Materials) cov qauv. Kev tswj xyuas kev ua tau zoo yog qhov tseem ceeb los xyuas kom meej tias cov fittings ua tau raws li qhov yuav tsum tau ua.
Daim ntawv thov:Hastelloy buttweld fittings nrhiav tau daim ntawv thov nyob rau hauv ntau yam kev lag luam, nrog rau kev ua tshuaj, petrochemical, roj thiab roj, tshuaj, pulp thiab ntawv, thiab lwm yam. Lawv siv nyob rau hauv qhov chaw tseem ceeb uas qhov kev tiv thaiv corrosion thiab kub kub yog qhov tseem ceeb.
Cov khoom kuaj
Ntim & Shipping
