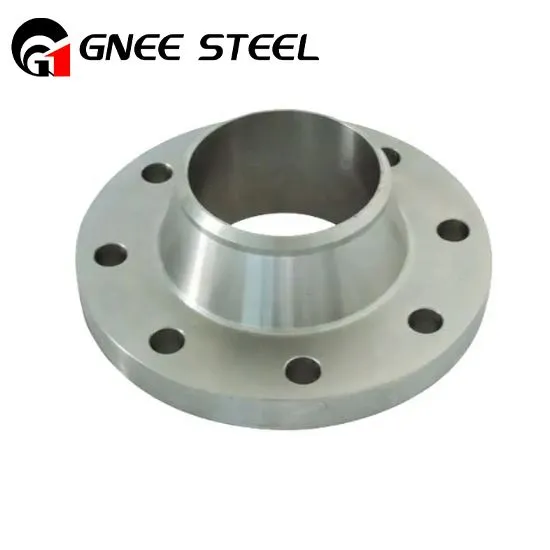

Hastelloy Vuam Neck Flanges

Hastelloy weld caj dab flange muaj qhov ntev tapered hub uas tuaj yeem txuas tau los ntawm zawv zawg hla cov yeeb nkab lossis haum. Nws ntxiv dag zog rau cov yeeb nkab thiab txuas rau nws los ntawm kev vuam. Nws yog ib qho tseem ceeb uas lub puab txoj kab uas hla ntawm lub hub sib tw rau sab nraud ntawm cov yeeb nkab rau kev sib txuas kom raug. Nws ntxiv dag zog rau cov yeeb nkab thaum siv nyob rau hauv kev kub ntxhov kev ntxhov siab nrog rau cov kev cai kub ntxhov siab.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Hastelloy weld caj dab flange yog super alloy flange ua los ntawm kev pom zoo ua ke ntawm nickel thiab chromium. Nws kuj tau ntxiv cobalt, hlau, manganese, silicon, carbon thiab molybdenum, thiab tseem muaj xws li tungsten, vanadium, thiab lwm yam. Nws tuaj yeem tiv thaiv corrosion thiab tiv thaiv kev puas tsuaj hauv zos. Hastelloy yog cov khoom siv hluavtaws zoo heev uas siv ntau qib los txhim kho cov cua sov thiab tiv thaiv corrosion.

Qhov loj ntawm Hastelloy Weld Neck Flanges

Nominal Loj	Sab nraud txoj kab uas hla (OD)	Min. Thickness (T)	RF Dia. (R)	No. ntawm Bolt Holes	Txoj kab uas hla ntawm qhov	Bolt Vajvoog (BC)	SO Bore ID (SB)	NWS Bore ID (WB)	Dia. Hub Base (HB)	Dia. ntawm Hub Top (HT)	YOG LTH (SL)	WN LTH (WL)
¹⁄₂	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
³⁄₄	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
1¹⁄₄	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
1¹⁄₂	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
2¹⁄₂	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
3¹⁄₂	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

Nickel Hastelloy Weld Neck Flanges

Kev siv Hastelloy Weld Neck Flanges

Ib daim ntawv thov rau Hastelloy weld caj dab flanges yog nyob rau hauv kev lag luam tshuaj. Lawv yog siv nyob rau hauv tshuaj nroj tsuag thiab refineries uas feem ntau lis corrosive tshuaj xws li acids, alkalis, thiab cov tshuaj muaj zog. Qhov kev tiv thaiv corrosion ntawm Hastelloy ua ke nrog lub caj dab weld tsim kom ntseeg tau tias muaj kev ruaj ntseg thiab tsis muaj pov thawj kev sib txuas, tiv thaiv tej yam muaj peev xwm xau los yog paug.

Hastelloy Weld Neck Flanges nta:

Cov Flanges no muaj zog dua thiab tawv dua cov qauv muaj txiaj ntsig hauv kev tuav cov kev ntxhov siab. Nws txhawb cov yeeb nkab uas muaj peev xwm ua tau zoo heev. Lawv yooj yim hauv cov tshuaj ib puag ncig xws li acids, ntsev, thiab sulfates. Ntau daim ntawv thov cuam tshuam nrog dej, dej hiav txwv, thiab dej qias neeg siv cov flanges yam tsis muaj kev cuam tshuam los ntawm decompositions. Cov flanges no tiv thaiv oxidation, xeb, thiab pitting.

Daim ntawv thov:Kev tswj kev ua qias tuaj, Ntsig qaub, Nqus roj desulfurization, ua zaub mov.
