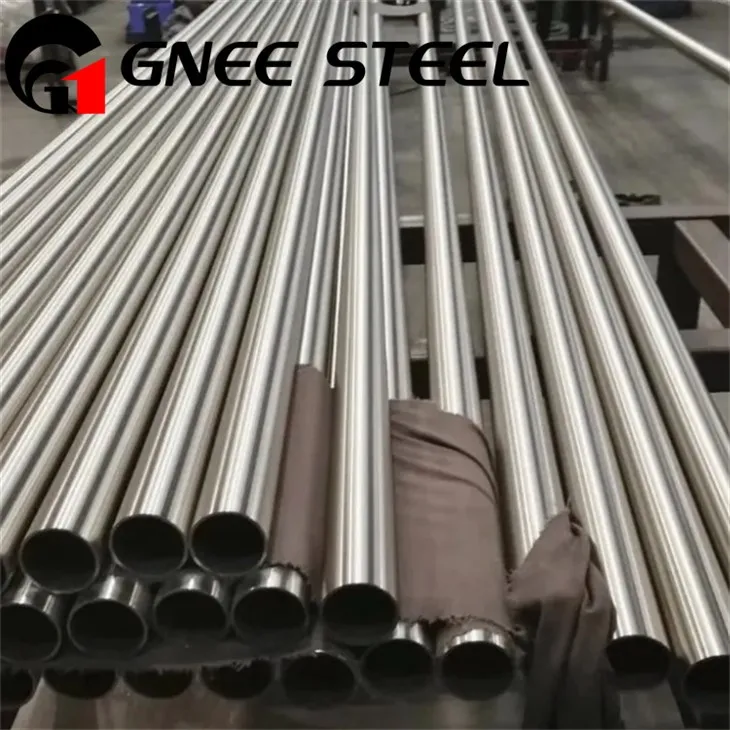

Nickel{0}}raws li GH3030 Siab-kub Alloy Tube

GH3030 yog qhov kub siab -kub alloy, tseem hu ua Inconel 713C. Nws yog npib tsib xee-raws li superalloy nrog zoo heev - kub lub zog, oxidation tsis kam, thiab creep kuj. Cov hlau no muaj cov nyiaj npib tsib xee, chromium, thiab txhuas, nrog rau cov lej ntawm lwm cov khoom xws li hlau, cobalt, thiab titanium.



GH3030 tubing feem ntau yog siv rau hauv cov ntawv thov uas xav tau siab -kub tsis kam, xws li cov roj turbines, cov khoom siv dav hlau, thiab cov chaw ua haujlwm. Cov raj no tuaj yeem tiv taus qhov kub txog li 1100℃(2012℃F) thaum tuav lawv cov khoom siv kho tshuab.





Nickel GH3030 Superalloy Tube GH3030 Kub Kub Alloy Tube
Sab nraud txoj kab uas hla	10.3-426 hli
Phab ntsa Thickness	1.24-40.49 hli
Ntev	Mus txog 25 m
Txuj	ASTM B163, ASTM B167, ASTM B407, ASTM B444, ASTM B622, ASTM B677, ASTM B829, thiab lwm yam.
Hastelloy Series	Hastelloy B(UNS N10001), Hastelloy B-2(UNS N10665), Hastelloy B-3(UNS N10675), Hastelloy C-4(UNS N06455), Hastelloy C-22(UNS N06022), Hastelloy C-276(UNS N102706), Hastelloy C-276(UNS N102706), Hastelloy G-30 (UNS N06030), Hastelloy G-35 (UNS N06035).
Haynes Series	Haynes 230 (UNS N06230), Haynes 556 (UNS R30556).
Inconel Series	Inconel 600 (UNS N06600), Inconel 601 (UNS N06601), Inconel 617 (UNS N06617), Inconel 625 (UNS N06625), Inconel 690 (UNS N06690), Inconel 7178 (UNS N0).
Incoloy Series	Incoloy 020(UNS N08020), Incoloy 800(UNS N08800), Incoloy 800H(UNS N08810), Incoloy 800HT(UNS N08811), Incoloy 825(UNS N08825), Incoloy5 N0925(UNS).
Monel Series	Monel 400 (UNS N04400).
Nickel Series	Nickel 200 (UNS N02200), Nickel 201 (UNS N02201).
High Temperature Alloys	GH2132,GH3030,GH3039,GH3128,GH3044,GH4080A.
Kev Xa Khoom	Pickled & Annealed, Polished, Bright Annealed.
Cov txheej txheem	Seamless
Daim ntawv thov	National tiv thaiv, astronautics, tsheb thauj mus los, khoom siv, shipping, roj av, nuclear fais fab kev lag luam, roj thiab roj kev lag luam, thiab tshuaj lom neeg kev lag luam thiab lwm yam.
Kos npe	LOGO, Standard, Qib, Loj, Kub Number.
Pob	Woven hnab, rooj ntoo, los yog raws li tus neeg yuav tsum tau muaj.
Kev Xav Tau Zoo	Mill Test Certificate (EN 10204/3.1); Kev soj ntsuam thib peb yog qhov lees txais.







GH3030 siab -kub alloy tubeChemical Composition (Qhov hnyav%)

Element	Yam tsawg kawg nkaus	Qhov siab tshaj plaws
Nickel (Ni)	–	Tshuav
Hlau (Fe)	–	1.5
Chromium (Cr)	19	22
Phosphorus (P)	–	0.03
Aluminium (Al)	–	0.15
Titanium (Ti)	0.15	0.35
Cov pa roj carbon (C)	–	0.12
Manganese (Mn)	–	0.7
Silicon (Si)	–	0.8
Sulfur (S)	–	0.02



GH3030 siab -kub tubeLub cev muaj zog

Khoom	Tus nqi
Qhov ntom	8.4 g / cm³
Melting Range	1374-1420 degree





Cov ntawv thov zoo ntawm GH3030 Tubing: GH3030 tubing yog dav siv hauv kev lag luam xav tau vim nws qhov kev ua tau zoo nyob rau hauv cov xwm txheej hnyav:

Aerospace: Cheebtsam rau aircraft cav combustion chambers, afterburners, thiab casing mounting npoo, ua hauj lwm ntawm kub hauv qab 800 degree.

Kev Siv Tshuaj: Siv nyob rau hauv cov khoom siv hluav taws xob, cov khoom siv hluav taws xob, thiab lwm yam khoom siv uas yuav tsum tau ua kom tsis txhob muaj qhov kub thiab txias thiab corrosive media.

Kev lag luam Nuclear: Siv nyob rau hauv nuclear reactor systems thiab chav generator piping.

Cov Hluav Taws Xob Hluav Taws Xob: Siv rau hauv cov khoom siv hluav taws xob thiab cov khoom siv kho cua sov uas yuav tsum tau oxidation tsis kam ntawm qhov kub txog li 1100℃nyob rau hauv qis loads.

Kev Ntsuas: Siv nyob rau hauv siab - daim ntawv thov kub, xws li thermocouple tiv thaiv sheaths.



Gnee Steel muab cov kev kho cua sov hauv qab no rauNickel-raws li GH3030 siab- kub alloy raj: annealing, tov + laus. Tsis tas li ntawd, Gnee Steel tseem muab kev ua haujlwm kub thiab txias ua haujlwm, uas yog kub dov thiab kos duab txias.





1. Kev ntim khoom yog qhov tseem ceeb, tshwj xeeb tshaj yog nyob rau hauv kev xa khoom thoob ntiaj teb, qhov twg cov khoom tau dhau los ua ntau theem kom ncav cuag lawv qhov chaw kawg; yog li ntawd, peb muab qhov tseem ceeb ntawm kev ntim khoom.

2. Gnee Steel siv ntau txoj kev ntim khoom nyob ntawm cov khoom. Piv txwv li, peb siv ntau txoj kev ntim khoom ...
