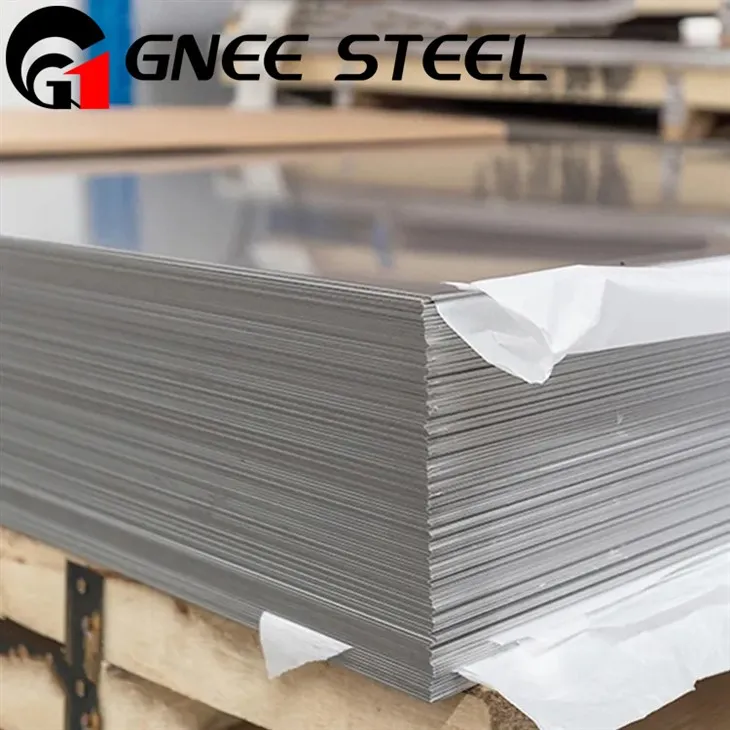

GH2132 Siab-kub Alloy Phaj Rau Cov Hniav Hniav

GH2132, tseem hu ua Inconel 713C, yog lub siab - kub alloy feem ntau muab rau hauv ntau hom, suav nrog cov phaj thiab cov ntawv. Cov khoom ntawm GH2132 daim hlau thiab cov nplooj ntawv zoo ib yam li cov GH2132 tubing tau hais ua ntej, ua rau pom zoo heev - kub lub zog, oxidation tsis kam, thiab creep resistance.



Siab -Temperature Strength: GH2132 daim hlau thiab cov ntawv tuav lawv lub zog thiab cov khoom siv kho tshuab txawm tias qhov kub thiab txias, ua rau lawv tsim nyog rau cov ntawv thov uas yuav tsum tau tiv thaiv thermal stress.



Oxidation Resistance: GH2132 muaj oxidation zoo heev thiab corrosion kuj, uas yog ib qho tseem ceeb nyob rau hauv siab - kub ib puag ncig uas nws nquag raug rau gases thiab combustion khoom.



GH2132 Production Execution Standards

Hom qauv	Tshuaj muaj pes tsawg leeg	Bar Tshuag	Forging	Phaj / Ntawv	Hlau	Tube / Tube
National Standard (Tuam Tshoj)	GB/T 14992	GB/T 14994 GB/T 14993	GB/T 14997 GB/T 14998	GB/T 14995 GB/T 14996	-	GB/T 15062
Aviation Industry Standards	-	SIB 5189	-	-	-	-
Tub rog Standards (Tuam Tshoj)	-	SIB 2611 SIB 3165	SIB 3020 SIB 3782	-	SIB 2612 SIB 3167	-





Qib	hwv 2132
Txuj	ASTM B463 / ASME SB463
Thickness	0.1mm txog 100mm
Loj	1000 hli x 2000 hli, 1220 hli x 2440 hli, 1500 hli x 3000 hli, 2000 hli x 2000 hli, 2000 hli x 4000 hli
Ua kom tiav	Kub dov phaj (HR), Cold Rolled Sheet (CR), 2B, 2D, BA NO (8), SATIN (Met with Plastic Coated)
Daim ntawv	Cov ntawv, phaj, coils, slatting coils, perforated coils, foils, yob, daim ntawv dawb, daim ntawv ci, strips, flats, khoob (lub voj voog), nplhaib (Flange)
Hardness	Mos, Hard, Ib nrab Hard, Quarter Hard, Spring Hard thiab lwm yam.
Daim ntawv thov	Tawm ntawm -Shore Roj Drilling tuam txhab, tsim hluav taws xob, Petrochemicals, Gas processing, Tshwj xeeb tshuaj, tshuaj, khoom siv tshuaj, tshuaj, khoom siv dej hiav txwv, tshav kub exchangers, condensers, pulp thiab ntawv kev lag luam





GH2132 - UNS S66286 Kub Kub Alloy Chemical Composition

Cr	Ni	Mo	Co	Va	Al	Ti	B	C	Fe	Mn	Si	P	S
Min	13.5	24	1	–	0.1	–	1.9	0.003	–	–	–	–	–	–
Max	16	27	1.5	1	0.5	0.35	2.35	0.01	0.08	Tshuav	2	1	0.025	0.025



GH2132 - UNS S66286 High Temperature Alloy Qib sib npaug

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	LOSSIS
GH2132/A-286	1.4980	S66286	–	–	–	–	–	–



GH2132 - UNS S66286 Kub Kub Alloy Mechanical Properties

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
7,94g 3	1430℃(2600℃F)	550-1300 Mpa	350-750Mpa2	25%





GH2132 tshwj xeeb yog tsim los rau siab -kub bearing Cheebtsam nyob rau hauv aero engines, haum rau cov Cheebtsam ua hauj lwm nyob rau hauv nruab nrab mus rau kub kub (hauv qab 650℃- 700 degree):

Rotors thiab turbine hniav

Turbine disks thiab compressor disks

Fasteners thiab structural Cheebtsam

Afterburner Cheebtsam



Gnee Steel muab cov kev kho cua sov hauv qab no rauSiab -kub GH2132 alloy tubing rau aero xyaw: annealing, tov + laus. Tsis tas li ntawd, Gnee Steel tseem muab kev ua haujlwm kub thiab txias ua haujlwm, uas yog kub dov thiab kos duab txias.





1. Kev ntim khoom yog qhov tseem ceeb, tshwj xeeb tshaj yog nyob rau hauv kev xa khoom thoob ntiaj teb, qhov twg cov khoom tau dhau los ua ntau theem kom ncav cuag lawv qhov chaw kawg; yog li ntawd, peb muab qhov tseem ceeb ntawm kev ntim khoom.

2. Gnee Steel siv ntau txoj kev ntim khoom nyob ntawm cov khoom. Piv txwv li, peb siv ntau txoj kev ntim khoom ...
