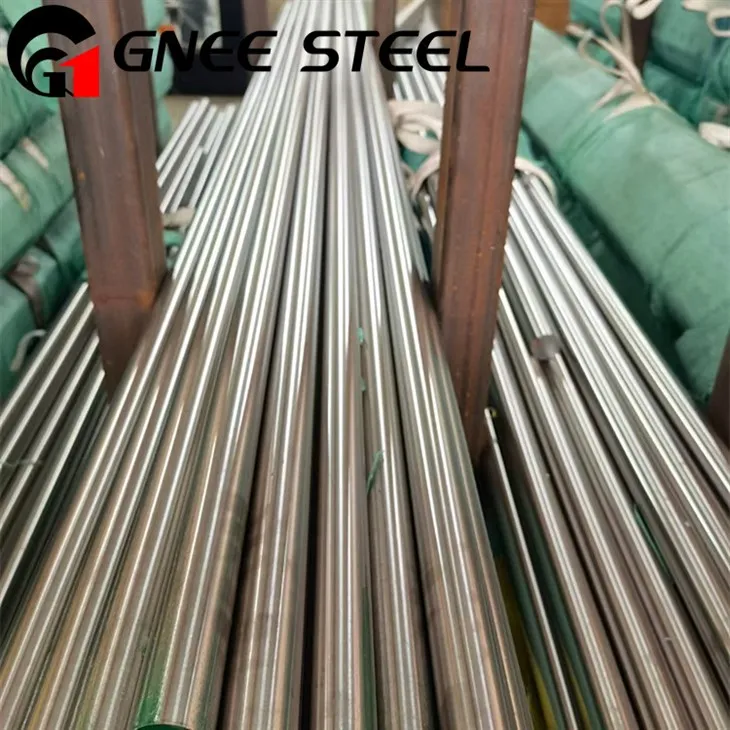

GH2132 Alloy Rods Rau Siab -kub qhov cub
Specification: GB / T 14994
Qib: GH2132
Ntev: Customized
Round Bar Txoj kab uas hla: 4.00mm txog 400mm
Bright Bar: 4mm txog 150mm
Kev kho deg: Dub, ci, Polished
Puab: Round Bars, Billets, Ingots, Forgings, thiab lwm yam.
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
GH2132 alloy rods rau siab -kub qhov cub piav qhia
GNEE GH2132 alloy rods rau siab -kub rauv
GH2132 (tseem hu ua A-286 lossis UNS S66286) yog hlau-nickel-chromium-raws li superalloy bar tsim rau cov ntawv thov uas xav tau lub zog siab, oxidation tsis kam, thiab nkag los ntawm qhov kub thiab txias. Nws yog ntau yam khoom siv kub-kub siv hauv kev tsim khoom ntawm cov khoom siv rau kev lag luam furnaces.
GH2132 yog peb cov qib tseem ceeb, thiab nws tau txais kev lees paub los ntawm cov neeg siv khoom hauv ntau lub teb chaws txij li pib tsim khoom. Peb cov khoom suav nrog GH2132 round bars, tiaj tiaj, forgings, nrog rau kev ua haujlwm siab -precision machined fasteners, shafts, washers, screws, studs, nuts, bolts, OEM parts, and custom-machined parts. Kev xa khoom muaj xws li quenched thiab tempered, annealed, thiab machined semi-cov khoom tiav. Peb nruj me ntsis tswj cov ntim kom tsis txhob muaj cov khoom puas thaum lub sij hawm thauj mus los. Gnee Steel yog tus xa khoom zoo tshaj plaws ntawm GH2132 cov khoom siv thiab txaus siab los tsim ua ke nrog cov neeg siv khoom thoob ntiaj teb.
Specification ntawm GH2132 alloy rods rau siab -kub rauv
| Qib | hwv 2132 |
| Txuj | ASTM B463 / ASME SB463 |
| Thickness | 0.1mm txog 100mm |
| Loj | 1000 hli x 2000 hli, 1220 hli x 2440 hli, 1500 hli x 3000 hli, 2000 hli x 2000 hli, 2000 hli x 4000 hli |
| Ua kom tiav | Kub dov phaj (HR), Cold Rolled Sheet (CR), 2B, 2D, BA NO (8), SATIN (Met with Plastic Coated) |
| Daim ntawv | Cov ntawv, phaj, coils, slatting coils, perforated coils, foils, yob, daim ntawv dawb, shim ntawv, sawb, flats, khoob (lub voj voog), nplhaib (Flange) |
| Hardness | Mos, Hard, Ib nrab Hard, Quarter Hard, Spring Hard thiab lwm yam. |
| Daim ntawv thov | Tawm ntawm -Shore Roj Drilling tuam txhab, tsim hluav taws xob, Petrochemicals, Gas processing, Tshwj xeeb tshuaj, tshuaj, khoom siv tshuaj, tshuaj, khoom siv dej hiav txwv, tshav kub exchangers, condensers, pulp thiab ntawv kev lag luam |
GH2132 alloy rods rau siab -kub rauv Specification
hwv 2132rodsChemical Composition (Qhov hnyav%)
| Element | Yam tsawg kawg nkaus | Qhov siab tshaj plaws |
|---|---|---|
| Nickel (Ni) | 24.0 | 27.0 |
| Chromium (Cr) | 13.5 | 16.0 |
| Hlau (Fe) | Tshuav | Tshuav |
| Boron (B) | 0.003 | 0.010 |
| Molybdenum (hli) | 1.0 | 1.5 |
| Vanadium (V) | 0.1 | 0.5 |
| Cov pa roj carbon (C) | - | 0.08 |
| Manganese (Mn) | - | 0.35 |
| Silicon (Si) | - | 0.35 |
| Sulfur (S) | - | 0.002 |
| Phosphorus (P) | - | 0.015 |
| Copper (Cu) | - | 0.3 |
| Aluminium (Al) | 1.9 | 0.35 |
| Titanium (Ti) | - | 2.35 |
GH2132 Bar Lub cev muaj zog
| Khoom | Tus nqi | Cov xwm txheej / Lus Cim |
|---|---|---|
| Qhov ntom | 7.99 g / cm³ | |
| Melting Point | 1364 - 1424 degree | |
| Thermal conductivity (λ) | 14.2 W / (m· degree) | Thaum 100 degree |
| Tshwj xeeb kub muaj peev xwm | - | Cov ntaub ntawv tsis muab |
| Elastic Modulus | - | Cov ntaub ntawv tsis muab |
| Shear Modulus | - | Cov ntaub ntawv tsis muab |
| Kev tiv thaiv | 0.914 μΩ·m | |
| Linear Expansion Coefficient (a) | 15.7 x 10⁻⁶ / degree | Los ntawm 20℃mus rau 100 degree |
hwv 2132rodsMechanical Properties (Solution State)
| Khoom | Tus nqi |
|---|---|
| Tensile zog (σb) | 930mpa ua |
| Yield zog (RP0.2) | 590 MPa ua |
| Elongation (A) | > 15 % |
| Brinell Hardness (HB) | Tsawg dua lossis sib npaug li 341 |
Daim ntawv thov ntawm GH2132 alloy rods rau siab -kub rauv
High -Tsub Kub Kub Cov Ntawv Thov
GH2132 alloy tuav yog tsim rau cov chaw tsim khoom siv hluav taws xob, cov khoom siv kho cua sov, thiab lwm yam kev kho cua sov, tshwj xeeb tshaj yog nyob rau hauv cov ntawv thov uas yuav tsum tau tiv thaiv cov thermal thiab mechanical stresses. Cov ntawv thov tshwj xeeb suav nrog:
Cov Txheej Txheem Txheej Txheem: Cov tuav tuaj yeem siv rau cov khoom siv hluav taws xob txhawb nqa, cov khoom sib txuas, thiab cov clamps sab hauv.
Cov Cuab Yeej Siv Hluav Taws Xob: Cov hlau no nthuav tawm kev ruaj ntseg zoo thiab lub zog ntawm qhov kub thiab txias, ua rau nws tsim nyog rau kev txhawb nqa cua sov thiab tiv thaiv lawv los ntawm cov roj corrosive thiab cov khoom siv.
Thaum tshav kub kub Exchangers: Thaum tshav kub kub exchanger sib dhos siv nyob rau hauv siab -kub ib puag ncig.
GH2132 alloy rods rau siab -kub rauv txheej txheem ntau lawm
Gnee Steel muab cov kev kho cua sov hauv qab no rauGH2132 alloy rods rau siab -kub rauv: annealing, tov + laus. Tsis tas li ntawd, Gnee Steel tseem muab kev ua haujlwm kub thiab txias ua haujlwm, uas yog kub dov thiab kos duab txias.
GH2132 alloy rods rau siab -kub furnaces Ntim
1. Kev ntim khoom yog qhov tseem ceeb, tshwj xeeb tshaj yog nyob rau hauv kev xa khoom thoob ntiaj teb, qhov twg cov khoom tau dhau los ua ntau theem kom ncav cuag lawv qhov chaw kawg; yog li ntawd, peb muab qhov tseem ceeb ntawm kev ntim khoom.
2. Gnee Steel siv ntau txoj kev ntim khoom nyob ntawm cov khoom. Piv txwv li, peb siv ntau txoj kev ntim khoom ...
Hais txog Gnee Steel
Gnee Steel tshwj xeeb hauv kev tsim thiab muag ntawm ntau yam nickel-raws li alloys, suav nrog Nickel 201, Nickel 202, Hastelloy C-276, Hastelloy C-22, Hastelloy B, Hastelloy C-4, Inconel Alloy 600, Inconel 625, Inconel 71, Inconel Alloy 800, Incoloy 800H / HT, Incoloy 825, Monel Alloy 400, Monel K500, thiab kub kub alloys. Gnee Steel cov khoom siv dav siv hauv aerospace, tshuaj, hluav taws xob, tsheb, thiab kev siv hluav taws xob nuclear. Peb kuj muab cov kev daws teeb meem customized alloy raws li cov neeg siv khoom xav tau. Rau cov lus nug txog tus nqi alloy lossis customized alloy kev daws teeb meem, thov hu rau peb rau kev tsocai ntawmss@gneesteel.com.
