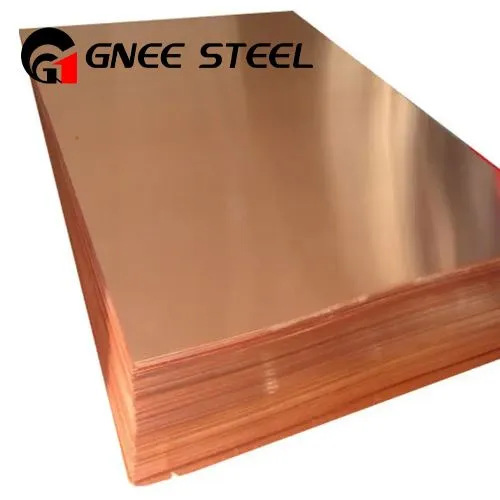

Copper Nickel Phaj
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Copper Nickel Sheet kuj tseem siv rau hauv hydraulic tubing thiab nres tubing. Lub Cupronickel Sheet tuaj yeem pom muaj nyob rau hauv cov khoom tseem ceeb xws li dej hiav txwv txias, cov dej tua hluav taws, thiab lwm yam. Raws li lawv qhia tau zoo ntawm qhov kub thiab txias, cov Copper Nickel Alloy Sheet kuj yog ib qho tseem ceeb ntawm cov cua kub exchangers thiab condensers. Lawv tuaj yeem pom nyob rau hauv cov twj tso kua mis dej hiav txwv thiab ntau yam valve.
Lub hardness ntawm Cupro Nickel Phaj yog tsawg dua li cov hlau tsis muaj hlau, uas txhais tau tias lawv hloov tau ntau dua. Ib qho yooj yim tsim cov ntawv thiab flares nrog Cupro Nickel Sheet rau kev kho, thiab tsis zoo li cov hlau tsis zoo, cov no yooj yim ua haujlwm nrog. Raws li Cupro Nickel Sheet tuaj yeem khoov thiab flared yooj yim, yog li lawv muaj peev xwm tsim tau lub foob nruj dua.
Copper Nickel Phaj specifications
Kub dov & Annealed Cupro Nickel Plate thiab Copper Nickel Sheet tsum nyob rau hauv Is Nrias teb
| Manufacturing Standard |
Cuni Phaj: ASTM B122, MILITARY MIL-C -15726 Cu-Ni Clad Phaj: ASTM B432 Copper Nickel Sawb: ASTM B122, MILITARY MIL-C -15726 |
| International Standards | JISH3100-2006, ASTMB75M-02, JISH3250-2006, GB/T1527-2006, JISH3300-2006, ASTMB152M-06, ASTMB187, ASTMB{{9 }}, GB/T5231-2001 thiab lwm yam. |
| Specifications | Thickness: 0.1mm ~ 200mm Dav: 10mm ~ 2500mm |
| Qhov ntau thiab tsawg hauv Tshuag | 1000 hli x 2000 hli, 1220 hli x 2440 hli, 1500 hli x 3000 hli, 2000 hli x 2000 hli, 2000 hli x 4000 hli |
| Ntev | 10mm ~ 12000mm, los yog raws li xav tau. |
| Nto | Mill, polished, ci, oiled, plaub hau kab, txhuam, iav, xuab zeb moj tej tawg, los yog raws li xav tau. |
| daim ntawv ntawm | Copper Nickel Phaj, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Phaj, Rolling Sheet, Flat Sheet, Rolling Phaj, Flat Shim, Blank (Valk), kub dov, txias dov, annealed, soft annealed, descaled, sheared, tread phaj, Checker Plate |
| Npaj khoom |
Copper Nickel Phaj: khoom siv 3/16" [5.00 hli] thiab tshaj hauv thickness thiab tshaj 10" [250 mm] dav; Copper Nickel Sheet: cov khoom hauv qab 3/16" [5.00 hli] hauv thickness thiab 24" [600 mm] thiab tshaj qhov dav; Copper Nickel Sawb: Cov khoom siv txias txias hauv qab 3/16" [5.00 hli] hauv thickness thiab qis dua 24" [600 mm] dav. Copper Nickel Clad Phaj: Copper Nickel Clad Phaj yog ib daim hlau sib xyaw ua los ntawm kev sib txuas Copper Nickel phaj, thiab lwm yam. |
Cov khoom uas tooj liab nickel phaj muaj
- Lawv yog cov resistant rau seawater corrosion thiab biofouling.
- Txawm nyob rau ntawm qhov kub siab dua, lawv tiv cov chlorides ntawm pitting, kev nyuaj siab corrosion cracking, thiab crevice corrosion.
- Lawv muaj cov thermal conductivity zoo.
- Lawv muaj ductility siab.
- Lawv muaj peev xwm tswj tau lawv cov khoom ntawm qhov kub thiab txias.
- Lawv muaj cov khoom siv tshuaj tua kab mob thiab yog li tuaj yeem siv rau hauv kev kho mob.
Ntim & Shipping
Cim npe nrov: tooj liab nickel phaj, Tuam Tshoj tooj liab npib tsib xee phaj lwm tus neeg
