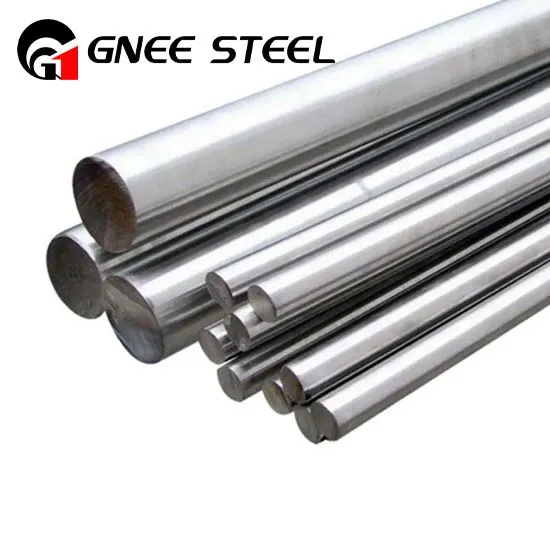

GH 2132 alloy

Cov khoom tseem ceeb ntawm GH2132 alloy yog li ntawm 54-58% npib tsib xee (Ni), 19-22% chromium (Cr), 12-15% tungsten (W), 4-6% molybdenum (Mo ), 3-4.5% titanium (Ti), 1-2% aluminium (Al), thiab lwm yam.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

GH2132 (GH132) siab kub alloy yog Fe-25Ni-15Cr raws li kub kub alloy, uas yog comprehensively ntxiv dag zog los ntawm kev ntxiv molybdenum, titanium, txhuas, vanadium thiab kab boron. Nws muaj zog yield zog, kav ntev thiab creep zog hauv qab 650 degree, zoo ua plasticity thiab txaus siab vuam kev ua tau zoo. Nws yog qhov tsim nyog rau kev tsim cov khoom kub hnyav load-cov kabmob ntawm cov tshuab dav hlau uas ua haujlwm ntev dua 650 degree, xws li turbine disks, xovxwm disks, rotor hniav thiab fasteners.

chemical muaj pes tsawg leeg:

Hom	C	Cr	Hauv	Mo	Al	Ntawm	Fe
hwv 2132	Tsawg dua lossis sib npaug rau 0.08	13.5-16.0	24.0-27.0	1.0-1.5	Tsawg dua lossis sib npaug rau 0.40	1.75-2.35	Nyob twj ywm
	B	IN	Mn	Thiab	p	S	Nrog
	0.001-0.01	0.1-0.5	1.0-2.0	Tsawg dua los yog sib npaug rau 1.0	Tsawg dua lossis sib npaug rau 0.03	Tsawg dua lossis sib npaug rau 0.02	Tsawg dua lossis sib npaug rau 0.25

Mechanical zog:

Kev ua haujlwm	tensile zog	Yield zog	Elongation	Brinell hardness
	σb/MPa (20 degree)	σp0.2/MPa	s5 /%	HBS

Solid solution effect	930	---	20	255-321

nickel super alloy

Cov yam ntxwv tseem ceeb ntawm GH2132 alloy yog:

1. Cov hlau muaj qhov zoo forgeability, nrog rau forging cua sov ntawm 1140 degree thiab qhov kawg forging kub ntawm 900 degree.
2. Qhov nruab nrab grain loj ntawm cov alloy yog ze ze rau qhov degree ntawm deformation thiab qhov kawg forging kub ntawm forging.
3. Cov alloy muaj qhov ua tau zoo ntawm kev vuam zoo. Lub alloy yog welded nyob rau hauv ib tug khoom tov lub xeev thiab laus kho tom qab vuam.

Cov ntawv thov ntawm GH2132 suav nrog:

Nws yog cov khoom siv hlau nrog kub siab zog thiab kub oxidation tsis kam

1. Siv dav hauv kev tsim cov tshuab dav hlau thiab cov khoom siv roj turbine, xws li turbine blades, afterburners, fasteners, thiab lwm yam.

2. Kuj dav siv hauv tsheb cav

Cov piv txwv ntawm kev siv:Kub kub bearing qhov chaw ntawm lub tshuab dav hlau uas ua haujlwm ntev ntawm 650 degree, xws li turbine impellers, thiab lwm yam.

Ntim & Shipping

ni superalloy

Cim npe nrov: gh2132 alloy, Tuam Tshoj gh2132 alloy lwm tus neeg
