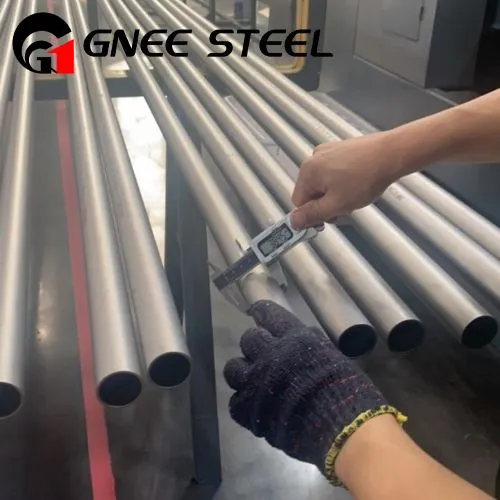

Nickel 200 Welded yeeb nkab

Nickel 200 welded kav kuj muaj cov cuab yeej zoo heev, suav nrog lub zog tensile siab thiab yoog raws. Qhov kev sib xyaw ua ke ntawm lub zog thiab kev ua kom yooj yim no tso cai rau cov kav dej tuaj yeem tiv taus kev kub ntxhov thiab tiv thaiv deformation, ua rau lawv txhim khu kev qha rau kev siv nyob rau hauv qhov xav tau ib puag ncig.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Nickel 200welded kav muaj ntau yam khoom tseem ceeb thiab cov yam ntxwv uas ua rau lawv tsim nyog rau ntau yam kev siv. Nickel 200, tseem hu ua Alloy 200, yog nickel-tooj liab alloy nrog tshwj xeeb corrosion kuj. Nws tiv taus ntau yam corrosive ib puag ncig, suav nrog dej hiav txwv, acidic daws, thiab alkaline xov xwm. Qhov kev tiv thaiv corrosion no ua rau Nickel 200 welded kav zoo tagnrho rau kev siv nyob rau hauv marine ib puag ncig, tshuaj ua cov nroj tsuag, thiab roj thiab roj industries.

Qib sib npaug rau Nickel 200 Welded Pipes

STANDARD	WERKSTOFF NR.	UNS	JIS	EN	BS	GOST	AFNOR
Nickel 200	2.4066	N02200	NWS 2200	ib 99.2	NA 11	НП-2	N-100M

Chemical Composition Ntawm Nickel Alloy 200 Pipes

Cu	Ni	Fe	Mn	C	S	Si
0.25 max	99.0 feeb	0.4 max	0.35 max	0.15 max	0.01 max	0.1 max

Mechanical Properties For Alloy 200 Tubes

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
8.89g 3	1370 degree (2550 degree F)	Psi – 1,15, 000, MPa – 790	Psi – 52, 000, MPa – 355	40 %

Nta ntawm Nickel Alloy 200 Welded Pipes

Nickel 200 Vuam Qws yog qhov tshwj xeeb vim tias lawv zoo heev tiv thaiv corrosion, txawm nyob rau hauv ib puag ncig corrosive heev. Lawv muaj kev ruaj khov, ntev ntev, thiab tuaj yeem tiv taus qhov kub thiab txias, ua rau lawv zoo tagnrho rau kev siv tshuaj thiab petrochemical kev lag luam. Cov kav dej welded muaj nyob rau hauv ntau qhov ntev, tuab, thiab txoj kab uas hla, raws li qhov xav tau ntawm cov neeg siv khoom. Alloy 20 Welded Pipes, Hastelloy C276 Welded Pipes thiab ntau qib ntxiv kuj muaj.

Daim ntawv thov ntawm Alloy 200 Welded Pipes

Nickel 200 welded kav pom lawv cov ntawv thov hauv ntau qhov kev lag luam, suav nrog petrochemical, aerospace, thiab marine industries. Lawv kuj tseem muaj txiaj ntsig zoo hauv kev tsim cov khoom siv hluav taws xob, cov roj refineries, acid ntau lawm, thiab cov khoom siv hluav taws xob. Cov kav dej welded feem ntau yog siv rau hauv kev thauj cov kua corrosive heev, tshuaj, thiab gasses.

Cov txheej txheem vuam rau Nickel 200 Welded Tube

Lub Nickel 200 welded kav yog tsim los ntawm vuam ob ntu ntawm cov kav dej. Cov txheej txheem vuam cuam tshuam feem ntau yog roj tungsten arc vuam, tseem hu ua TIG vuam. Thaum lub sij hawm vuam txheej txheem, ob lub kav dej tau koom ua ke nrog cov khoom siv nickel muab tub lim, tso cai rau kev ruaj ntseg thiab txhim khu kev qha. Nws yog ib qho tseem ceeb los xaiv txoj cai muab tub lim hlau rau vuam vim qhov no ua rau lub zog tag nrho ntawm cov yeeb nkab welded.

Cov txiaj ntsig ntawm Kev Siv Nickel Alloy 200 Welded Tubes

Nickel 200 welded kav muaj ntau yam txiaj ntsig dua lwm hom welded kav. Lawv yog cov tsis tshua muaj zog, ductile, thiab xeb-resistant, ua rau lawv ib tug zoo kev daws teeb meem rau ntau yam kev lag luam lub hom phiaj. Lawv xav tau kev saib xyuas tsawg kawg nkaus thiab muaj lub neej ntev, uas txhais tau tias yuav txuag tau nyiaj ntau dhau sijhawm.
