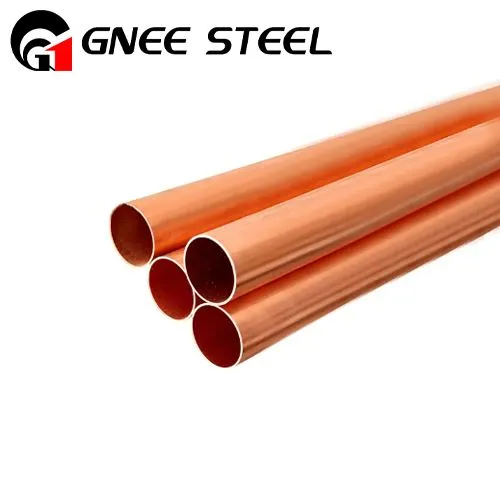

Copper Nickel 70/30 Welded Yeeb Nkab

Copper Nickel, tseem hu ua cupro npib tsib xee los yog CuNi, tau ua pov thawj tias tiv taus dej hiav txwv, dej brine, organic compounds, ntsev, diluted non-oxidizing acids, thiab ntau dua. Vim nws ua tiav kev tiv thaiv rau cov kab mob hauv hiav txwv xws li barnacles, Copper Nickel tubing feem ntau siv hauv cov kav dej hiav txwv.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Cov txheej txheem vuam ua lub luag haujlwm tseem ceeb hauv kev txiav txim siab qhov ua tau zoo thiab ua haujlwm ntev ntawm Copper Nickel 70/30 welded yeeb nkab. Ntau yam yuav tsum tau xav txog thaum vuamTooj Nickel 70/30los xyuas kom meej nws txoj kev ntseeg tau ntev. Ib qho tseem ceeb tshaj plaws yog xaiv cov txheej txheem vuam tsim nyog thiab cov khoom siv tshwj xeeb tsim rau cov hlau no. Cov txheej txheem vuam tsis raug lossis cov khoom siv tsis zoo tuaj yeem ua rau muaj teeb meem xws li txo qis kev tiv thaiv corrosion, ua rau muaj kev cuam tshuam rau kev ntxhov siab corrosion, thiab kev cuam tshuam cov khoom siv kho tshuab.

Qib sib npaug rau Copper Nickel 70/30 Welded Yeeb Nkab

STANDARD	WERKSTOFF NR.	UNS
Cu-Ni 70/30	2.0882	C71500

Tshuaj muaj pes tsawg leeg ntawm tooj liab Nickel 70/30 Pipes

Qib	Cu	Pb	Mn	Fe	Zn	Ni
70/30 Cu-Ni	65.0 feeb	05 max	1 0 max	0.4-1.0	1 max	29 – 33

Mechanical Properties Rau Copper Nickel 70/30 Tube

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
0.323 lb/in3 ntawm 68 F	2260 F	50000 psi	20000 psi	30 %

copper nickel alloy pipe

Qhov zoo ntawm tooj liab npib tsib xee 70/30 Welded yeeb nkab nyob rau hauv ntau yam lag luam

Copper Nickel 70/30 Welded Pipe muaj ntau qhov zoo dua lwm cov ntaub ntawv, ua rau nws xaiv thawj zaug hauv ntau yam lag luam. Ib qho txiaj ntsig tseem ceeb yog nws cov kev tiv thaiv corrosion zoo heev, tshwj xeeb tshaj yog nyob rau hauv marine ib puag ncig thiab cov xov xwm corrosive heev. 70% tooj liab cov ntsiab lus muab nws zoo heev tiv thaiv dej hiav txwv, dej brackish, thiab ntau yam tshuaj tov, ua rau nws zoo tagnrho rau kev siv xws li offshore roj thiab roj platforms, desalination nroj tsuag, thiab shipbuilding.

Lwm qhov zoo dua yog nws lub zog siab thiab kav ntev. Copper Nickel 70/30 Welded Yeeb Nkab muaj cov khoom siv zoo, lub zog tensile siab, thiab yoog raws. Qhov kev sib xyaw ua ke ntawm lub zog thiab kev hloov pauv no ua rau nws tsim nyog rau cov ntawv thov uas xav tau cov kav dej txhim khu kev qha los tiv thaiv kev kub ntxhov, kub hloov pauv, thiab kev ntxhov siab txhua yam. Copper Nickel 70/30 Welded Yeeb Nkab kuj nthuav tawm zoo heev tiv thaiv biofouling thiab microbial corrosion.
