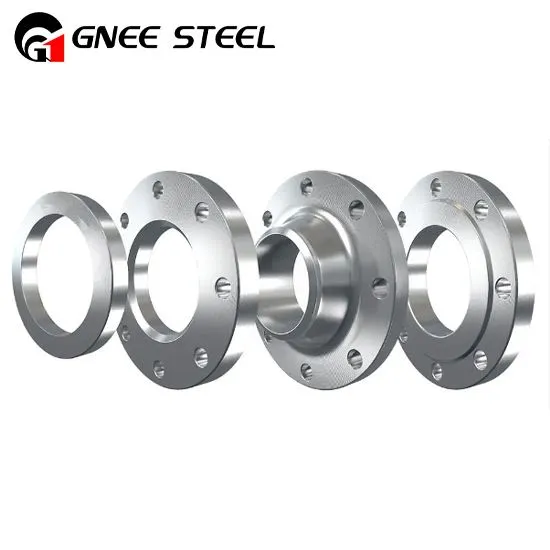

Nickel 201 Flanges yog qhov tseem ceeb ntawm kev sib txuas ntawm cov kav dej. Cov flanges no tau muab rau cov neeg siv khoom los ntawm cov ntu tshwj xeeb ntawm kev lag luam xws li cov ntawv zeb, cov khoom qab zib, kev lag luam chiv, breweries, petrochemical nroj tsuag, fabrication units, thiab lwm yam. Rau kev tsim cov flanges, peb siv cov npib tsib xee ntshiab nrog cov pa roj carbon tsawg uas ua rau cov flanges ua haujlwm txawm tias qhov kub ntau yam tsis muaj kev hloov pauv.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Nickel 201 flanges yog cov khoom tseem ceeb hauv kev lag luam uas muaj kev tiv thaiv corrosion, kub ruaj khov, thiab kav ntev yog qhov tseem ceeb. Lawv cov muaj pes tsawg leeg thiab cov khoom ua rau lawv tsim nyog rau cov kev sib tw ib puag ncig, ua rau muaj kev ntseeg siab thiab siv tau ntev ntawm cov kav dej thiab cov khoom siv.
Nickel 201 flanges thiab Yeeb Nkab Flanges thiab Hlau Yeeb Nkab Fittings muaj nyob rau hauv ntau hom, xws li slip-on flanges, Weld Neck Flanges, socket weld flanges, Dig muag Flanges, thiab ceg tawv flanges. Qhov kev xaiv ntawm flange hom yog nyob ntawm cov kev cai tshwj xeeb ntawm daim ntawv thov.

Txuj	ASTM B564, ASME SB564
Qhov ntev	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, thiab lwm yam.
Loj	1/2 "(15 NB) rau 48" (1200NB)
Txuj	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, thiab lwm yam.
Chav kawm/siab	150 #, 300 #, 600 #, 900 #, 1500 #, 2500 #, PN6, PN10, PN16, PN25, PN40, PN64 thiab lwm yam.
Flange Lub ntsej muag hom	Lub ntsej muag Flate (FF), tsa ntsej muag (RF), Ntiv nplhaib hom Joint (RTJ)
Daim ntawv	Slip on flanges, Qhov (socket) weld flanges, Forged flanges, dig muag flanges, Vuam caj dab flange, Ntiv nplhaib hom flange, Spectacle dig muag flange, Txo flange, Threaded / Screwed flange, Orifice Flanges, Tus nplaig thiab Groove flange, Ntev weld caj dab flange, , ASME B16.5 flange

Qib sib npaug ntawm ASME SB564 Nickel 201 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel alloy 201	2.4068	N02201	SIB 2201	NA 12	НП-2	-	LC-Ni 99

Nickel 201 Flanges Cov Khoom Siv Tshuaj

Qib	C	Mn	Si	S	Cu	Fe	Ni
Nickel alloy 201	0.02 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 feeb

Nickel Alloy 201 Flanges Mechanical Properties

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
8,9g 3	1446 degree (2635 degree F)	Psi - 67000, MPa - 462	Psi - 21500, MPa - 148	45 %
