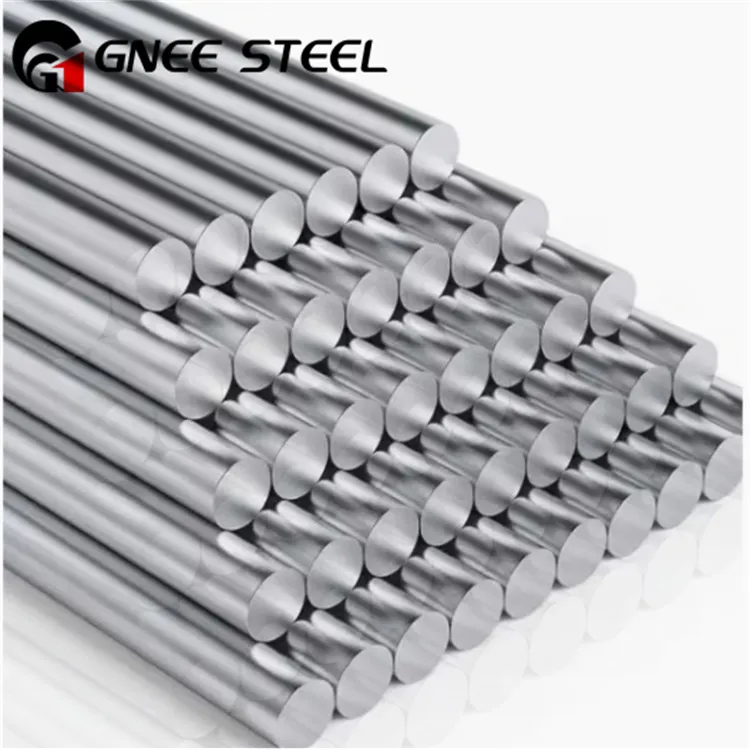

Monel R-405 Round Bar
Monel alloy R-405 Round Bar
Monel R-405 Bar

Monel R-405 Round Bar

Monel R-405 Round Bar yog ib qho yooj yim-rau-machine nickel-tooj liab alloy. Nws cov tshuaj muaj pes tsawg leeg yog tib yam li Monel 400. Tab sis nws txhim kho lub machining zog ntawm cov hlau.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Monel R-405 Round Bar yog npib tsib xee-tooj hlau alloy tsim los rau superior corrosion kuj thiab txhim kho machinability. Nws yog ib qho txawv ntawm Monel 400, nrog rau kev sib ntxiv ntawm cov sulfur los txhim kho nws cov machinability thaum tswj kev ua tau zoo hauv qhov chaw hnyav.

Monel R-405 Round Bar Chemical Composition, %

Ni	Cu	Fe	S	Mn	C	Si
63.0 feeb	28.0-34.0	2.5 max	.025-.060	2 0 max	.3 max	.5 max

Monel R-405 Round BarsMechanical Properties

Qhov xwm txheej	Tensile (ksi)	.2% Yield (ksi)	Elongation%	Hardness Brinell (3000 kg)	Hardness Rockwell B
Annealed	70-85	25-40	50-35	110-140	60-76
Kub-Tiav	75-90	35-60	45-30	130-170	72-86
Cold-Drawn, As-Drawn	85-115	50-105	35-15	160-245	85-23C

Monel R-405 Round Barsmuaj nyob rau hauv ntau qhov ntev thiab qhov chaw tiav, muab kev yooj yim rau ntau yam kev siv uas xav tau ob qho tib si machinability thiab cov yam ntxwv ua haujlwm siab.
