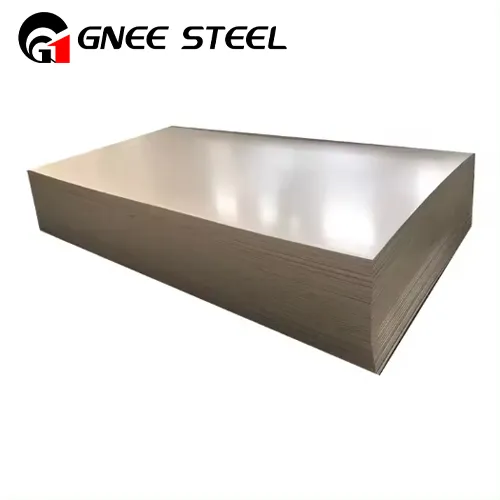

Monel Alloy 450 Daim Ntawv

Monel 450 yog nickel-tooj liab alloy nrog zoo heev corrosion kuj, lub zog thiab toughness, thiab weldability.Nws muaj superior txhua yam khoom nyob rau hauv ob qho tib si kub thiab kub, thiab nws tshwj xeeb muaj pes tsawg leeg ua rau nws haum rau ntau yam kev siv nyob rau hauv roj thiab roj. kev lag luam.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Monel 450 los yog Alloy 450, tsev 70-30 ua ke ntawm tooj liab thiab npib tsib xee, feem. Qhov no txawv ntawm Monel alloy tsev neeg los nrog superior weldability. Cov hlau muaj kev ncaj ncees tiv thaiv bio-fouling lossis corrosion hauv dej hiav txwv.

Nrog rau qhov no alloy, koj kuj tau nkag mus rau siab qaug zog zog nrog rau optimum thermal conductivity. Monel 450 yog siv ntau heev rau kev tsim cov condenser daim hlau, seawater condensers, evaporator tubes, distiller raj, dej ntsev kav, nrog rau cov hlab rau tshav kub pauv.

Chemical Properties:

Nickel (%)	Tooj liab (%)	Hlau (%)	Manganese (%)	Sulfur (%)	Zinc (%)	Lead (%)	Phosphorous (%)
29. {1}} to 33. {3}}	Tshuav	{{0}}.4 rau 1.0	1.0 Ntau tshaj	0.020 Qhov siab tshaj plaws	1.0 Ntau tshaj	0.05 Qhov siab tshaj plaws	0.020 Qhov siab tshaj plaws

Mechanical Properties:

Yield zog (tsawg kawg)		Tensile zog (yam tsawg kawg nkaus)		Elongation (tsawg kawg)
KSI	MPA	KSI	MPA	Feem pua
24	165	56	385	46

Lub cev muaj zog:

Qhov ntom	Thermal conductivity	Melting Range		Hluav taws xob Resistivity
G/CM³	W/M.K	degree	degree F	µΩ·m
8.91	29.4	1170-1240 Nws	2140-2260 Nws	412

Monel Alloy 450

Monel 450 Daim Ntawv Nta

Superior Weldability:Muab nws cov kev sib xyaw ua ke ntawm 70% tooj liab thiab 30% npib tsib xee, nws muab qhov zoo tshaj plaws weldability.

Enhanced Fatigue Strength:Lub Monel 450 alloy tuaj yeem daws qhov kev ntxhov siab nyob rau hauv cov xwm txheej tshwj xeeb, muab nws lub zog qaug zog zoo heev.

Corrosion Resistance:Monel 450 muaj kev tiv thaiv zoo heev tiv thaiv alkali, dej hiav txwv, organic tebchaw, nruab nrab kev daws teeb meem, thiab lwm yam.

Cov qhab nia xaiv tau

1-Monel 400: Rov qab los ntawm kev ua haujlwm zoo heev rau corrosion thiab lub zog siab, cov nickel-tooj liab alloy yog nrov tshaj plaws ntawm tag nrho cov Monel alloys.

2-lus 401: Nws yog tooj liab-nickel-based alloy uas yog tsim los rau kev siv hluav taws xob tshwj xeeb. Ntxiv rau, Monel 401 alloy tsev muaj qhov coefficient qis hauv cov ntsiab lus ntawm qhov kub thiab txias.

3-Monel R-405:Qhov no dawb-machining variant ntawm Alloy 400 lub tsev tswj cov sulfur uas ua raws li cov chips ua haujlwm tau zoo thaum ua haujlwm.

4-Monel K-500:Qhov no alloy ua los ntawm npib tsib xee thiab tooj liab yog nag lossis daus-hardened. Nws kuj los nrog tsawg permeability, uas tsis yog sib nqus thaum khaws cia hauv qab -150^oF.
