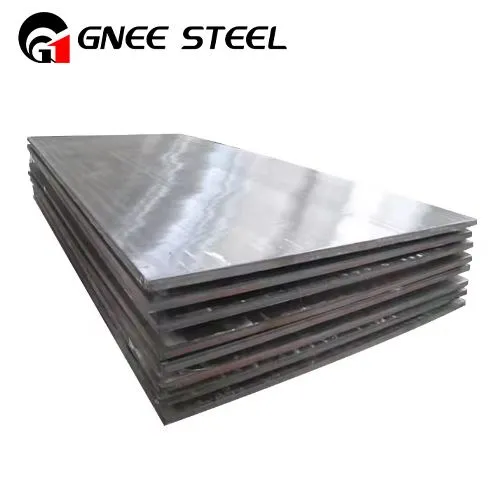

Monel 400 N04400 2.4360 Alloy Sheet
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Monel Alloy 400 yog npib tsib xee-tooj liab (kwv yees 67% Ni - 23% Cu) cov tshuaj tiv thaiv kom muaj zog alloy. Lub alloy yog tus cwj pwm los ntawm lub zog nruab nrab, zoo weldability, zoo dav corrosion kuj thiab toughness. Nws muaj txiaj ntsig zoo ntawm qhov kub txog li 1000 degree F (538 degree). Alloy 400 muaj kev tiv thaiv zoo heev rau kev ntws nrawm nrawm lossis dej hiav txwv qhov twg cavitation thiab yaig kuj yog qhov tsim nyog. Nws yog tshwj xeeb tshaj yog tiv taus hydrochloric thiab hydrofluoric acids thaum lawv de-aerated. Alloy 400 yog sib nqus me ntsis ntawm chav tsev kub.
ASTM Cov Lus Qhia
| cev Smls | Cov yeeb nkab Welded | Tube Smls | Daim Ntawv / Phaj | Bar | Forging | Haum |
| B165 | B725 | B163 | B127 | B164 | B564 | B366 |
Tshuaj muaj pes tsawg leeg
| Lub npe lag luam |
ASTM / AISI Alloy hom |
UNS | %Cu | % Fe | %Mn | %Si | %Ni |
| Monel 400 | B 127, B 164 | N04400 | 28–34 | 2.5 max | 2 0 max | 0.5 max | 63 nqi |
Mechanical Properties Yam tsawg kawg ntawm Chav Kub Kub Tensile Cov Ntaub Ntawv
| Yam khoom | Qhov xwm txheej | Tensile (ksi) | .2% Yield (ksi) | Elongation (%) | Hardness (HRB) |
| Qws & Bar | Annealed | 75-90 | 25-50 | 60-35 | 60-80 |
| Qws & Bar | Txias-Drawn Stress Relieved | 84-120 | 55-100 | 40-22 | 85-20 HRC |
| Phaj | Annealed | 70-85 | 28-50 | 50-35 | 60-76 |
| Daim ntawv | Annealed | 70-85 | 30-45 | 45-35 | 65-80 |
| Tube & Yeeb Nkab Seamless | Annealed | 70-85 | 25-45 | 50-35 | 75 max * |
- Marine engineering
- Cov khoom siv tshuaj thiab hydrocarbon ua
- Gasoline thiab dej qab tank
- Cov roj av Crude
- De-aerating cua sov
- Boiler pub dej rhaub thiab lwm yam kub exchangers
- Valves, twj, shafts, fittings, thiab fasteners
- Industrial tshav kub exchangers
- Chlorinated kuab tshuaj
- Crude roj distillation yees
- Resistant mus rau seawater thiab chav nyob ntawm qhov kub thiab txias
- Kev tiv thaiv zoo heev rau cov dej ntws nrawm nrawm los yog dej hiav txwv
- Kev tiv thaiv zoo heev rau kev ntxhov siab corrosion tawg hauv feem ntau cov dej tsis qab
- Tshwj xeeb tshaj yog tiv taus hydrochloric thiab hydrofluoric acids thaum lawv de-aerated
- Muaj qee qhov kev tiv thaiv rau hydrochloric thiab sulfuric acids ntawm qhov kub thiab txias, tab sis tsis tshua muaj cov khoom xaiv rau cov kua qaub.
- Kev tiv thaiv zoo rau nruab nrab thiab alkaline ntsev
- Kev tiv thaiv rau chloride induced stress corrosion cracking
- Cov cuab yeej zoo txhua yam los ntawm sub-zero kub txog 1020 degree F
- Siab tiv taus alkalis
Monel 2.4360 Daim Ntawv Thov
Ntim & Shipping
Peb lub Hoobkas
Cov duab Exhibition
Cov neeg tuaj xyuas Case
GNEE Teams
Cim npe nrov: monel 400 n04400 2.4360 alloy ntawv, Tuam Tshoj monel 400 n04400 2.4360 alloy ntawv
