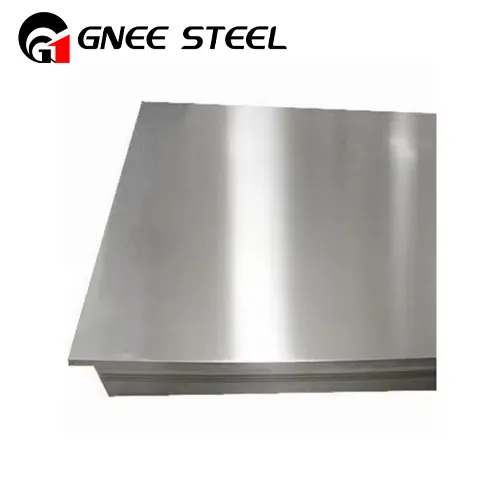

Monel Alloy UNS K500 Daim Ntawv
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Monel alloy K-500 (UNS N05500 / W.Nr. 2.4375) yog ib qho nickel-tooj liab alloy uas sib xyaw ua ke zoo heev corrosion kuj ntawmMONEL alloy 400nrog rau ntxiv qhov zoo ntawm ntau zog thiab hardness. Cov khoom muaj zog ntxiv yog tau los ntawm kev ntxiv txhuas thiab titanium rau lub hauv paus npib tsib xee-tooj liab, thiab los ntawm cua sov raws li kev tswj xyuas kom cov submicroscopic hais txog Ni3 (Ti, Al) yog precipitated thoob plaws hauv matrix. Cov txheej txheem thermal siv los ua nag lossis daus feem ntau hu ua hnub nyoog hardening lossis aging. Cov ntawv thov rau MONEL alloy K-500 cov khoom yog chains thiab cables, fasteners thiab springs rau marine kev pab cuam; twj tso kua mis thiab valve Cheebtsam rau kev ua tshuaj; kws kho mob hniav thiab scrapers rau kev ua cov ntaub so ntswg hauv ntawv; roj zoo laum dab tshos thiab cov twj paj nruag, twj tso kua mis shafts thiab impellers, uas tsis yog-magnetic vaj tse, kev nyab xeeb nqa thiab li qub rau roj thiab roj; thiab sensors thiab lwm yam khoom siv hluav taws xob.
Mechanical Properties:
| Txias ua hauj lwm & nag los kho | Txias ua hauj lwm, tshuaj kho & nag los kho | Kub ua hauj lwm & nag los kho | Kub ua hauj lwm, tshuaj kho & nag los kho | ||||||
| Bars mus txog thiab suav nrog 25mm seem loj lossis txoj kab uas hla | Cov kab nruab nrab ntawm 25-55mm seem loj lossis txoj kab uas hla | Bars mus txog thiab suav nrog 25mm seem loj lossis txoj kab uas hla | Cov kab nruab nrab ntawm 25-55mm seem loj lossis txoj kab uas hla | Bars mus txog thiab suav nrog 110mm seem loj lossis txoj kab uas hla | Cov kab nruab nrab ntawm 110-300mm seem loj lossis txoj kab uas hla | Bars mus txog thiab suav nrog 25mm seem loj lossis txoj kab uas hla | Cov kab nruab nrab ntawm 25-110mm seem loj lossis txoj kab uas hla | Cov kab nruab nrab ntawm 110-300mm seem loj lossis txoj kab uas hla | |
| 0.2% Pov Thawj Kev Nyuaj Siab | 760 (110) | 690 (100) | 620 (89.9) | 550 (79.8) | 724 (105) | 724 (105) | 500 (72.5) | 585 (84.8) | 500 (72.5) |
| N / hli2(ksi) | |||||||||
| Tensile zog, N / mm2(ksi) | 1000 (145) | 970 (140.6) | 900 (130.5) | 830 (120) | 965 (140) | 965 (140) | 830 (120.3) | 900 (130.5) | 830 (120.3) |
| Elongation, 5.65√S0thiab 4D | 14% | 16% | 20% | 20% | 20% | 20% | 15% | 20% | 15% |
| Hardness (Rockwell C) | 27-35 | 27-35 | 27-35 | 27-35 | 27-35 | 27-35 | 27-35 | 27-35 | 27-35 |
| Lub zog cuam tshuam (-29oC los yog qis dua) | 27J av (20J min) | 27J av (20J min) | 27J av (20J min) | 27J av (20J min) | 27J av (20J min) | 27J av (20J min) | 27J av (20J min) | 27J av (20J min) | 27J av (20J min) |
Monel Alloy K500 Cov txiaj ntsig
Cov hlau no muab kev tiv thaiv zoo heev hauv ntau qhov chaw xws li dej hiav txwv, hydrofluoric acid, sulfuric acid thiab alkalis. Nws tau raug pom tias muaj kev tiv thaiv rau ib puag ncig qaub-gas thiab tau teev nyob rau hauv NACE MR1075. Kev sib xyaw ua ke ntawm cov nqi qis heev hauv cov dej hiav txwv siab tshaj plaws thiab lub zog siab ua rau nws zoo rau marine shafts hauv dej hiav txwv stagnant los yog qeeb qeeb, fouling yuav tshwm sim tom qab pitting tab sis qhov pitting no qeeb tom qab kev tawm tsam sai sai. .
Alloy K500 yog ua kom zoo los ntawm Electro Slag Refining (ESR), kom ntseeg tau tias cov khoom siv tau zoo tshaj plaws thiab zoo tshaj plaws. Qhov no muaj zog alloy purity txwv qhov ua tau ntawm cov tawv tsis yog xim hlau suav nrog uas tuaj yeem ua rau kev ua haujlwm nyuaj, sijhawm ua haujlwm thiab qhov kawg ua tsis tiav. Nws kuj muaj qhov permeability tsawg thiab yog nonmagnetic rau qhov kub thiab txias li -101 degree (-150 degree F).
