Monel 400
Daim phiaj
Bars
Cov kav dej (seamless kav)
Cov yeeb nkab fittings
Lub luj tshib, tees, txiv mis, rov khoov, lub kaus mom, crosses, reducers, couplings, thiab lwm yam.
Coils
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Monel 400 piav qhia
GNEE Monel 400
Monel 400 (tseem hu ua Phyweld 400 thiab Nicorros LC) yog npib tsib xee - tooj liab alloy paub txog nws zoo heev corrosion kuj nyob rau hauv ntau qhov chaw. Nws muaj kwv yees li 63-70% npib tsib xee thiab 28-34% tooj liab, nrog rau me me ntawm hlau, manganese, carbon, thiab silicon. Nws muaj cov qauv ib-theem, tsim ib qho kev daws teeb meem ntawm nickel thiab tooj liab. Cov khoom no nthuav tawm lub zog tseem ceeb, tiv thaiv corrosion, ductility, thiab thermal conductivity.
Cov khoom no ua rau Monel 400 muaj txiaj ntsig rau ntau lub lag luam. Qee qhov kev siv Monel 400 suav nrog cov khoom siv tshuaj lom neeg, cov chaw ua haujlwm hydrocarbon, cov khoom siv hauv hiav txwv, thiab cov khoom siv hluav taws xob. Nws cov corrosion kuj ua rau nws haum rau ib puag ncig raug dej hiav txwv, alkaline daws, thiab organic acids, sulfuric acid, hydrofluoric acid, los yog phosphoric acid. Tsis tas li ntawd, nws cov thermal conductivity zoo heev ua rau nws muaj kev xaiv zoo rau kev siv hluav taws xob hloov pauv.
Monel 400 Muaj Cov Duab

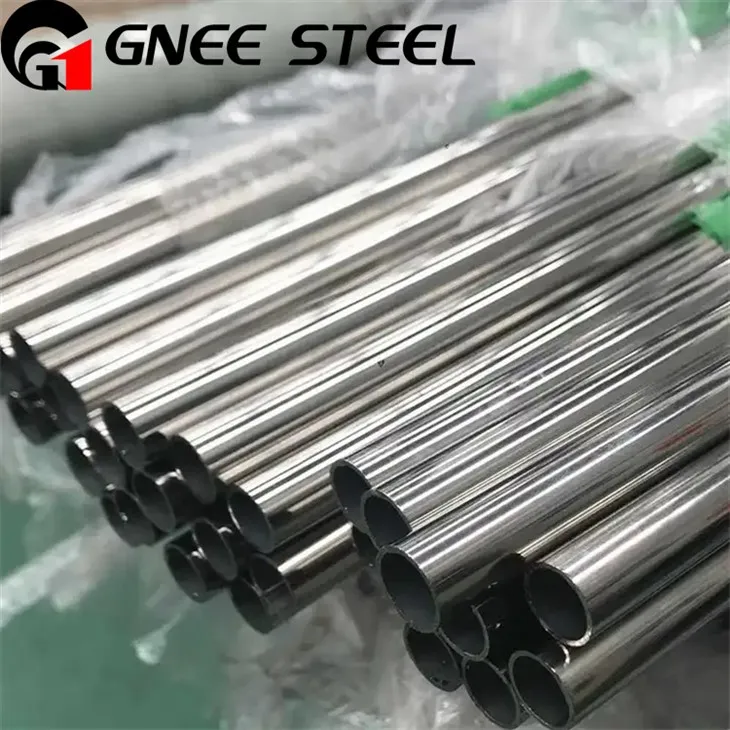

Monel 400 Seamless Yeeb Nkab
Monel 400 Phaj
Monel 400 Bar
Monel 400 Pipe Fitting
Monel 400 Standards thiab Specifications
| cev Smls | Tube Smls | Daim Ntawv / Phaj | Bar | Forging | Haum | |||
|---|---|---|---|---|---|---|---|---|
|
B165 |
B163 |
B127 |
B164 |
B564 |
B366 |
Incoloy Alloy 800/800H/800HTSpecification
Monel 400 Chemical Composition
| C | Mn | S | Si | Ni | Cu | Fe |
|---|---|---|---|---|---|---|
|
30 max |
max 2.00 Nws |
024 max |
.50 max |
6 3,0mn |
28.0-34.0 |
2.50 max |
ALLOY 400 Mechanical thiab lub cev muaj zog
| Khoom | -180 degree | -130 degree | -70 degree | 21.1°C dej | 9 3,3de | 204.4 hli | 315.6 | 371.1 degree | 426.7 degree | 5 37,8d | 6 48,9d | 982 degree |
| Qhov kawg Tensile Strength / MPa | - | - | - | 450 | 420 | 390 | 380 | 370 | 370 | - | - | - |
| 0.2% Tawm Zog / MPa | - | - | - | 175 | 150 | 135 | 130 | 130 | 130 | - | - | - |
| Elongation% | - | - | - | 51 | 44 | 43 | 47 | - | 48 | 38 | - | - |
| Coefficient ntawm Thermal Expansion /µm / m degree | 11.1 | 11.4 | 12.1 | - | 14.2 | 15.2 | 15.7 | 16.1 | - | 16.3 | 16.6 | 18.1 |
| Thermal conductivity / kcal / (hr.m. degree) | 14.19 | 15.65 | 17.03 | 18.92 | 20.64 | 23.13 | 25.89 | 28.72 | - | 31.39 | 33.88 | - |
Monel 400 Alloy Manufacturing Txheej txheem
Gnee Steel Monel 400 Alloy Manufacturing Txheej txheem
Monel 400 feem ntau yog tsim los ntawm cov txheej txheem alloying. Nws yog ib qho tseem ceeb uas yuav tsum nco ntsoov tias cov txheej txheem tsim khoom tshwj xeeb thiab cov txheej txheem yuav txawv ntawm cov tuam txhab sib txawv, tab sis lawv feem ntau ua raws li cov kauj ruam yooj yim no:
Melting:Cov ntaub ntawv tseem ceeb (nickel thiab tooj liab) yog melted nyob rau hauv ib tug siab - qhov cub kub.
Alloying:Tom qab cov ntaub ntawv tau yaj lawm, lawv tau sib tov kom huv si kom ntseeg tau tias muaj kev sib xyaw ntawm npib tsib xee thiab tooj liab. Nyob rau theem no, alloying ntsiab xws li hlau, manganese, carbon, thiab silicon yog precisely ntxiv kom ua tau raws li qhov yuav tsum tau muaj pes tsawg leeg ntawm Monel 400 alloy.
Casting:Cov molten alloy yog ces muab pov rau hauv ingots los yog billets. Cov kauj ruam no tso cai rau cov hlau ua kom khov thiab tsim ib qho duab tshwj xeeb, uas yog tom qab ntawd ua tiav rau hauv cov khoom kawg uas xav tau.
Kev tsim:Cov cam khwb cia hlau tau dhau los ua ntau yam txheej txheem, xws li kub dov lossis txias dov, forging, lossis extrusion. Cov txheej txheem no tsim cov hlau rau hauv cov ntawv xav tau, xws li daim hlau, tuav, profiles, xov hlau, lossis cov raj.
Kev kho cua sov:Tom qab tsim, lub Monel 400 alloy yuav undergo annealing los yog tempering. Cov kev kho cua sov no ua kom zoo dua cov khoom siv kho tshuab, suav nrog lub zog, hardness, thiab ductility.
Ua tiav:Cov kauj ruam kawg yog kev ua kom tiav. Qhov no yuav suav nrog kev txiav, machining, kev kho saum npoo, thiab kev tshuaj xyuas zoo kom ntseeg tau tias Monel 400 cov khoom ua tau raws li qhov xav tau tshwj xeeb thiab cov qauv zoo.
Corrosion{0}}Resistant Monel Alloy 400
Alloy 400 yog zoo tiv thaiv chloride ion kev nyuaj siab corrosion cracking nyob rau hauv ib puag ncig raug. Feem ntau, nws pom zoo heev corrosion kuj nyob rau hauv txo ib puag ncig tab sis tsis zoo kuj nyob rau hauv oxidizing tej yam kev mob. Nws tsis haum rau oxidizing acids xws li nitric thiab nitrous acid. Txawm li cas los xij, nws tiv taus rau feem ntau alkalis, ntsev, dej, zaub mov, organic tshuaj, thiab atmospheric ib puag ncig ntawm ob chav tsev thiab siab kub.
Cov nickel alloy no muaj kev cuam tshuam rau corrosion nyob rau hauv sulfur-muaj gases saum toj no kwv yees li 700℃F, thiab molten sulfur kuj yuav corrode cov alloy ntawm kub siab tshaj li ntawm 500℃F.
Monel Alloy 400 muaj kwv yees tib yam corrosion kuj zoo li cov npib tsib xee ntshiab, tab sis vim nws cov khoom siv tau zoo, nws muaj kev ua haujlwm siab tshaj plaws thiab kub ntawm tus nqi qis.
monel 400 Processing Properties
Ua haujlwm kub / txias ua haujlwm
Alloy 400 yog yooj yim kub lossis txias ua haujlwm. Qhov kub ua haujlwm kub yog 1700℃F txog 2150℃F. Qhov zoo tshaj plaws ua haujlwm kub yog kwv yees li 2000℃F. Los ntawm kev tswj cov kub thiab / lossis txias ua haujlwm zoo thiab xaiv cov txheej txheem kho cua sov kom tsim nyog, cov khoom tiav nrog ntau yam khoom siv tau zoo tuaj yeem tau txais.
Machineability
Cov hlau no tuaj yeem ua tiav ntawm qhov nrawm nrawm uas siv cov cuab yeej siv tshuab uas muaj ntau. Txias-kos los yog txias-txoj kev ntxhov siab-cov khoom siv tau yooj yim feem ntau pom zoo rau kev ua kom zoo tshaj plaws thiab ua kom zoo tshaj plaws.
Koom nrog
Cov hlau no tuaj yeem welded, brazed, lossis soldered. Gas welding los yog arc vuam txoj kev yuav siv tau. Thaum cov roj vuam, cov nplaim yuav tsum ze li nruab nrab (me ntsis txo), thiab vuam yuav tsum tau ua kom tiav sai sai kom tsis txhob rov vuam dua.
Kev kho cua sov
Ob leeg txias- ua haujlwm thiab kub- ua haujlwm Alloy 400 tuaj yeem ua rau muaj kev ntxhov siab lossis kev ntxhov siab- tso siab kom tau txais qhov xav tau kev sib xyaw ua ke ntawm lub zog thiab ductility thiab txo qis kev cuam tshuam thaum lub sijhawm ua haujlwm machining tom ntej.
Annealing
Cua sov yuav tsum tau ua nyob rau hauv ib tug sulfur -dawb txo qhov chaw. Qhov kub ntawm qhov kub yog 1300 txog 1800 ° F, tab sis 1600 txog 1800 ° F feem ntau yog siv. Txo qhov kub thiab txias (piv txwv li, 1300 txog 1500℃F) tso cai rau lub sij hawm tuav ntev kom txo cov nplej coarsening.
Kev ntxhov siab
Kev ntxhov siab txo qis kev ntxhov siab yam tsis ua kom rov ua dua tshiab ntawm cov qauv siv lead ua. Kev daws kev ntxhov siab yog ua tiav los ntawm kev ua kom sov sov- ua haujlwm lossis txias - cov khoom ua haujlwm rau 1000/1050℃F thiab tuav rau 1 mus rau 2 teev.
Kev siv ntawm Monel 400
Marine engineering
Cov khoom siv tshuaj thiab hydrocarbon ua
Gasoline thiab dej tshiab cia tank
Crude roj distillers
Deeating cua sov
Boiler feedwater rhaub thiab lwm yam kub exchangers
Valves, twj, shafts, yeeb nkab fittings, thiab fasteners
Industrial tshav kub exchangers
Chlorinated kuab tshuaj
Crude roj distillation kab
Kev tshuaj xyuas thiab ntim ntawm Monel 400 khoom
Kev Xeem Ntawm Monel 400
Gnee Steel muaj npe nrov rau nws qhov zoo meej qhov tseeb. Tag nrho cov khoom raug kuaj nruj ua ntej xa zaub mov. Peb ua ob qho kev puas tsuaj thiab tsis yog - kev sim ua kom puas tsuaj rau txhua yam khoom.
Eddy kev sim tam sim no
Hydrostatic siab tsom xam
Pitting corrosion tiv thaiv kev kuaj
Lub zog tsim kev lag luam
Kev txheeb xyuas cov khoom muaj pes tsawg leeg
Ntim Ntawm Monel 400 Khoom
Gnee Steel siv txoj kev ntim khoom zoo tshaj plaws thiab zoo tshaj plaws rau txhua hom kev thauj mus los. Peb txoj kev ntim khoom muaj xws li:
Ntoo crates
Ntoo pallets
Shrink wrap packing
Cardboard thawv
Ntoo crates
Hais txog Gnee Steel
Gnee Steel tshwj xeeb hauv kev tsim thiab muag ntawm ntau yam nickel-raws li alloys, suav nrog Nickel 201, Nickel 202, Hastelloy C-276, Hastelloy C-22, Hastelloy B, Hastelloy C-4, Inconel Alloy 600, Inconel 625, Inconel 71, Inconel Alloy 800, Incoloy 800H / HT, Incoloy 825, Monel Alloy 400, Monel K500, thiab kub kub alloys. Gnee Steel cov khoom siv dav siv hauv aerospace, tshuaj, hluav taws xob, tsheb, thiab kev siv hluav taws xob nuclear. Peb kuj muab cov kev daws teeb meem customized alloy raws li cov neeg siv khoom xav tau. Rau cov lus nug txog tus nqi alloy lossis customized alloy kev daws teeb meem, thov hu rau peb rau kev tsocai ntawmss@gneesteel.com.
FAQ
Q: Monel 400 khoom yog dab tsi?
A: Monel 400 yog npib tsib xee- tooj liab alloy uas tiv taus corrosion los ntawm dej hiav txwv thiab siab - qhov kub thiab txias, nrog rau cov ntsev ntsev thiab cov tshuaj alkaline. Monel 400 yog npib tsib xee- tooj liab alloy uas pom zoo corrosion kuj nyob rau hauv ntau yam xov xwm.
Q: Puas Monel 400 alloy undergo ua hauj lwm hardening?
A: MONEL npib tsib xee- tooj liab alloy 400 (UNS N04400/W.Nr. 2.4360 thiab 2.4361) yog ib qho khoom siv-tshuaj alloy uas tsuas tuaj yeem ua kom tawv los ntawm kev ua haujlwm txias. Nws nthuav tawm lub zog siab thiab toughness nyob rau hauv ntau qhov kub thiab txias thiab muaj kev tiv thaiv corrosion zoo rau ntau qhov chaw corrosive.
Q: Puas yog Monel 400 alloy nyuaj rau tshuab?
A: Machining Monel 400 alloy yog cov txheej txheem tseem ceeb hauv ntau qhov kev lag luam, tab sis nws yog qhov nyuaj heev vim nws lub zog siab, kev ua haujlwm muaj zog- tawv tawv, thiab thermal conductivity tsis zoo.
