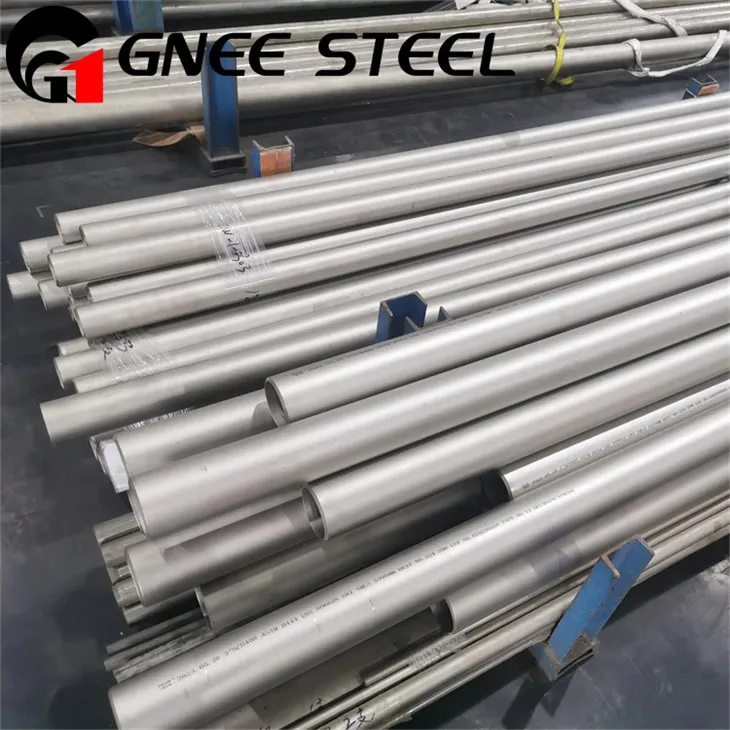

Monel Alloy 400 Hloov Kev Seamless Tube
Npib tsib xee 400 alloy Erw Tubing: 1/2 "NB - 24" NB
Npib tsib xee 400 Seamless Tubing: 1/2 "NB - 16" NB
Monel 2.4360 EFW Tubing: 6 "NB - 100" NB
Npib tsib xee 400 alloy tubing: 1/8 "NB - 30" NB
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Monel Alloy 400 Hloov Kev Seamless Tubekev piav txog
Gnee Monel Alloy 400 Hloov Lub raj Seatamless
Monel 400 alloy hlab yog lub nickel - tooj liab alloy flued rau lawv zoo heev corrosion xws li seawater, acids, thiab cov hauv paus. Lawv muaj zog thiab ruaj, tswj cov khoom siv zoo hauv subzero kub thiab kub kub (txog li 1000℃F lossis 537 degree). Cov ntawv thov tseem ceeb suav nrog kev ua tshuaj thiab roj thiab roj, tshwj xeeb hauv cov chaw ua haujlwm marine.
Monel Alloy 400 Leeg Cov Lus Qhia Tshwj Xeeb
| Qhov tuab | 0.3 hli - 50 hli, Sch10, Sch10, Sch 40, Sche, Sch XXS, SCH Xs |
| Txheej hauv lub taub | 6.00 mm od li 914.4 mm od, ntau thiab tsawg txog 24 "nb |
| Ntaus | Seamless / Erw / Welded / Fabricated / CDW |
| Puab | Puag ncig cov hlab, cov raj kab plaub, cov leeg roj, "u" duab, lauj kaub ncuav mog qab zib chev, hlab ntsha hydraulic |
| Qho ntev | Ib leeg random, ob npaug random & xav tau ntev |
| Qhov kawg | Dawb kawg, beveled kawg, tsuj las. |
Monel Alloy 400 Leeg Cov Lus Qhia Tshwj Xeeb
Monel aleloy 400 leeg leeg muaj pes tsawg leeg
| Lub ntsiab | Alloy 400 |
| C | 0.30 Max |
| Mn | 2.00 Max |
| Si | 0.50 max |
| S | 0.024 max |
| CU | 28.00 – 34.00 |
| Zaum fe | 2.000 Max |
| Ni | 63.00 min |
Monel 400 tubing neeg kho tshuab & cov khoom siv lub cev
| Lub ntsiab | Monel alleoy 400 |
| Ceev | 8.8 G / cm3 |
| Melting taw tes | 1350℃(2460℃f) |
| Lub zog tensile | PSI - 80,000, MPa - 550 |
| Tawm Zog (0.2% offset) | PSI - 35,000, MPA - 240 |
| Elongation | 40 % |
Nickel 400 Tub Yees Ntau Yam
| Phab ntsa | Qhov ntau thiab tsawg (OD) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Monel 400 Tub Ntsim Siab Kev Ntsuas
| Raj Od (hauv.) |
Phab Ntsa Thickness Ntawm Raj (Nti) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Ua haujlwm siab (PSIG) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Monel Alloy 400 Tubes Cov Kev Kho Mob Thawj
Gnee Steel muab plaub txoj kev kho mob rau Monel Alloy 400 leeg: Pickling, Daim iav Polishing, Polishing, thiab Sandblasting.
Monel Alloy 400 Tubes Txheej Txheem Ntau Lawm
Gnee Steel muab cov kev kho mob cua sov hauv qab no rau monel aleloy 400 leeg: Kev Siv, Kev daws teeb meem. Tsis tas li ntawd, GNEE steel kuj tseem muab cov kub ua haujlwm kub thiab ua haujlwm txias, uas yog kub dov thiab txias kos duab.
Monel Alloy 400 leeg ntim
Txhawm rau kom ua kom muaj kev nyab xeeb ntawm koj cov khoom, peb yuav muab kev paub zoo, ib puag ncig zoo, yooj yim thiab siv cov khoom siv ntim yooj yim.
Hais Txog Gnee Steel
GNee steel tshwj xeeb hauv kev tsim khoom thiab muag ntawm ntau qhov nickel {}}}}}}}}}}}}}}}}}} 800H / HT, Incoloy 825, Monel Alloy 400, Monel K500, thiab High-kub alloys. Gnee Steel cov khoom yog dav siv nyob rau hauv Aerospace, tshuaj lom neeg, hluav taws xob hluav taws xob, siv hluav taws xob, thiab lub zog hluav taws xob, thiab lub zog nuclear zog, thiab lub zog nuclear lub zog. Peb tseem muab cov kev cai ua kom haum rau cov neeg siv khoom xav tau. Rau alloy tus nqi nug cov lus nug lossis customized alloy cov kev daws teeb meem, thov hu rau peb rau ib nqe lusss@gneesteel.com.
Cim npe nrov: Monel Alloy 400 Hloov Lub raj Seamless, Tuam Tshoj Monel Alloy 400 Hloov Lub raj Seamless
