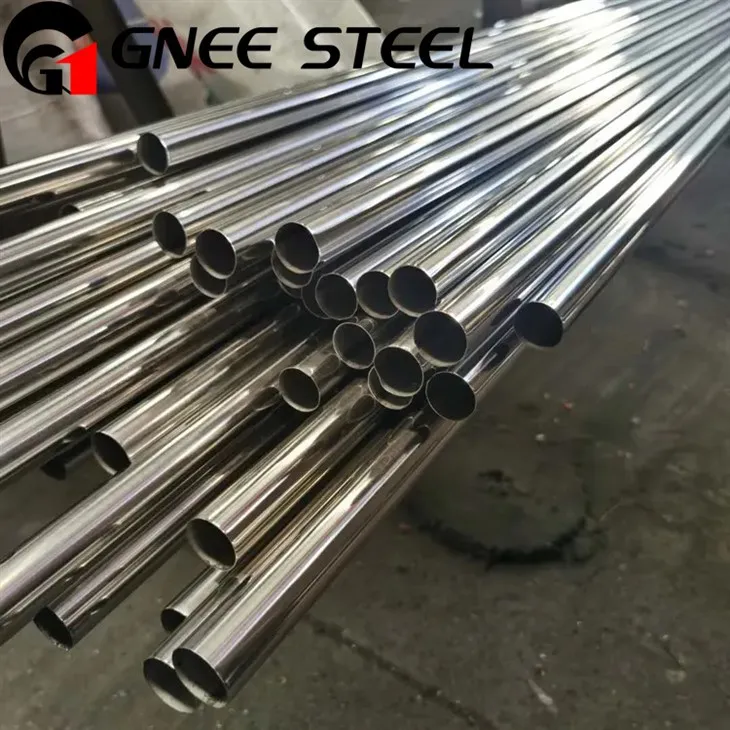

Monel 400 K500 Alloy Yeeb Nkab
Alloy 400 ERW Tube: 1/2 "NB - 16" NB
Alloy Monel 400 Seamless Tube: 1/2 "NB - 24" NB
Nickel 400 EFW Tube: 6 "NB - 100" NB
Monel 400 uns tsis n04400 Tube: 1/8 "NB rau 30" NB hauv
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Monel 400 K500 Alloy Yeeb Nkab Thov
400 alloy xaim video
Tsis Yog N04400 YEEB NKAB OTER CROIL & PHEEJ YEEB
| Hom | Tawm Diam | Phab Ntsa Thickness | Qho ntev |
|---|---|---|---|
| NB ntau thiab tsawg (hauv Tshuag) | 1/8" ~ 8" | SCH 5 / SCH 10 / sCH 40 / SCH 80 / SCH 160 | Upto 6 meters |
| Monel 400 Seamless Yeeb Nkab (Qhov Ntau thiab tsawg) | 5. {{0 hli ~ 203.2mm | Xws li qhov xav tau | Upto 6 meters |
| Monel 400 Welded Yeeb Nkab (Hauv Tshuag + Qhov Ntau thiab tsawg) | 5. {{0 hli ~ 1219.2mm | 1. {{0 ~ 15. 0 hli | Upto 6 meters |
MONEEL K500 YEEB YEEB NKAB
| Hom | Tawm Diam | Phab Ntsa Thickness | Qho ntev |
|---|---|---|---|
| NB ntau thiab tsawg (hauv Tshuag) | 1/8" ~ 8" | SCH 5 / SCH 10 / sCH 40 / SCH 80 / SCH 160 | Upto 6 meters |
| Monel K500 Seamless Yeeb Nkab (Qhov Ntau thiab tsawg) | 5. {{0 hli ~ 203.2mm | Xws li qhov xav tau | Upto 6 meters |
| Monel K500 Welded Yeeb Nkab (Hauv Tshuag + Qhov Ntau thiab tsawg) | 5. {{0 hli ~ 1219.2mm | 1. {{0 ~ 15. 0 hli | Upto 6 meters |
Monel 400 K500 Alloy Yeeb Tshwj Xeeb
Tshuaj lom neeg muaj pes tsawg leeg tsis tau ntawm N04400
| Lub ntsiab | Cov ntsiab lus,% |
|---|---|
| Npib tsib xee [ni] | Ntau dua los yog sib npaug rau 63. 0 |
| Tooj liab [CU] | 28.0~34.0 |
| Hlau [Fe] | Tsawg dua los yog sib npaug rau 2.50 |
| Manganese [mn] | Tsawg dua los yog sib npaug rau 2. 00 |
| Carbon [c] | Tsawg dua los yog sib npaug rau 0. 30 |
| Silicon [Si] | Tsawg dua los yog sib npaug rau 0. 50 |
| Sulphur [s] | Tsawg dua li lossis sib npaug rau 0. 024 |
Monel Alloy K500 Yeeb Nkab Tshuaj Muaj Zog
| Teem nqi | C | Mn | Si | S | CU | Zaum fe | Ni | Cr |
| Monel K500 | 0. 25 Max | 1.000 Max | 0. 50 Max | 0. 010max | 27. {{{{{}} - 33. {00 max | 0.5 – 2 | 63. {00 Min | – |
K500 Alloy Yeeb Nkab
Monel400 alloy yog cov khoom siv tau zoo zog tag nrho. Nws cov qib alloy yog tsis ntseeg N04400, muaj npe raws li "Astm-SAE Unified Number". Piv nrog cov ustenitic stainless hlau 1Cr18NINI99, Monel400 Alloy muaj qhov sib txawv ntawm lub cev thiab cov kws kho tshuab. Lub alloy muaj hluav taws xob zoo thiab thermal ua haujlwm, nws tawm tsam yog li 70% ntawm 16% siab dua 1cr18ni99.
Monel K500 Alloy yog ib qho tshiab alloy nrog cov khoom siv corrosion zoo thiab muaj zog ntxiv rau Monel 400. Qhov no muaj dispersed kev kho cua sov Lub koom haum qauv yog ib-theem Austenite qauv thiab yog precipitated los ntawm dispersed ni3 (al, ti) phasipitation theem.
Cov khoom siv tshuab ntawm Nickel alloy 400 (kub-rolled) tau tshwm sim hauv cov lus hauv qab no.
| Cov Khoom Siv | Me me | Muaj huab tais |
|---|---|---|
| Lub zog tensile (annealed) | 517-655 mpa | 75-95 ksi |
| Yield zog (annealed) | 276-517 mpa | 40-75 ksi |
| Elongation thaum so (anealed) | 30-45% | 30-45% |
| Brinell hardness | 125-215 | 125-215 |
| Rockwell b hardness | 70-96 | 70-96 |
Gnee Pab Pawg Hoobkas Ib puag ncig
Monel 400 K500 Yeeb Nkab
Gnee pab pawg tau koom rau hauv Necc Exhition
Gnee pab pawg tau koom rau hauv Necc Exhition
Gnee Daim Ntawv Pov Thawj Khoom
Gnee Daim Ntawv Pov Thawj Khoom
Monel 400 K500 Alloy Yeeb Loj thiab Cov Khoom Siv
Monel 400 alloy yeeb nkab loj thiab cov khoom siv
Neeg Cov Ntaub Ntawv
Cov qhua tuaj noj mov
Cov FAQ
Q: Ntev npaum li cas yog koj lub sijhawm khoom plig?
A: Feem ntau nws yog {5-10 hnub yog tias cov khoom nyob hauv Tshuag. Los yog yog tias cov khoom lag luam tsis nyob hauv Tshuag, nws yog {15-20 hnub, nyob ntawm seb muaj nuj nqis.
Q: Koj puas muab cov qauv? Puas yog nws pub dawb lossis ntxiv?
A: Yog, peb tuaj yeem muab cov qauv rau dawb yam tsis tau them tus nqi thauj khoom.
Q: Koj cov nqe lus them nqi dab tsi?
A: them nyiaj<=1000USD, 50% in advance. Payment >{{0 {0}}} usd, 30% T / T ua ntej, tshuav nyiaj li cas ua ntej ua zaub mov xa tuaj. los yog sib ceg
Q: Txog cov khoom lag luam ntawm 400 K500 Alloy Yeeb Nkab?
A: Vim tias kev hloov pauv ntawm cov khoom siv roj nyoos cov nqi, cov nqi sib txawv nyob rau ntau lub sijhawm.
