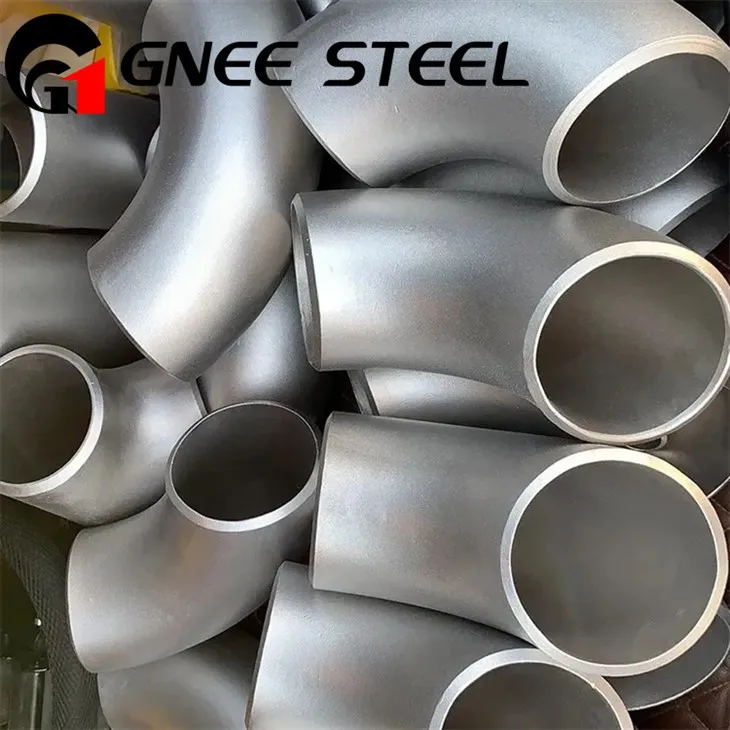

Inconel Alloy 600 Yeeb Nkab Fittings
Inconel 600 tus yeeb nkab muaj ntau lub ntsiab lus melting ntau (1354 degree- 1413 uas yog qhov zoo rau kev siv nyob rau hauv cov kev siv kub zoo xws li cua sov.
1354-1413 Qib
2470-2575 Qib F
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Inconel Alloy 600 Yeeb Nkab Fittingskev piav txog
ASTM B514 Incoloy 800H Welded Yeeb Nkab Rau Lub Zog Generation Kev Lag Luam
Gnee Astm B 514 Tsis Yog No8800 Petrochemical Kev Lag Luam Welded Yeeb Nkab
Inconel 600 pipe fittings are widely used in demanding applications due to their excellent high-temperature strength and corrosion resistance in both oxidizing and reducing environments. Key factors include their composition (nickel-chromium-iron alloy), their performance in extreme temperatures, and the variety of styles available, including elbows, tees, and reducers. Thaum Inconel 600 cov yeeb nkab fittings tsis ruaj khov, lawv cov chaw tsim khoom yuav tsum tau ua haujlwm tshwj xeeb thiab tshaj tawm {{weld annealing kom tiv thaiv kev ntxhov siab thiab corrosion.
Inconel 600 Cov Yeeb Nkab Fittings Cov Lus Qhia
| Kev qhia tshwj xeeb | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
|---|---|
| Qho loj | Ansi / ASME B16.9, B16.28, MSS - sp-43. |
| Qhov loj | ½ "NB rau 24" NB hauv SCH 10S, 40s, 80s, 160s, XXS. |
| Qhov tuab | SCH SCH 10, 20, 40, STD, 60, 80, xs, 100, 120, 140 sch xxs |
| Hom | Seamless / Erw / Welded / Fabricated |
| Cov menyuam kawm qib | Inconel 600 - tsis muaj N06600, Inconel 601 - tsis yog N06601 Inconel 625 - tsis yog N06625 Incoloy 800 - UN tsis muaj N08800, Incoloy 800H / HT - UN tsis ntseeg N08810, Incoloy 825 - tsis muaj N08825 |
Inconel alloy 600 cov yeeb nkab fittings specification
Tshuaj lom neeg muaj pes tsawg leeg ntawm inconel 600 fittings
| Lub ntsiab | Muaj pes tsawg leeg (%) |
|---|---|
| Ni | 72.0 min |
| Cr | 14.0 – 17.0 |
| Zaum fe | 6.0 – 10.0 |
| C | 0.15 Max |
| Mn | 1.00 Max |
| Si | 0.50 max |
| S | 0.015 max |
| CU | 0.50 max |
Inconel 600 Yeeb Nkab Fittings Cov Khoom Siv Neeg Kho Tshuab
| Ntiag tug | Tus nqi |
|---|---|
| Lub zog tensile | 550 MPa (min) |
| Tawm Zog (0.2% offset) | 240 MPa (min) |
| Elongation | 30% (min) |
| Kev nyuaj | Rockwell B 85 (max) |
| Kev Ua Haujlwm Qhov Kub | Txog li 1093℃(2000℃f) |
Cov qhab nia sib npaug ntawm cov neeg siv N06600 fittings
| Lub hom phiaj | Werkstoff NR. | Tsis yog | JIS | Bs | Gost | Ib tug kaum | En |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | Na 13 | МНЖМц 28-2,5-1,5 | NC15fe11m | Nicr15fe |
Alloy 600 Fittings Nyhav Daim Duab
| Cov khoom lag luam thiab theoretical hnyav (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dn | Teem Sij Hawm 10 | Teem sijhawm 40s | Sijhawm 80s | ||||||
| 900 Luj tshib | 450 Luj tshib | Sib npaug zos | 900 Luj tshib | 450 Luj tshib | Sib npaug zos | 900 Luj tshib | 450 Luj tshib | Sib npaug zos | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Cov khoom lag luam thiab theoretical hnyav (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dn | Teem Sij Hawm 10 | Teem sijhawm 40s | Sijhawm 80s | ||||||
| Cong Reducer | ECC REDUCER | Txo Tee | Cong Reducer | ECC REDUCER | Txo Tee | Cong Reducer | ECC REDUCER | Txo Tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Qhov loj me ntawm ASME SB366 alloy 600 fittings
| Nominal cov yeeb nkab loj (nti) |
Sab Nraum Yeeb (nti) |
Deb Center kom kawg (nti) |
|
|---|---|---|---|
| 90o luj | 45o tshib | ||
| 1 | 1.315 | 1 1/2 | 7/8 |
| 1 1/4 | 1.660 | 1 7/8 | 1 |
| 1 1/2 | 1.900 | 2 1/4 | 1 1/8 |
| 2 | 2.375 | 3 | 1 3/8 |
| 2 1/2 | 2.875 | 3 3/4 | 1 3/4 |
| 3 | 3.5 | 4 1/2 | 2 |
| 3 1/2 | 4.0 | 5 1/4 | 2 1/4 |
| 4 | 4.5 | 6 | 2 1/2 |
| 5 | 5.563 | 7 1/2 | 3 1/8 |
| 6 | 6.625 | 9 | 3 3/4 |
| 8 | 8.625 | 12 | 5 |
| 10 | 10.750 | 15 | 6 1/4 |
Hom ntawm inconel 600 yeeb nkab fittings
Peb yog cov khoom lag luam, cov exporter, thiab stockist ntawm inconel 600 cov yeeb nkab fittings, muab ntau hom qib kawm thiab hom kev xav tau hauv ntiaj teb.
Inconel 600 Yeeb Nkab Fittings
600 inconel seamless yeeb nkab
Inconel tsis yog N06600, N06601 luj
600 inconel Taub Qab - weld Reducers
Inconel 600 Cov Kab Hlau Spromibutors
Inconel 600 u - Luj tshib Distributors
Inconel tsis muaj n 06600 45-℃tshib
DIN 2.4816, 2.4851 tus nqi tsis raug
Inconel 600 pob tw - weld Reducer spools
600 inconel ntev rauj vojvoog
ASTM B366 Inconel 600 Txo Cov Lus Quav
Inconel 600 Taub Hau -} weld yeeb nkab fittings
600 POWELL WELDED YEEB NKAB
Inconel 600 pob tw - weld tees
600 inconel Taub Qab - weld luj tshib
Inconel 600 Cov Yeeb Nkab Fittings
600 YEEB EV CAP DISTRIBUTORS
600 Inconel 90-degree ntev radius lub ntsuas phoo chaw tsim tshuaj paus
DIN 2.4856, 2.4668 Inconel Hla Tees
Inconel 600 Luv vojvoog lauj
600 Xaus Cap Distributor
ASME SB366 Inconel 600 Yeeb Nkab Fittings
Inconel Alloy 600 Yeeb Nkab Fittings Ntau Lawm
Gnee Steel muab cov kev kho mob cua sov hauv qab no rau inconel alloy 600 cov yeeb nkab fittings: Kev Siv, Kev daws + Kev Nyab Xeeb. Tsis tas li ntawd, GNEE steel kuj tseem muab cov kub ua haujlwm kub thiab ua haujlwm txias, uas yog kub dov thiab txias kos duab.
Cov ntawv thov ntawm inconel 600 fittings
Tshuaj lom neeg: siv nyob rau hauv kev tsim cov khoom siv (piping, li qub, thiab haus dej) siv hauv kev sib xyaw ua ke, siab {{}}}}}}}}}}}}}}}}}}}}}}} qhov chaw dej khov.
Aerospace kev lag luam: siv hauv kev tsim cov cav cov cav, dav hlau siv hluav taws xob, thiab cov pob zeb foob pob hluav taws. Qhov no alloy yog resistant rau siab pressures thiab yog siv nyob rau hauv kev tsim khoom ntawm cov uas yuav tsum muaj kev ruaj khov (xws li tshav kub thaiv).
Kev sib xyaw ua kom sov: siv nyob rau hauv kev tsim cov khoom sib xyaw kom sov, xws li fuffle cub hluav taws, rauv chav tsev, thiab rauv av. Nws yog cov khoom tseem ceeb rau high- kub kev kho mob (annealing thiab quenching).
Nuclear Cov Khoom Siv Hluav Taws Xob: vim nws oxidation tsis kam, nws yog qhov zoo tagnrho rau kev tsim cov khoom tawg, kub, thiab kev xeb ib puag ncig.
Cov Kev Siv Marine: Siv hauv kev tsim cov nkoj sib xyaw ua ke (li qub, nqus pa, kev tiv thaiv tshav kub, thiab lwm yam khoom muaj xeb.
Hais Txog Gnee Steel
GNee steel tshwj xeeb hauv kev tsim khoom thiab muag ntawm ntau qhov nickel {}}}}}}}}}}}}}}}}}} 800H / HT, Incoloy 825, Monel Alloy 400, Monel K500, thiab High-kub alloys. Gnee Steel cov khoom yog dav siv nyob rau hauv Aerospace, tshuaj lom neeg, hluav taws xob hluav taws xob, siv hluav taws xob, thiab lub zog hluav taws xob, thiab lub zog nuclear zog, thiab lub zog nuclear lub zog. Peb tseem muab cov kev cai ua kom haum rau cov neeg siv khoom xav tau. Rau alloy tus nqi nug cov lus nug lossis customized alloy cov kev daws teeb meem, thov hu rau peb rau ib nqe lusss@gneesteel.com.
