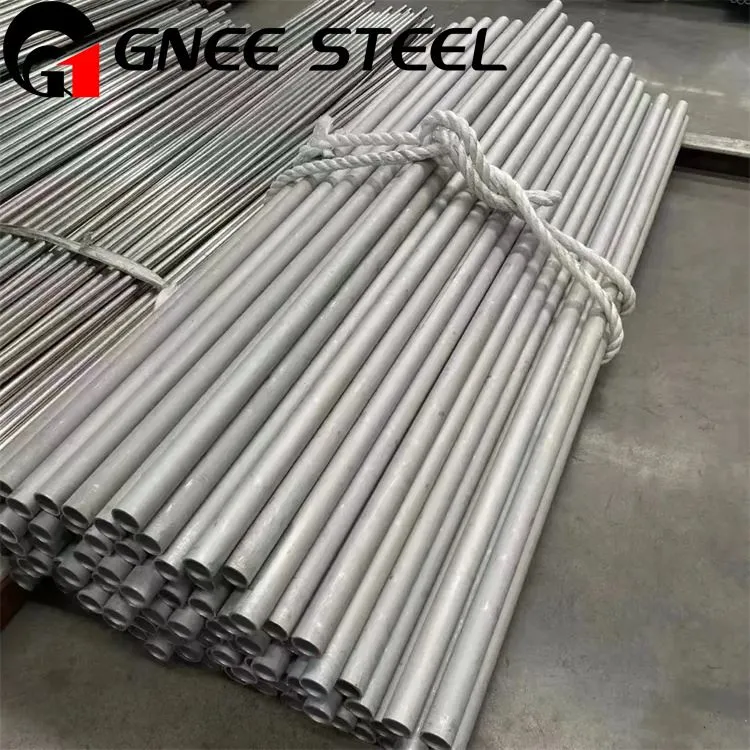

Inconel 600 Seamless Tube
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Inconel 600 Seamless Pipe piav qhia
Gnee Steelyog ib tug ua manufacturers thiab exporter ntawmInconel 600 tubing, muab siab -precision engineering daws teeb meem rau kev lag luam uas yuav tsum tau ua haujlwm nyob rau hauv siab - kub thiab corrosive ib puag ncig.Gnee Steeltau txais lub koob npe nrov rau nws cov thev naus laus zis thiab cov qauv nruj nruj, muab seamless thiab aLloy 600 Inconel 600 tubinguas ua tau raws li cov qauv thoob ntiaj teb siab tshaj plaws xws liASTM B163 thiab ASME SB516.
Gnee Steelcov khoom yog tsim los ntawm cov khoom siv siab -cov ntaub ntawv raw khoom tau ntawv pov thawj los ntawm ISO 9001: 2015, kom ntseeg tau tias zoo thiab sib xws.Gnee Steelmuab kev ua haujlwm siab -Inconel 600 tubingtsim nyog rau kev sib hloov cov khoom siv hluav taws xob, lossis kev cai- ua tubing kom ua tau raws li cov kev cai ntawm cov tshuaj corrosive hauv ib puag ncig kev teeb tsa tshwj xeeb.
GNEE Inconel 600 Seamless Yeeb Nkab
Inconel 600 tubing yog chromium-nickel alloy haum rau qhov kub txog li 2000℃F (1093 degree) thiab qis- qhov kub thiab txias ib puag ncig. Lub xub ntiag ntawm npib tsib xee muab kev tiv thaiv rau immersion corrosion thiab chloride siab corrosion, thaum lub xub ntiag ntawm chromium muab kev tiv thaiv rau me ntsis corrosion. Tsis tas li ntawd, Inconel 600 seamless tubing yog npib tsib xee -chromium alloy nrog zoo heev tiv taus kub kub, chloride siab corrosion, siab - dej huv corrosion, thiab dav corrosive corrosion. Cov lus qhia tshwj xeeb rau Inconel 600 seamless tubing suav nrog ASTM B163, B516 / ASME SB1, thiab lwm yam. Nws qhov tshwj xeeb qhov ntev kuj ua raws li cov qauv xws li ASTM, ASME, thiab API. Cov kev qhia tshwj xeeb no zoo ib yam li kev ua haujlwm ntawm Inconel 600 tubing.
Gnee Steel yog ib lub tuam txhab loj tshaj plaws hauv ntiaj teb thiab cov chaw muag khoom ntawm Inconel 600 tubing, thiab peb pom zoo kom cov hlau no vim nws cov corrosion kuj zoo heev, ntxiv rau nws cov kev tiv thaiv corrosion los ntawm ntau yam carbon -raws li thiab ntxhia sib tov.
Ntawm Gnee Steel, peb muab siab - zoo inconel 600 Tube nyob rau hauv ntau qhov ntau thiab tsawg thiab thicknesses, thiab muab kev cai txiav, kev kho deg, thiab kev xa khoom thoob ntiaj teb kom tau raws li koj qhov kev xav tau tshwj xeeb.
Inconel 600 Seamless Yeeb Nkab Specification
| ASTM Specification | ASTM B167 / ASME SB167, ASTM B163 / ASME SB163, ASTM B 517 / ASME SB517, ASTM B516 / ASME SB516 |
|---|---|
| International Specification |
WERKSTOFF Nr 2.4816, BS 3072-}3076 (NA14) DIN 17750, DIN 17742, DIN 17754, TÜV 305 AFNOR-NC 15 Fe, AMS 5580, ASTM B751 |
| Txuj | DTD, TOCT, JIS, SAE, ASME, EN, DIN, ASTM, AMS, AISI, GB, NF, DS |
| Welded Tube Loj | 6.35 hli rau 152 hli OD |
| Loj ntawm Seamless Yeeb Nkab | Phab ntsa thickness.: 0.05- 20 milimeter, 4 - 219 milimeter |
| Seamless Tube Loj | 3.35 hli rau 101.6 hli OD |
| Qhov loj ntawm Welded yeeb nkab | 5.0-1219.02 hli |
| Bwg & Swg | 18 Swg., 14 20 Swg., Swg. Swg., 12 16 Swg., 10 Swg. |
| qhov loj ntawm EFW cev | 5.0-1219.02 hli |
| Tubing phab ntsa thickness | 0.020 "-0.220", (kev cai phab ntsa thicknesses muaj) |
| Cov Txheej Txheem Yeeb Nkab | SCH 10 SCH 80 SCH 120 SCH 160 SCH 20 SCH 60 XXS SCH 80 SCH 5 SCH 30 SCH 40 SCH 40 SCH 10 TSI |
| Ntev | Txheem & Txiav ntev, Ib qho Random, Ob Chav Random Yeeb Nkab |
| Hom | Fabricated / ERW / CEW / Seamless / CDW // EFW / Welded / DOM Inconel 600 yeeb nkab |
| Xaus | Beveled kawg, Plain End, Screwed xaus, Treaded yeeb nkab |
| Daim ntawv | Hydraulic, Rectangular, Coiled, Square, Hollow, Round, Ncaj Yeeb Nkab / raj, "U" Shape, Pan Cake Coils, Boiler, LSAWetc. |
| Ua kom tiav | AP (Annealed & Pickled), BA (Cim & Annealed), NO.1, 2B, Polished, MF, HL, NO.4, Daim iav tiav, BA, 8K thiab lwm yam |
Inconel 600 Seamless Yeeb Nkab Specification
ASTM B163 N06600 Tubing Chemical Composition
| Qib | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | max 1.00 Nws | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 Nws | 14.00 – 17.00 |
Nickel Alloy 600 Tubes Mechanical Properties
| Element | Qhov ntom | Melting Point | Tensile zog | Yield zog (0.2% Offset) | Elongation |
| Inconel 600 | 8,47g 3 | 1413℃(2580℃F) | Psi - 95,000, MPa - 655 | Psi - 45,000, MPa - 310 | 40 % |
2.4816 Alloy 600 Tube sib npaug qib
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCV 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Inconel 600 Seamless Pipe Technical Data Sheet
Inconel 600 Seamless Tube Loj
Cov lus no muab cov qauv loj ntawm Inconel 600 seamless raj, suav nrog OD, phab ntsa thickness, thiab ntev kev xaiv siv thoob plaws kev lag luam.
| Phab ntsa | Qhov ntau thiab tsawg (OD) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Inconel 600 Pipe Pressure Rating
| Qib |
Qhov siab tshaj plaws hauv siab, ksi |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100℃F | 200℃F | 300℃F | 400℃F | 500℃F | 600℃F | 700℃F | Cov lus pom | |||
| N06600 :1 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | B167 OD>5 "thiab ua haujlwm kub | ||
| N06600 :2 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | B167 OS<=5" and hotworked + OD>5" thiab ua haujlwm txias | ||
| N06600 :3 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | B167 OS<=5" and coldworked | ||
Inconel 600 Tubes Phab Ntsa Thickness
| Hom Inconel 600 Tube | Txoj kab uas hla (OD) | Phab ntsa thickness | Ntev |
|---|---|---|---|
| NB Loj (hauv Tshuag) | 1/8" ~ 8" | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 TSI | Txog li 6 meters |
| Inconel 600 Seamless Tube (Kev Cai Loj) | 5.0mm ~ 203.2 hli | Raws li kev xav tau | Txog li 6 meters |
| Inconel 600 Welded Tube (hauv Tshuag + Kev Cai Loj) | 5.0mm ~ 1219.2 hli | 1.0 ~ 15.0 hli | Txog li 6 meters |
Alloy 600 Round Yeeb Nkab Kub Kev Kho Mob
Alloy 600 Round Yeeb Nkab Kub Kev Kho Mob
Nickel Alloy 600 Yeeb Nkab Kub
| Khoom | 1093 degree | 982 degree | 871 degree | 760 degree | 649 degree | 538 degree | 21 degree |
|---|---|---|---|---|---|---|---|
| Charpy Impact (V-notch /J) | - | 160 | 108.5 | 62.4 | 52.9 | 63.7 | 61 |
| Yield zog (0.2% / MPa) | - | 27.6 | 62 | 117.2 | 182.7 | 196.5 | 255.1 |
| Thermal Expansion Coefficient (µm/m⁰C) | 16.7 | - | 16.4 | 15.6 | 15.5 | 15.1 | - |
| Tensile zog (MPa) | - | 51.7 | 103.4 | 189.6 | 448.2 | 579.2 | 641.2 |
| Elasticity Modulus (x105 MPa) | 1.4 | - | 1.53 | 1.63 | 1.69 | 1.77 | 2.1 |
| Thermal conductivity / kcal / (hr.m. degree) | - | - | 23.8 | 19.3 | 21.3 | 19.6 | 12.8 |
Lub sijhawm xa khoom rau Inconel 600 Seamless Pipe nws txawv nyob ntawm qhov chaw
| Tus nqi hloov pauv 5% ntxiv | |
|---|---|
| Export rau | Lub sij hawm xa tuaj |
| UAE | 5 hnub |
| Qatar | 7 |
| Fabkis | 30 |
| Kuwait | 10 |
| Teb chaws USA | 40-60 |
| Saudi Arabia | 7 |
| Oman | 5 |
| Ltalis | 30 |
| Uk | 30 |
Inconel 600 Seamless Yeeb Nkab muaj nyob rau hauv Tshuag thiab muaj rau cov khoom xa tuaj tam sim kom tau raws li qhov xav tau ceev
Inconel 600 Seamless Tube Inconel 600 Seamless Tube
Alloy 600 Welded Tube
UNS N06600 Annealed Tube
Inconel Alloy 600 Square Tubing
Nickel Alloy 600 Exhaust Tubing
Werkstoff NR. 2.4816 Condenser Tubes
DIN 2.4816 Boiler Tube
UNS N06600 Siab Siab Tube
ASME SB 167 Nickel 600 Instrumentation Tube
Cov khoom thiab cov kev pabcuam muab los ntawm Gnee Steel
Daim ntawv thov ntawm Inconel 600 Seamless Yeeb Nkab
Aerospace: Jet engine Cheebtsam, roj turbine qhov chaw, foob pob ua ntxaij cav, thiab fasteners.
Roj thiab Roj: Downhole laum cov kav dej, cov khoom siv lub taub hau, cov li qub, thiab cov twj tso kua mis.
Kev Lag Luam Tshuaj: Siab -kub reactors thiab kav dej.
Tubrog nkoj: submarine Cheebtsam thiab siab - lub zog ncej.
Nuclear Zog: Reactor core thiab tswj cov pas nrig.
Ntim txoj kev rau Alloy 600 Pipe
Gnee Steel siv txoj kev ntim khoom zoo tshaj plaws thiab zoo tshaj plaws rau txhua hom kev thauj mus los. Peb txoj kev ntim khoom muaj xws li:
Ntoo crates
Ntoo pallets
Shrink wrap packing
Cardboard thawv
Ntoo crates (slatted)
Inconel 600 Seamless Yeeb Nkab Nqe Sau
| Nqe ntawm inconel 600 yeeb nkab chaw tsim tshuaj paus | ASTM B167 inconel 600 Pipe Nqe hauv Is Nrias teb (INR) | inconel 600 yeeb nkab Nqe hauv UK Phaus sterling | UNS N06600 Pipe Nqe hauv UAE Dirham |
|---|---|---|---|
|
Inconel 600 Smls Pipe To Astm B 167 Gr.Uns No. 6600 Nyob rau hauv 5 Mtrs Length, Txias Drawn, Annealed & Pickled, Loj : 8 Nb (219 |
INR 1,008,889 | 10927.60 UK Phaus sterling | 52162.76 UAE Dirham |
|
Inconel Seamless Pipes 600 |
INR 2,420 | 26.21 UK pound sterling | 125.12 UAE Dirham |
|
Inconel 600 Smls Pipe To Astm B 167 Gr.Uns No. 6600 Hauv 6 Mtrs Ntev, Loj ; 7.981 (202.72 Mm) Od X 0.5 (12.7 Mm) Th |
INR 5,085,328 | 55080.81 UK Phaus sterling | 262927.57 UAE Dirham |
|
Inconel 600 Seamless Yeeb Nkab |
INR 3,397 | 36.79 UK pound sterling | 175.64 UAE Dirham |
Hais txog Gnee Steel
Thov qhov tseebInconel 600 Tubedaim ntawv teev nqi. Thov hu rau+8615824687445los yog emailss@gneesteel.comrau cov ntaub ntawv ntawm cov khoom muaj thiab cov npe tshiab tshaj plaws rauNickel 600 Tube.
Thov hu rau peb kom tau txais cov lus qhia ceev rau inconel 600 Pipe koj xav tau
Peb muab cov Inconel 600 Pipes thiab raj raws li DIN, ISO, JIS, lossis ANSI / ASME cov qauv.
FAQ
Q: Cov ntawv thov ntawm Inconel 600 yog dab tsi?
A: Inconel 600 muaj kev tiv thaiv zoo heev rau oxidation thiab chloride kev nyuaj siab corrosion, ua rau nws dav siv nyob rau hauv siab - kub thiab corrosive ib puag ncig, xws li tshav kub exchangers, tshuaj ua, nuclear reactors, thiab marine daim ntaub ntawv.
Q: Qhov txawv ntawm Inconel 600 thiab 625 yog dab tsi?
A: Inconel 600 muaj zog cua sov thiab corrosion kuj, thaum Inconel 625 tau ntxiv molybdenum thiab niobium, uas txhim kho nws lub zog thiab txhim kho nws cov kev tiv thaiv rau pitting corrosion, crevice corrosion, thiab qaug zog nyob rau hauv cov neeg kho tshuab kev nyuaj siab heev.
Q: Dab tsi yog qhov ntsuas kub ntawm Inconel 600?
A: Inconel 600 tuaj yeem tiv taus kub txog 2000℃F (1093 degree). Nws ua tau zoo nyob rau hauv thermal cycling tej yam kev mob thiab yog oxidation -resistant, ua rau nws zoo tagnrho rau siab - kub daim ntaub ntawv xws li rauv taws, pav system, thiab lub zog tsim units.
Cim npe nrov: Tuam Tshoj Inconel 600 Seamless Tube Manufacturers thiab lwm tus neeg - Lub koom xwm Wholesale - Inconel 600 Seamless Tube
