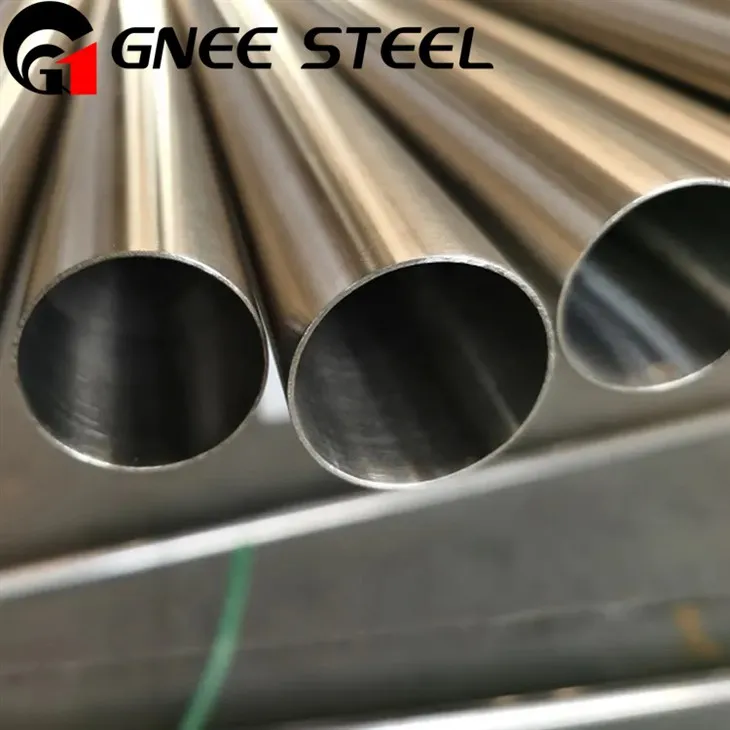

ASTM B167 Inconel 600 Corrosion - ion reseive khoom siv kav dej
ASTM B167: Tus qauv no qhia txog qhov yuav tsum muaj rau Nickel {1} Chomium Alloy Seamless Tubing, suav nrog cov tshuaj muaj pes tsawg leeg, thiab qhov ntev.
Kev kuaj: txhua tus neeg yuav tsum tau ua ib qho kev ntsuas hydrostatic ua raws li tus qauv.
Cov ntawv pov thawj: Cov khoom siv yuav tsum tau muab daim ntawv pov thawj ntsuas ntsuas muaj cov ntaub ntawv kom ntxaws, suav nrog cov tshuaj lom neeg thiab cov ntaub ntawv ua tau zoo.
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
ASTM B167 Inconel 600 Corrosion - ion reseive khoom siv kav dejkev piav txog
GNEE Astm B167 Inconel 600 Corrosion - ionistant cov ntaub ntawv kav
ASTM B167 Inconel 600 Cov kav dej yog seamless kav ua los ntawm ib lub tsib xee thiab kub tsis kam, haum rau kev siv hauv cov cantogenic rau 1000 degree. Lawv cov kev tiv thaiv zoo heev rau kev ntxhov siab corrosion cracking thiab oxidation ua rau lawv zoo tshaj rau cov ntawv thov hauv kev lag luam, aerospace, thiab nuclear engineering. Tus qauv xav tau cov kav dej no kom dhau hydrostatic siab xeem thiab muab nrog cov ntawv xeem ntawv pov thawj.
ASME B163 npog seamless tsib xee thiab nickel alloy tubing rau condensers thiab kev hloov cua sov. Cov qauv no npog sab nraud ntawm sab nraud thiab nruab nrab phab ntsa thickness, lossis sab nraud ntawm txoj kab ntawm txoj kab ntawm cov phab ntsa thiab tsawg kawg nkaus phab ntsa thickness. Tubing yuav tsum yog ntawm alloys thiab cov xwm txheej tau teev nyob rau hauv no specification. The material shall conform to the specified compositional limits for nickel, copper, molybdenum, iron, manganese, carbon, silicon, chromium, aluminum, titanium, phosphorus, cerium, zirconium, yttrium, boron, cobalt, niobium, tungsten, and nitrogen. Cov khoom siv lub zog, ua kom muaj zog, elongation lub zog, thiab rockwell hardness yuav tau raws li cov khoom ntiag tug ntawm cov lus qhia no. Cov qauv xeem xws li kev tsom xam tshuaj lom neeg, ntsuas cov txheej txheem, cov nyom hloov pauv, thiab kev hloov pauv ntau dua, thiab kev hloov siab hloov dua siab tshiab.
Inconel 601 Corrosion Kuj: Ib qho ntawm cov khoom tseem ceeb ntawm 601 yog nws lub peev xwm ua kom muaj kev mob siab ntau, txawm tias muaj kev mob hnyav tshaj plaws. Thaum cua sov thiab cua txias cycles, 601 cov ntaub ntawv ntom nti oxide nplai uas tiv thaiv spalling {}} tus txheej tseem ceeb rau carburization zoo. Nws cov roj chromium siab thiab cov ntsiab lus aluminium muab cov oxidation zoo ua tsis kam nyob rau hauv high - kub, sulphur {{} muaj cov cua txias.
ASTM B167 UNICS N06600 UNMONEL 600 Cov Khoom Siv Hluav Taws Xob
| Cov lus qhia | ASTM B 167, ASME SB 167 |
|---|---|
| Cov Qauv Txheej Txheem | SAE/ AMS 5580, N-253, ISO 6207, MIL-DTL-23227, and N-576, ASTM B 751/ ASME SB 751, DIN 17751, ASTM B 517/ ASME SB 517, N-20, ASTM B 167/ ASME SB 167, ASTM B 163/ ASME SB 163, ASME code PUAS 1827, ASTM B 516 / ASME SB 516, ASTM B 516, ASTM B 829 / ASME SB 829, ASTM B 775 / ASME SB 775 |
| Sml | 4 rau 219mm WT: 0.5 txog 20 hli |
| Welded / Erw | 5.0 hli - 1219.2 hli |
| Kav Pipe SchE. | Inconel 600 ASTM B167 Sch5, SCH10, Sch40, STD, SCH80, SCH160 |
| Ntau hom | Seamless / EFW / EFW / Welded / Fabricated / LSAWW PIPES |
| Cov foos muaj | Puag ncig, hydraulic thiab lwm yam |
| Ntev | Ib leeg random, ob npaug random & txiav ntev. |
| Kawg ua tiav | BBE, BSE, Bese, Be, Ble, Boe, Ntog, Boe, PBE, PBE |
ASTM B167 Inconel 600 Corrosion - istant kav kav speces
Inconel 600 kav dej sib luag
| Lub hom phiaj | Tsis yog | WNR. | Ib tug kaum | En | JIS | Bs | Gost | Lossis |
| Inconel 600 | N06601 | 2.4851 | Nicr23fe | Nicr15fe | NCF 601 | Na 49 | Xh60T | ЭИ868 |
ASTM B167 UNICS N06600 COMPOSITION N06600 COMPOSITION
| Hlau | Tus menyuam yaus | Tooj liab | Tus kws dai txiv manganese | Liv | Leej mos | Pa roj carbon | Silicon | Yeebsab |
|---|---|---|---|---|---|---|---|---|
| UN tsis yog N06600 | 72.0min | 0.5max | 1.0 max | 6.0 – 10.0 | 0.015 max | 0.15 Max | 0.5 max | 14.0 – 17.0 |
ASTM B167 UNICS NCO cov khoom siv neeg kho tshuab
| Cov khoom siv thiab mob | Tensile zog min. PSI (MPA) | Paib lub zog (0.2% offset) min, PSI (mpa) | Elongation hauv 2in. Lossis 50 hli (lossis 4d) min. % |
|---|---|---|---|
| Kub ua haujlwm lossis kub ua haujlwm ua haujlwm: 5 nyob rau hauv. (127 mm) nyob rau sab nraum lub taub thiab hauv qab |
80000 (550) | 30000 (205) | 35 |
| Kub ua haujlwm lossis kub ua haujlwm ua haujlwm: Tshaj 5 nyob rau hauv. (127 mm) nyob rau sab nraum lub taub |
75000 (515) | 25000 (170) | 35 |
| Txias ua haujlwm annealed: 5 nyob rau hauv. (127 mm) nyob rau sab nraum lub taub thiab hauv qab |
80000 (550) | 35000 (240) | 30 |
| Txias ua haujlwm annealed: Tshaj 5 nyob rau hauv. (127 mm) nyob rau sab nraum lub taub |
80000 (550) | 30000 (205) | 35 |
ASTM B167 UNICS NCO N06600 Raj Qhov Ntev thiab Kev Ua Phem
| Teev sab nraud ntawm lub cheeb, hauv. (Hli) | Sab nraud lub cheeb, hauv. (Hli) | Sab hauv lub taub | Phab ntsa tuab,% | |||
|---|---|---|---|---|---|---|
| + | − | + | − | + | − | |
| Nyob rau hauv 3/32 (2.4) | 0.002 (0.05) | 0 | 0 | 0.002 (0.05) | 10 | 10 |
| 3/32 txog 3/16 (2.4 rau 4.8), Tshaj Tawm | 0.003 (0.08) | 0 | 0 | 0.003 (0.08) | 10 | 10 |
| 3/16 txog 1/2 (4.8 txog 12.7), Tshaj Tawm | 0.004 (0.10) | 0 | 0 | 0.004 (0.10) | 10 | 10 |
| 1/2 txog 11/4 (12.7 txog 31.8), incl | 0.005 (0.13) | 0 | 0 | 0.005 (0.13) | 10 | 10 |
Cov sijhawm ntawm cov yeeb nkab ntawm Nickel 600 tubing
| Nominal yeeb nkab loj, hauv. | Sab nraud ntawm lub taub | Nominal phab ntsa tuab, hauv. (Hli) | |||
|---|---|---|---|---|---|
| Teem tsis muaj . 5 | Teem tsis muaj . 10 | Teem tsis muaj . 40 | Teem tsis muaj . 80 | ||
| 1⁄4 | 0.540(13.7) | … | 0.065 (1.6) | 0.088 (2.2) | … |
| 3⁄8 | 0.675(17.1) | … | 0.065 (1.6) | 0.091 (2.3) | 0.126 (3.2) |
| 1⁄2 | 0.840(21.3) | 0.065 (1.6) | 0.083 (2.1) | 0.109 (2.8) | 0.147 (3.7) |
| 3⁄4 | 1.050(26.7) | 0.065 (1.6) | 0.083 (2.1) | 0.113 (2.8) | 0.154 (3.9) |
| 1 | 1.315(33.4) | 0.065 (1.6) | 0.109 (2.8) | 0.133 (3.4) | 0.179 (4.5) |
| 11⁄4 | 1.660(42.2) | 0.065 (1.6) | 0.109 (2.8) | 0.140 (3.6) | 0.191 (4.8) |
| 11⁄2 | 1.900(48.3) | 0.065 (1.6) | 0.109 (2.8) | 0.145 (3.7) | 0.200 (5.1) |
| 2 | 2.375(60.3) | 0.065 (1.6) | 0.109 (2.8) | 0.154 (3.9) | 0.218 (5.5) |
| 21⁄2 | 2.875(73.0) | 0.083 (2.1) | 0.120 (3.0) | 0.203 (5.2) | 0.276 (7.0) |
| 3 | 3.500(88.9) | 0.083 (2.1) | 0.120 (3.0) | 0.216 (5.5) | 0.300 (7.6) |
| 31⁄2 | 4.000(101.6) | 0.083 (2.1) | 0.120 (3.0) | 0.226 (5.7) | 0.318 (8.1) |
| 4 | 4.500(114.3) | 0.083 (2.1) | 0.120 (3.0) | 0.237 (6.0) | 0.337 (8.6) |
| 5 | 5.563(141.3) | … | … | 0.258 (6.5) | … |
| 6 | 6.625(168.3) | … | … | 0.280 (7.1) | … |
ASTM B167 Inconel 600 Corrosion - istantant kav dej nto
Gnee Steel ua plaub txoj kev kho mob rau Astm B167 Inconel 600 Corrosion 600 Intistant Cov Kav Dej: Pickling, Daim iav Polishing, Polishing, thiab Sandblasting.
ASTM B167 Inconel 600 Corrosion - ionistant kav dej ntau lawm txheej txheem
Gnee Steel muab cov kev kho mob kub rau Astm B167 Inconel 600 Corrosion 600} Resistant Cov Khoom Siv Pipes: Kev Siv, Kev Tawm Tsam + Kev Nyab Xeeb. Tsis tas li ntawd, GNEE steel kuj tseem muab cov kub ua haujlwm kub thiab ua haujlwm txias, uas yog kub dov thiab txias kos duab.
ASTM B167 Alloy 600 Corrosion - ionistant cov khoom siv kav ntim
Txhawm rau kom ua kom muaj kev nyab xeeb ntawm koj cov khoom, peb yuav muab kev paub zoo, ib puag ncig zoo, yooj yim thiab siv cov khoom siv ntim yooj yim.
Hais Txog Gnee Steel
GNee steel tshwj xeeb hauv kev tsim khoom thiab muag ntawm ntau qhov nickel {}}}}}}}}}}}}}}}}}} 800H / HT, Incoloy 825, Monel Alloy 400, Monel K500, thiab High-kub alloys. Gnee Steel cov khoom yog dav siv nyob rau hauv Aerospace, tshuaj lom neeg, hluav taws xob hluav taws xob, siv hluav taws xob, thiab lub zog hluav taws xob, thiab lub zog nuclear zog, thiab lub zog nuclear lub zog. Peb tseem muab cov kev cai ua kom haum rau cov neeg siv khoom xav tau. Rau alloy tus nqi nug cov lus nug lossis customized alloy cov kev daws teeb meem, thov hu rau peb rau ib nqe lusss@gneesteel.com.
Cov FAQ
Q: Dab tsi yog qhov txawv ntawm inconel 625 thiab inconel 600?
A: Inconel 600 yog npib tsib xee {1} chromium alloy paub, thiab ntau lub zog, tshwj xeeb tshaj yog thaum muaj qhov kub. Inconel 600 yog tus nqi {-} Siv cov ntawv thov siab ntxiv rau cov kev siv tshuaj kom zoo xws li cov tub rog xav tau xws li cov tubrog nkoj ntau dua li cov tubrog nkoj siab xws li cov tubrog nkoj ntau dua li cov tubrog nkoj siab xws li cov tubrog nkoj ntau dua li cov tubrog nkoj muaj ntau xws li cov tubrog nkoj ntau dua li cov tubrog nkoj ntau xws li cov tubrog nkoj ntau dua xws li cov tubrog nkoj ntau dua li cov tubrog nkoj siab xws li cov tubrog nkoj ntau dua xws li cov tubrog nkoj ntau dua xws li cov tubrog nkoj ntau dua xws li cov tubrog nkoj ntau dua li cov tubrog nkoj ntau xws li cov tubrog nkoj ntau dua xws li marine, petrochemical, thiab aerospace.
Q: Dab tsi yog qhov txawv ntawm inconel 600 thiab 718?
A: Inconel 600 txawj nyob rau hauv corrosion tsis kam thiab muaj peev xwm, ua rau nws haum rau kev ua tshuaj thiab cov ntawv thov marine. Inconel 718, ntawm qhov tod tes, khav theeb qhov siab siab- qhov kev xaiv kub thiab cov roj thiab roj thiab roj app.
Q: Dab tsi yog qhov txawv ntawm inconel 601 thiab 600?
A: Inconel 600 muaj lub zog zoo tshaj plaws lub zog thiab kev tawm tsam rau kev ntxhov siab corrosion tawg, ua kom zoo - kev muaj kev ntxhov siab ib puag ncig. Ntawm qhov tod tes, inconel 601 tau qis dua qis dua lub zog
