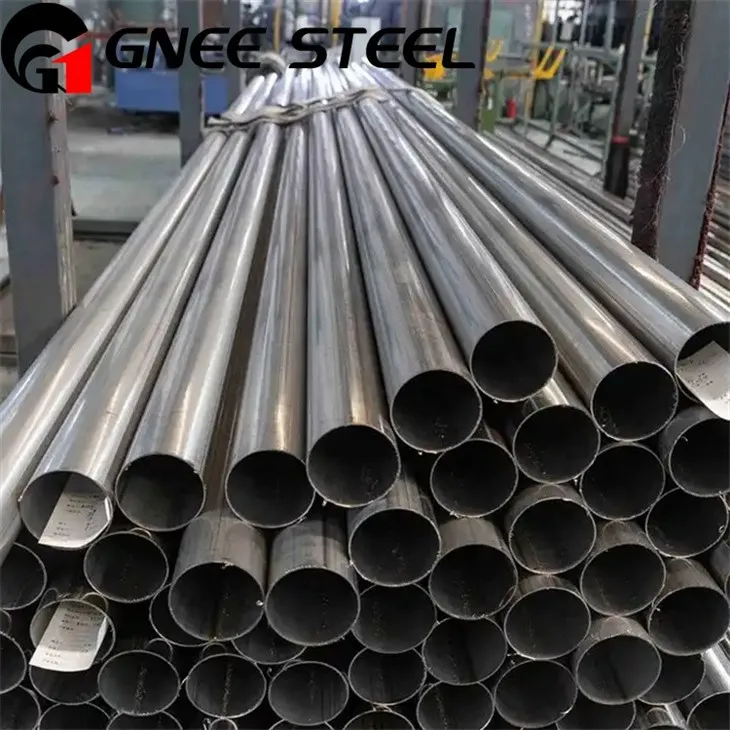

Muab Khoom Siv Hluav Taws Xob 800H Nickel Alloy Yeeb Nkab, Incoloy Tsis Raug N08810
Rau lub phaj, bar thiab yeeb nkab, peb tuaj yeem txiav rau koj raws li koj xav tau ntev los ntawm peb cov khoom .
Xa kev nug
Tsham tam sim no
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Khoom Taw qhia
Cov lus piav qhia & lub npe:Incoloy 800H 800HT Nickel Alloy
Txheem:ASTM / ASME B / SB 163, ASTM / ASME B / SB407
Khoom siv:Incoloy800 / 800H / 800HT, 825, Inconel 600,625,617,693, alloy {136, aliecxn, n08028 thiab lwm} 17}}
| Tsis Yog N08800 / N08810 / N08811 Tshuaj lom neeg% | |||||||||||
| Alloy Tsim | Lub ntsiab | C | Ni | Cr | Mn | Zaum fe | Si | CU | Al | Ti | S |
| Incoloy 800 | Min .% | - | 30 | 19 | - | 39.5 | - | - | 0.15 | 0.15 | - |
| Max .% | 0.1 | 35 | 23 | 1.5 | - | 1 | 0.75 | 0.6 | 0.6 | 0.015 | |
| Incoloy800h | Min .% | 0.05 | 30 | 19 | - | 39.5 | - | - | 0.15 | 0.15 | - |
| Max .% | 0.1 | 35 | 23 | 1.5 | - | 1 | 0.75 | 0.6 | 0.6 | 0.015 | |
| Incoloy800Ht | Min .% | 0.06 | 30 | 19 | - | 39.5 | - | - | 0.15 | 0.15 | - |
| Max .% | 0.1 | 35 | 23 | 1.5 | - | 1 | 0.75 | 0.6 | 0.6 | 0.015 | |
| Neeg kho tshuab | Incoloy 800 | Incoloy 800h | Incoloy 800ht | |
| Ntawj ntom: | 7.9g / cm3 | 7.9g / cm3 | 7.9g / cm3 | |
| Melting taw tes: | 1350-1400℃c | 1350-1400℃c | 1350-1400℃c | |
| Tensile Lif Min . (mpa): | 520 | 450 | 450 | |
| Ua lub zog ib lub zog min . (mpa): 0.2% offset | 205 | 170 | 170 | |
| Elongation a 5% (min .): | 30 | 30 | 30 | |
| Rockwell Hardness Max.: | B95 | B95 | B95 | |
| Khoom | Qhov tuab | Qhov dav | Phab Ntsa Thickness | Qhov dav | Qho ntev |
| Lub tais | 0.3mm -30 hli | 1m/1.22m/1.5m | 1m-11.8m | ||
| Kev thaiv qhov rais | 2 hli -300 hli | 1m-5m | |||
| Tus kav dej | 6 hli -406 hli | 0.3mm -30 hli | |||
| Kev zam | 30mm -300 hli | 300mm -800 hli | 0.2m-1m |
