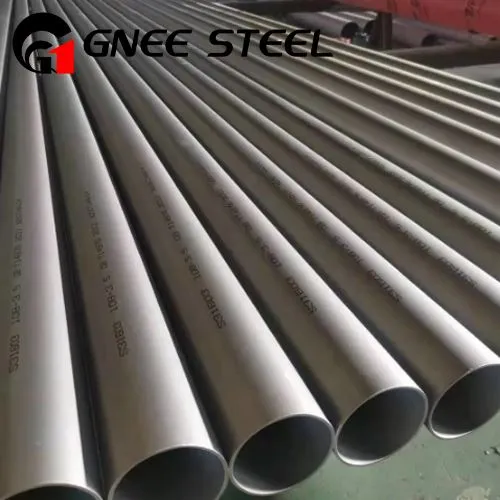

Incoloy 800 Welded Tube UNS N08800
Incoloy 800 Welded Tube UNS N08800
Incoloy 800 Welded Tube UNS N08800
Incoloy 800 Welded Tube UNS N08800

Incoloy 800 Welded Tube UNS N08800

Incoloy 800 welded raj yog cov raj ua los ntawm Incoloy 800 alloy uas tau welded ua ke los tsim ib lub raj txuas ntxiv. Lawv feem ntau yog siv rau hauv cov ntawv thov uas xav tau lub zog kub thiab tiv thaiv corrosion.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Kev 800yog ib tug npib tsib xee-chromium alloy uas muab unparalleled lub zog thiab durability. Qhov no alloy yog dav siv nyob rau hauv high-temperature ib puag ncig uas lwm yam ntaub ntawv yuav ua tsis tau tejyam.UNS N08800 Welded Tubes yog ib tug hlau-nickel-chromium alloy nrog nruab nrab lub zog thiab zoo kuj rau oxidation thiab carburization ntawm siab kub. Kuj tseem hu ua WNR 1.4876 Welded Tubes, nws yog qhov tshwj xeeb tshaj yog rau cov khoom siv kub kub hauv kev lag luam petrochemical vim tias cov hlau tsis tsim cov embrittling sigma theem tom qab lub sij hawm ntev raug ntawm 1200 Deg F (649 Deg C).

ASTM B515 800 Incoloy Welded Tube sib npaug qib

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST	LOSSIS
Kev 800	N08800	1.4876	Z8NC{1}}	X10NiCrAlTi32-20	NCV 800	NA 15	ЭИ670	XH 32 T

Incoloy UNS N08800 Welded Tube Chemical Composition

QIB	Ni	C	Fe	Si	Mn	S	Al	Ti	Cu	Cr
Kev 800	30-35	0.1 max	3 9,5mn	1 0 max	1.5 max	0.015 max	0.15-0.60	0.15-0.60	0.75 max	19-23

Incoloy WERKSTOFF NR. 1.4876 Welded Tubing Mechanical Properties

Qhov ntom	Melting Point	Yield zog (0.2% Offset)	Tensile zog	Elongation
7,94g 3	1385 degree (2525 degree F)	Psi - 30, 000 , MPa - 205	Psi - 75, 000 , MPa -520	30 %

nickel incoloy welded tube

Nta NtawmIncoloy 800 welded yeeb nkab:

High Temperature Resistance:

Ib qho ntawm qhov zoo tshaj plaws ntawm kev siv Incoloy 800 welded raj yog nws lub peev xwm los tiv taus qhov kub thiab txias yam tsis poob nws lub zog. Cov hlau no tuaj yeem ua haujlwm hauv qhov kub li 1600 degree F (871 degree) yam tsis muaj qhov cuam tshuam loj lossis puas tsuaj. Cov cuab yeej no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov xws li cov khoom siv hluav taws xob, cov chaw tsim hluav taws xob petrochemical, thiab roj turbine xyaw.
Corrosion Resistance:

Lwm qhov txiaj ntsig tseem ceeb ntawm Incoloy 800 welded raj yog nws tsis kam rau oxidation thiab corrosion. Cov hlau no muaj cov feem pua ntawm cov npib tsib xee thiab chromium, uas ua rau muaj kev tiv thaiv zoo heev rau corrosive ib puag ncig, xws li cov uas muaj nyob rau hauv cov tshuaj ua cov nroj tsuag thiab offshore drilling rigs.
Lub zog thiab Durability:

Incoloy 800 welded raj muaj qhov sib xyaw ua ke ntawm lub zog thiab ua haujlwm ntev uas ua rau lawv zoo meej rau cov ntawv thov kev ntxhov siab. Cov hlau no tuaj yeem tiv taus cov khoom hnyav, kev co, thiab kev cuam tshuam yam tsis muaj kev cuam tshuam loj lossis puas tsuaj. Qhov peev xwm no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov xws li cov khoom siv hluav taws xob, cov kav dej, thiab cov hlab ntsha siab.
Versatility:

Incoloy 800 welded raj muaj ntau yam zoo kawg thiab tuaj yeem hloov kho kom tau raws li cov kev xav tau tshwj xeeb ntawm ntau yam kev lag luam. Cov hlau no tuaj yeem ua haujlwm txias lossis kub ua haujlwm, welded, thiab fabricated rau ntau yam duab thiab ntau thiab tsawg. Nws kuj ua haujlwm zoo nrog lwm cov hlau, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau ntau yam kev siv.
