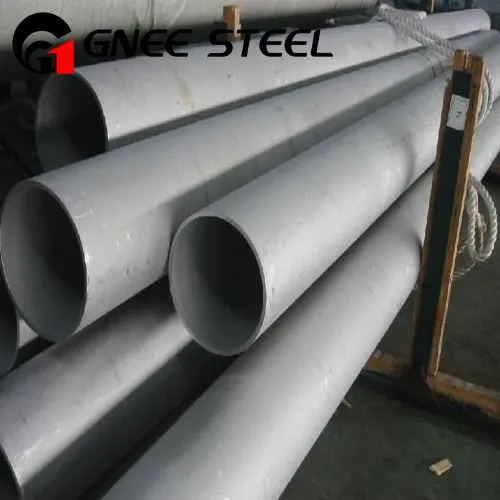

Incoloy 800HT Welded Tube N08810
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Incoloy 800 Hyog ib qho kub-kub alloy uas muaj kev tiv thaiv zoo rau oxidation, carburization, thiab sulfidation ntawm qhov kub siab. Ib qho ntawm cov ntawv thov tseem ceeb ntawm cov hlau no yog tsim los ntawm Incoloy 800H Welded Tubes, uas tau siv dav hauv ntau yam lag luam, xws li kev ua tshuaj lom neeg, tsim hluav taws xob, thiab roj thiab roj refining.
Alloy 800H Tubes Chemical Composition
| Element | alloy 800 | Hlau alloy 800H | Hlau alloy 800HT |
| C | 0.10 max | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max | 1.50 max |
| Si | 1 00 max | 1 00 max | 1 00 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Fe | 39.50 Nws | 39.50 Nws | 39.50 Nws |
| Ni | 30.00 – 35.00 | 30.00 – 35.00 | 30.00 – 35.00 |
| Cr | 19.00 – 23.00 | 19.00 – 23.00 | 19.00 – 23.00 |
Incoloy Alloy 800H Tubes Mechanical & Physical Properties
| Element | Tom ntej: Incoloy Alloy 800H |
| Qhov ntom | 7,94g 3 |
| Melting Point | 1385 degree (2525 degree F) |
| Tensile zog | Psi – 75, 000, MPa – 520 |
| Yield zog (0.2% Offset) | Psi – 30, 000, MPa – 205 |
| Elongation | 30 % |
Nta ntawm Incoloy 800H Welded Tubes
Incoloy 800H welded raj muaj ob peb yam uas ua rau lawv zoo tagnrho rau siv nyob rau hauv high-temperature daim ntaub ntawv. Cov yam ntxwv tseem ceeb suav nrog kev ua haujlwm zoo rau kev ntxhov siab-corrosion tawg, zoo heev creep thiab tawg lub zog ntawm qhov kub thiab txias, zoo tiv thaiv thermal qaug zog thiab zoo heev tiv thaiv oxidation, carburization, thiab sulfidation. Cov hlau muaj qib siab ntawm nickel thiab chromium, uas ntxiv rau nws cov corrosion kuj thiab lub zog.
Cov txiaj ntsig ntawmIncoloy 800H welded yeeb nkab
Cov txiaj ntsig ntawm Incoloy 800H Welded Tubes suav nrog qib siab ntawm kev tiv thaiv oxidation, tsis kam mus rau carburization thiab lub zog zoo txawm tias nyob rau hauv qhov kub thiab txias, ua rau nws zoo tagnrho rau siv nyob rau hauv ib puag ncig hnyav. Cov welded raj muaj nyob rau hauv ntau qhov ntau thiab tsawg thiab specifications, ua rau lawv zoo heev rau ntau yam kev siv. Tsis tas li ntawd, cov hlab yog yooj yim rau fabricate thiab tuaj yeem welded siv ntau yam txuj ci xws li TIG, MIG, thiab phau ntawv arc vuam, ua rau lawv muaj ntau yam.
Daim ntawv thov ntawm Alloy 800H Welded Tubes
Incoloy 800H welded raj muaj ntau yam thiab tuaj yeem siv rau hauv ntau daim ntawv thov hauv kev lag luam sib txawv. Qee qhov kev siv tseem ceeb suav nrog kev ua tshuaj lom neeg, tsim hluav taws xob, thiab roj thiab roj refining. Hauv kev lag luam tshuaj lom neeg, cov raj welded yog siv rau hauv kev tsim cov khoom siv hluav taws xob, cov khoom siv hluav taws xob, thiab cov khoom siv hluav taws xob, thaum lub zog tsim hluav taws xob, lawv tau siv hauv boiler raj rau chav turbines. Hauv kev lag luam roj thiab roj, Incoloy 800H welded raj yog siv nyob rau hauv cov cua kub exchangers, offshore thiab onshore platforms, thiab ua cov nroj tsuag.
Ntim & Shipping
Cim npe nrov: incoloy 800ht welded raj n08810, Tuam Tshoj incoloy 800ht welded raj n08810 lwm tus neeg
