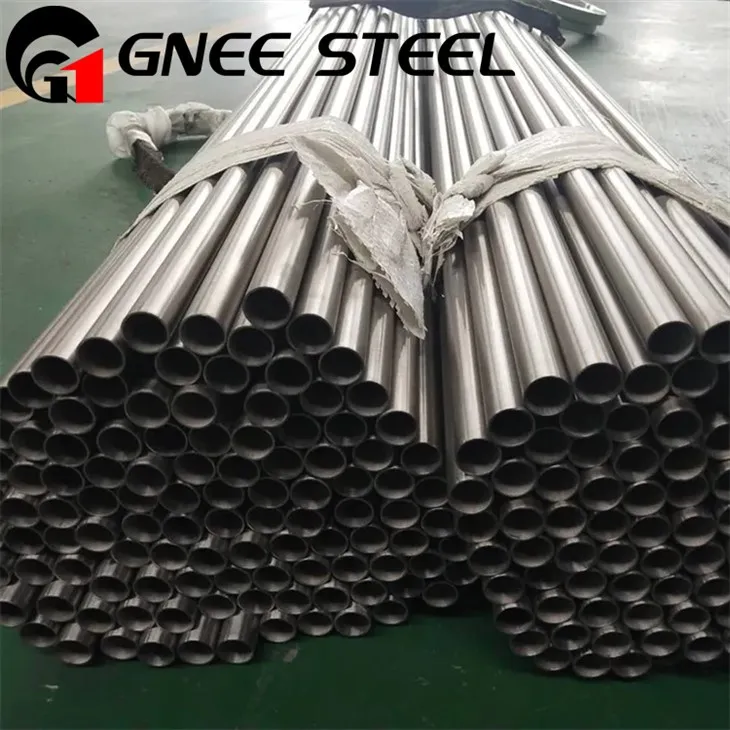

Incoloy 800/800H/800HT yeeb nkab
Seamless Yeeb Nkab: ASTM B407 / ASME SB407
Yeeb Nkab Sab Nraud: 6.00 hli txog 914.4 hli, qhov siab tshaj plaws mus txog 24 nti NB, muaj nyob rau hauv Tshuag, cov kav hlau steel ntawm ntau yam txheej sab nraud muaj los ntawm Tshuag
Yeeb Nkab Sab Nraud: 1/8 nti rau 2 nti, 3mm txog 38mm
Thickness Range: 1 hli mus rau 3 hli, 0.028 txog 0.156 nti, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS
Hom: Seamless
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Incoloy 800/800H/800HT Pipe Description
GNEE Incoloy 800/800H/800HT yeeb nkab
Incoloy 800, 800H, thiab 800HT cov kav dej muaj nyob rau hauv cov khoom siv high -kev ua haujlwm npib tsib xee- hlau-chromium alloys tsim los rau lub zog, kub tsis kam, thiab corrosion kuj nyob rau hauv huab cua puag ncig. Cov qib no-UNS N08800 (800), N08810 (800H), thiab N08811 (800HT)- feem ntau yog siv rau hauv cov ntawv thov uas xav tau kev ua haujlwm ruaj khov ntawm qhov kub siab, xws li cov khoom siv hluav taws xob, cov khoom siv hluav taws xob, cov khoom siv roj av, thiab cov khoom siv hluav taws xob.
Incoloy 800 cov kav dej paub txog lawv cov kev tiv thaiv zoo heev rau oxidation, carburization, thiab sulfidation, ua rau lawv zoo tagnrho rau nruab nrab - qhov kub thiab txias. Incoloy 800H, nrog nws cov ntsiab lus carbon ntau dua thiab tswj cov qoob loo loj, nthuav tawm cov khoom zoo tshaj plaws thiab kev ntxhov siab tawg, txhim kho nws cov qauv kev ruaj ntseg nyob rau hauv siab - qhov kub thiab txias. Incoloy 800HT yog qhov ua tau zoo tshaj plaws ntawm peb cov alloys, muab kev ntxhov siab zoo dua thiab nkag siab zoo vim yog kev tswj hwm nruj ntawm txhuas thiab titanium cov ntsiab lus, ua rau nws tsim nyog rau qhov xav tau tshaj plaws thermal corrosion ib puag ncig.
Gnee Steel muab seamless alloy kav raws li cov qauv xws li ASTM B407 / ASME SB407 thiab ua hauj lwm tseem ceeb industries xws li refining, zog tsim, tshuaj ua, thiab aerospace engineering. Nrog rau kev taug qab tau zoo, thib peb- ntawv pov thawj tog, thiab lub peev xwm xa khoom thoob ntiaj teb, Gnee Steel's Incoloy 800/800H / 800HT cov kav dej tau txais kev ntseeg siab ntawm cov kws tsim khoom, tus thawj tswj kev yuav khoom, thiab cov khoom lag luam qub (OEMs) thoob ntiaj teb rau lawv cov khoom zoo tshaj plaws metallurgical thiab kev ua raws li kev cai thoob ntiaj teb.
Cov qib sib npaug rau Incoloy 800/800H / 800HT alloy tubing
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | LOSSIS |
| Kev 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCV 800 | NA 15 | ЭИ670 | XH 32 T |
| Incoloy 800 H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 H | NA 15 (H) | ЭИ670 | XH 32 T |
| Incoloy 800 HT | N08811 | 1.4959 | - | X8NiCrAlTi32-21 | NCF 800 HT | NA 15 (HT) | ЭИ670 | XH 32 T |
Incoloy Alloy 800/800H/800HT Tubes Specifications
|
800 Tubes Specifications |
ASTM B535, B739 / ASME SB535, SB739 |
|
Dimensional specification |
ANSI/ASME B36.19M, ANSI/ASME B36.10M |
|
ASTM B535 800H Seamless Tube Loj |
1/2 "NB-16" NB |
|
ASTM B535 800HT Welded Tube Loj |
1/2 "NB-24" NB |
|
ASTM B739 800 EFW Tube Loj |
6" NB - 24" NB |
|
Sab nraud txoj kab uas hla |
6.00 hli OD txog 914.4 hli OD, Qhov ntau thiab tsawg mus txog 24 "NB muaj Ex- Tshuag, OD Loj Hlau Tubes muaj Ex- Tshuag |
|
Incoloy Alloy 800H Tubes tsim cov duab |
Hydraulic, Round, Rectangle, Square, Hex, Honed |
|
Incoloy 800HT Tube Manufacturing Techniques |
Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
|
Incoloy 800 Tube Teem caij Thickness Range |
SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
|
Alloy 800H Tubes Kawg Hom |
Plain End, Beveled End, Treaded One End, TBE (Treaded Ob Qhov Kawg) |
|
Kev xa khoom ntawm Incoloy Alloy 800HT Tube |
Annealed thiab Pickled, Polished, Bright Annealed, Txias Drawn |
|
Nto tiav |
No.1, No.4, No.8 Mirror Finish, 2B |
Incoloy 800/800H/800HT Seamless yeeb nkabSpecification
ASTM B407 Incoloy 800/800H / 800HT Seamless Yeeb Nkab & Tube Chemical Composition
| Qib | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Kev 800 | 30.0-35.0 | 3 9,5mn | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .1 max | 1.5 max | 015 max | 1.0 max |
| Incoloy 800 H | 30.0-35.0 | 3 9,5mn | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | 05-.10 max | 1.5 max | 015 max | 1.0 max |
| Incoloy 800 HT | 30.0-35.0 | 3 9,5mn | 19.0-23.0 | .75 max | .25-.60 | .85-1.20 | 06-.10 max | 1.5 max | 015 max | 1.0 max |
Incoloy 800/800H/800HT Tubing Mechanical Properties
| Qhov ntom | Melting Point | Tensile zog | Yield zog (0.2% Offset) | Elongation |
| 7,94g 3 | 1350-1400 degree | Psi - 75,000, MPa -520 | Psi - 30,000 , MPa - 205 | 30 - 35 % |
Alloy 800 Tubing Siab ntsuas
|
Tube OD (hauv.) |
Phab ntsa Thickness ntawm Tube (inch) |
|||||||
|
.028 |
.035 |
.049 |
.065 |
.083 |
.095 |
.109 |
.120 |
|
|
Ua haujlwm siab (psig) |
||||||||
|
1/8 |
7900 |
10100 |
|
|
|
|
|
|
|
1/4 |
3700 |
4800 |
7000 |
9500 |
|
|
|
|
|
5/16 |
|
3700 |
5400 |
7300 |
|
|
|
|
|
3/8 |
|
3100 |
4400 |
6100 |
|
|
|
|
|
1/2 |
|
2300 |
3200 |
4400 |
|
|
|
|
|
3/4 |
|
|
2200 |
3000 |
4000 |
4600 |
|
|
|
1 |
|
|
|
2200 |
2900 |
3400 |
3900 |
4300 |
Dimensions Standard Ntawm Incoloy 800 / 800H / 800HT Yeeb Nkab & Tube
| NPS | DN | OD (mm) | SCH 5s (hli) | SCH10s (hli) | SCH10 (hli) | SCH 20 (hli) | SCH30 (hli) | SCH40s (hli) | SCH STD (mm) | SCH40 (hli) | SCH60 (hli) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | 6 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | |||||
| 1/4 | 8 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | |||||
| 3/8 | 10 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | |||||
| 1/2 | 15 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | ||||
| 3/4 | 20 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | ||||
| 1 | 25 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | ||||
| 1 1/4 | 32 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | ||||
| 1 1/2 | 40 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | ||||
| 2 | 50 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | ||||
| 2 1/2 | 65 | 73.0 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | ||||
| 3 | 80 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | ||||
| 3 1/2 | 90 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | ||||
| 4 | 100 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | ||||
| 5 | 125 | 141.3 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | ||||
| 6 | 150 | 168.3 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | ||||
| 8 | 200 | 219.1 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | ||
| 10 | 250 | 273.1 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 12.70 | ||
| 12 | 300 | 323.9 | 3.96 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | ||
| 14 | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 11.13 | 15.09 | ||
| 16 | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 12.70 | 16.66 | ||
| 18 | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 14.27 | 19.05 |
Qhov hnyav ntawm Incoloy 800 / 800H / 800HT Yeeb Nkab
| NPS (DN) |
LUB SIJ HAWM LB/FT (KG / M) |
SCH | Sab nraud txoj kab uas hla IN (Nimeter) |
ID | WT IN (Nimeter) |
| 32 (800) |
84.085 (126.032) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.025 (6.035) |
| 32 (800) |
95.028 (141.09) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0281 (7.014) |
| 32 (800) |
105.069 (157.025) |
10 | 32.00 (813) |
.0.0.0 | 0.0312 (7.092) |
| 32 (800) |
116.041 (173.035) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0344 (8.074) |
| 32 (800) |
126.078 (188.083) |
.0.0.0 | 32.00 (813) |
STD | 0.0375 (9.053) |
| 32 (800) |
137.012 (204.009) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0406 (10.031) |
| 32 (800) |
147.078 (220.01) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0438 (11.013) |
| 32 (800) |
158.008 (235.029) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0469 (11.091) |
| 32 (800) |
168.037 (250.065) |
20 | 32.00 (813) |
XS | 0.05 (12.07) |
| 32 (800) |
188.087 (281.009) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0562 (14.027) |
| 32 (800) |
209.062 (312.017) |
30 | 32.00 (813) |
.0.0.0 | 0.0625 (15.088) |
| 32 (800) |
230.029 (342.094) |
40 | 32.00 (813) |
.0.0.0 | 0.0688 (17.048) |
| 32 (800) |
250.055 (373.00) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.075 (19.005) |
| 32 (800) |
270.072 (402.094) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0812 (20.062) |
| 32 (800) |
291.014 (433.052) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0875 (22.023) |
| 32 (800) |
311.047 (463.078) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 0.0938 (23.083) |
| 32 (800) |
331.039 (493.035) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 1.00 (25.04) |
| 32 (800) |
351.023 (522.08) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 1.0062 (26.097) |
| 32 (800) |
371.031 (552.088) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 1.0125 (28.058) |
| 32 (800) |
391.03 (582.064) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 1.0188 (30.018) |
| 32 (800) |
410.09 (611.072) |
.0.0.0 | 32.00 (813) |
.0.0.0 | 1.025 (31.075) |
Incoloy 800/800H/800HT yeeb nkab Tshuag
ASTM B407 Inconel 800 seamless yeeb nkab
UNS N08810 Kev Cai Yeeb Nkab
800 Inconel Tube
Inconel 800HT Rectangular yeeb nkab
ASME SB407 Inconel 800 Square Yeeb Nkab
DIN 1.4876 Round yeeb nkab
DIN 1.4958 Thick phab ntsa yeeb nkab
Inconel 800 Polished yeeb nkab
800H Inconel Cold Drawn Seamless Tube
Daim ntawv thov ntawm Incoloy 800 / 800H / 800HT Yeeb Nkab & Tube
Gnee Steel xyuas kom meej tias txhua yam khoom yog tsim los ntawm cov khoom siv siab -cov ntaub ntawv zoo. Txhua yam khoom tau dhau los ua kev sim ua ntej xa mus rau cov neeg siv khoom.
Petrochemical kev lag luam
Kev lag luam fais fab
Kev lag luam ua zaub mov
Kev lag luam roj thiab roj
Qab Zib kev lag luam
Kev Ntsuas Ntawm Incoloy 800 / 800H / 800HT Tube
Gnee Steel muaj npe nrov rau nws qhov zoo meej qhov tseeb. Tag nrho cov khoom raug kuaj nruj ua ntej xa zaub mov. Peb ua ob qho kev puas tsuaj thiab tsis yog - kev sim ua kom puas tsuaj rau txhua yam khoom.
Eddy kev sim tam sim no
Hydrostatic siab tsom xam
Pitting tiv thaiv corrosion test
Lub zog tsim kev lag luam
Kev txheeb xyuas cov khoom muaj pes tsawg leeg
Ntim Ntawm Incoloy 800 / 800H / 800HT Yeeb Nkab
Gnee Steel siv txoj kev ntim khoom zoo tshaj plaws thiab zoo tshaj plaws rau txhua hom kev thauj mus los. Peb txoj kev ntim khoom muaj xws li:
Ntoo crates
Ntoo pallets
Shrink wrap packing
Cardboard thawv
Ntoo crates
Incoloy 800 / 800H / 800HT Yeeb Nkab Kev Kho Mob
Gnee Steel muab plaub qhov chaw kho mob rauIncoloy 800 / 800H / 800HT yeeb nkab: Pickling, iav polishing, polishing, thiab sandblasting.
Incoloy 800 / 800H / 800HT Cov txheej txheem ntau lawm
Gnee Steel muab cov kev kho cua sov hauv qab no rauIncoloy 800 / 800H / 800HT yeeb nkab: annealing, tov + laus. Tsis tas li ntawd, Gnee Steel tseem muab kev ua haujlwm kub thiab txias ua haujlwm, uas yog kub dov thiab kos duab txias.
Incoloy 800 / 800H / 800HT Yeeb Nkab Ntim
Txhawm rau kom muaj kev nyab xeeb ntawm koj cov khoom zoo dua, peb yuav muab cov kev pabcuam tshaj lij, ib puag ncig tus phooj ywg, yooj yim thiab siv tau zoo.
Hais txog Gnee Steel
Gnee Steel tshwj xeeb hauv kev tsim thiab muag ntawm ntau yam nickel-raws li alloys, suav nrog Nickel 201, Nickel 202, Hastelloy C-276, Hastelloy C-22, Hastelloy B, Hastelloy C-4, Inconel Alloy 600, Inconel 625, Inconel 71, Inconel Alloy 800, Incoloy 800H / HT, Incoloy 825, Monel Alloy 400, Monel K500, thiab kub kub alloys. Gnee Steel cov khoom siv dav siv hauv aerospace, tshuaj, hluav taws xob, tsheb, thiab kev siv hluav taws xob nuclear. Peb kuj muab cov kev daws teeb meem customized alloy raws li cov neeg siv khoom xav tau. Rau cov lus nug txog tus nqi alloy lossis customized alloy kev daws teeb meem, thov hu rau peb rau kev tsocai ntawmss@gneesteel.com.
FAQ
Q: ASTM tus qauv rau Inconel 800 yog dab tsi?
A: Inconel 800 feem ntau ua raws li ASTM B407 tus qauv rau cov raj seamless thiab ASTM B514 cov qauv rau cov raj welded. Cov qauv no xyuas kom meej tias cov alloy ua tau raws li qhov yuav tsum tau ua kom zoo, muaj pes tsawg leeg, thiab cov khoom siv tshuab hauv siab - kub thiab corrosive daim ntawv thov.
Q: Qhov kub siab tshaj plaws rau Inconel 800 yog dab tsi?
A: Inconel 800 alloy tuaj yeem ua haujlwm tau zoo ntawm qhov kub thiab txias txog li 1100℃F (593 degree). Rau cov ntawv thov uas muaj qhov kub siab dua, cov khoom sib txawv xws li Incoloy 800H thiab 800HT feem ntau nyiam vim lawv qhov kev txhim kho nkag siab thiab thermal stability.
Q: Qhov txawv ntawm Inconel 800 thiab 800H yog dab tsi?
A: Qhov sib txawv tseem ceeb nyob hauv cov ntsiab lus carbon thiab grain loj. Inconel 800H muaj cov pa roj carbon ntau dua (0.05% - 0.10%) thiab tswj cov qoob loo, uas ua rau nws ua tau zoo dua ntawm qhov kub thiab txias piv rau tus qauv Inconel 800.
Cim npe nrov: incoloy 800/800h/800ht yeeb nkab, Tuam Tshoj incoloy 800/800h/800ht yeeb nkab lwm tus neeg
