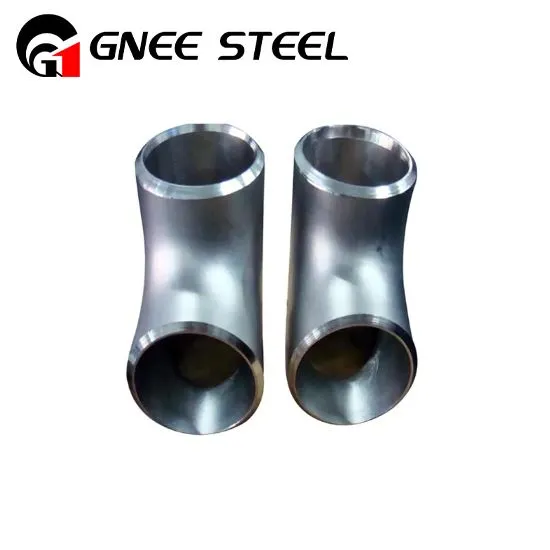

Hastelloy C22 Buttweld Fittings
Hastelloy C22 Buttweld Fittings
Hastelloy C22 Buttweld Fittings
Hastelloy C22 Buttweld Fittings

Hastelloy C22 Buttweld Fittings

Qee hom Hastelloy C22 Buttweld Fittings muaj xws li lub luj tshib, tees, reducers, caps, thiab stub kawg. Lawv muaj nyob rau hauv ntau qhov ntau thiab tsawg thiab teeb tsa kom tau raws li cov kev cai tshwj xeeb ntawm cov txheej txheem kev lag luam sib txawv.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Hastelloy C22 Buttweld Fittings yog ib hom yeeb nkab fittings ua los ntawm kev ua haujlwm siab nickel-based alloy hu ua Hastelloy C22. Cov hlau no paub txog nws qhov tshwj xeeb tiv thaiv corrosion, tshwj xeeb tshaj yog nyob rau hauv ib puag ncig hnyav heev zoo li cov uas pom hauv kev ua tshuaj, petrochemical, thiab kev lag luam pov tseg.
Hastelloy C22 muaj chromium, molybdenum, thiab tungsten, uas ua rau nws muaj zog tiv taus pitting, crevice corrosion, thiab kev nyuaj siab-corrosion tawg. Cov fittings no feem ntau yog siv los txuas cov kav dej lossis cov raj hauv cov ntawv thov kub thiab siab siab uas cov ntaub ntawv txheem yuav ua tsis tiav.

Hastelloy Alloy C22 Butt Weld Yeeb Nkab Fittings Specification:

Txuj	ASME / ANSI B16.9, ASME / ANSI B16.11, ASME / ANSI B16.28, ASME B16.5, MSS SP-43, GB12459, GB / T13401, GB / T14383, SH3406, SH34408, thiab lwm yam .
Lub npe	ASTM / ASME B 366 / SB 366
Loj	Seamless 1/2" - 10", Welded 1/2" - 48"
Teem caij	Sch 5 TO Sch XXS.
Qib	Hastelloy C22 Buttweld Fittings (UNS N06022), 2.4602
Phab ntsa Thickness	los ntawm 2 mus rau 40 mm.
Hom	Seamless / Welded

HASTELLOY C22 BUTTWELD FITTINGS sib npaug qib

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Hastelloy C22	N06022	2.4602	-	NiCr21Mo14W	wb 6022	-	-

CHEMICAL COMPOSITION ntawm HASTELLOY ALLOY C22 BUTTWELD FITTINGS

Qib

C22

0.010

12.5 – 14.5

0.50

0.08

2.00 – 6.00

0.02

2.5

20 – 22.5

2.5 – 3.5

0.35

Bal

MECHANICAL PROPERTIES NTAWM HASTELLOY Alloy C22 BUTTWELD FITTINGS

Qib	Qhov ntom	Melting Point	Yield zog (0.2% Offset)	Tensile zog	Elongation
C22	8.69g 3	1399 degree (2550 degree F)	Psi - 45000, MPa - 310	Psi – 1, 00, 000 , MPa – 690	45 %

Nickel Hastelloy Short Radius Elbow

Hastelloy C22 Buttweld Fittings Cov txiaj ntsig suav nrog:

High-kub kuj:Hastelloy C22 tuaj yeem tiv taus qhov kub thiab txias, ua rau nws tsim nyog rau kev siv kub kub hauv kev lag luam xws li kev ua tshuaj lom neeg, petrochemical, thiab tsim hluav taws xob.
Durability:Lub zog thiab toughness ntawm Hastelloy C22 xyuas kom meej tias cov fittings yog ruaj thiab muaj peev xwm tswj tau cov ntawv thov siab nrog kev yooj yim.
Tshuaj tiv thaiv:Vim nws qhov tshwj xeeb muaj pes tsawg leeg, Hastelloy C22 qhia tau zoo heev tiv thaiv ntau yam tshuaj, suav nrog cov kua qaub muaj zog, alkaline daws, thiab cov tshuaj oxidizing.
Weldability:Hastelloy C22 Buttweld Fittings tuaj yeem ua tau yooj yim welded siv cov txheej txheem vuam, ua kom muaj kev sib txuas ntawm cov kav dej lossis cov kav dej.
Kev kho qis:Qhov kev tiv thaiv corrosion thiab kav ntev ntawm Hastelloy C22 fittings txo qhov xav tau kev tu thiab hloov ntau zaus, ua rau txo cov nqi mus sij hawm ntev.
