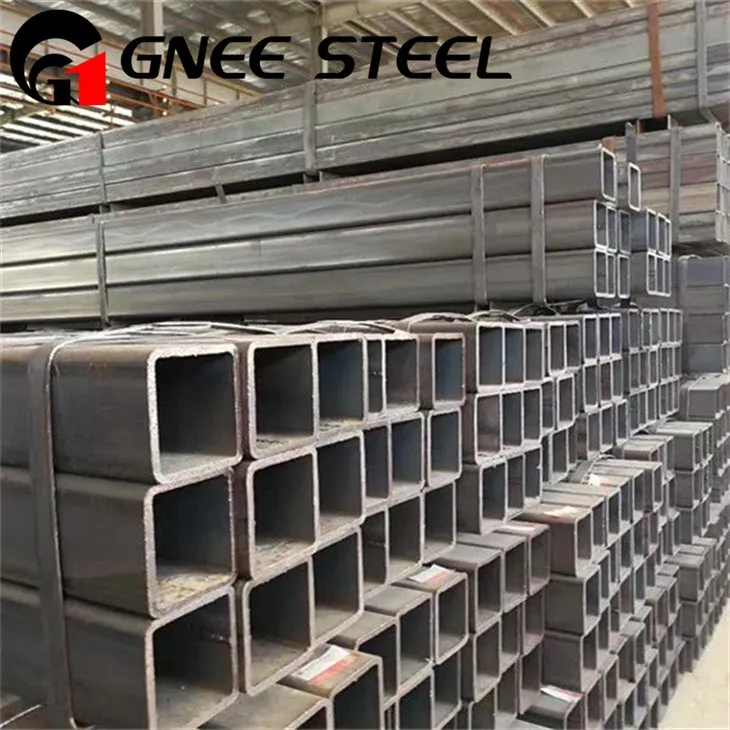

AISI 4130 Chromoly Molybdenum Square Steel Tube
Qhov ntau thiab tsawg: Ansi B36.19m, Ansi B36.10
Hom: Seamless
Qhov ntau thiab tsawg: 1 ", 2", 3 ", 4", 5.5 ", 5.5", 5. ", 5.", 5. ", 5", 5 ", 5"
Thickness: sij hawm 80, xs, 120, 160, xxs, tuab ntau dua muaj thaum thov
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Gnee 4130 Chromoly Molybdenum Square Steel Tube Tube qhia
AISI 4130 Chromoly Molybdenum Square raj
4130 square steel tubing yog heev ras ntawm lub zog, durability rau kev sib tw yog qhov tseem ceeb rau kev sib tw ua kom zoo nkauj {}}} Txuas ntxiv, 4130 chrome-molybdenum hlau tuaj yeem muab welded siv cov txheej txheem ib txwm muaj, ua rau nws zoo tshaj plaws rau kev fabrication thiab customization rau kev qhia tshwj xeeb {}}
4130 square steel raj yog hais txog ib hom steel raj uas yog tsim los ntawm 4130 chrome-molybdenum hlau alloy yog lub ntsiab lus ntawm ntau yam ntawm lub npe:
4130 Alloy: Cov alloy no feem ntau yog feem ntau raws li cov ntsiab lus tseem ceeb, thiab lwm yam kab mob chrome-molybenum siv hauv aerospace, tsheb, thiab Kev lag luam tsheb kauj vab, nrog rau cov ntawv thov qauv uas yuav tsum muaj lub zog siab thiab durability.
Cov raj ntawm cov duab: qhov no qhia meej cov duab ntawm cov raj steel {{square raj muaj nyob rau hauv cov ntaub ntawv uas yuav tsum muaj cov ntawv sib npaug, cov qauv sib npaug, lossis cov tshuab sib npaug.
4130 square steel raj yog xav txog nws txoj kev sib tw ua ke muaj lub zog uas muaj zog thiab cuam tshuam nrog kev sib tw tau zoo heev rau ntau yam hauv kev sib tw ntawm cov hlua dav hlau {}} Txuas ntxiv, 4130 chrome-molybdenum hlau tuaj yeem muab welded siv cov txheej txheem ib txwm muaj, ua rau nws zoo tshaj plaws rau kev fabrication thiab customization rau kev qhia tshwj xeeb {}}
Gnee AISI 4130 Chromoly Square Store Store Cov Ntawv Tshwj Xeeb
4130 Chromoly Steel Square Tube Cov Lus Qhia Tshwj Xeeb
|
Ntiag tug |
Cov lus qhia |
|---|---|
|
Khoom Siv Khoom |
4130 Chromoly hlau (tsis muaj K23030) |
|
Tshuaj Muaj Tshuaj |
C: {{0.28-0.33%, cr: {0.80-1.10 {{{{{{{{{% |
|
Txheem Qhov Dimension |
|
|
• Lub qhov loj sab nraud |
10 × 10mm - 250 × 250mm (ib txwm muaj muaj ntau thiab tsawg |
|
• Ntau yam phab ntsa tuab |
0.9 hli - 25mm (raug: 1.5mm / 3.0mm / 6.0mm) |
|
• Tus Qauv Ntev |
Tsau: 6M / 6.1m; Random: {5-12 m |
|
Cov Khoom Siv Lub Cev |
|
|
• qhov ceev |
7.85 g / cm³ |
|
• HARDNESS (annealed) |
HB Tsawg dua li lossis sib npaug rau 179 |
|
• HARDNESS (TEMPERED) |
HRC 22-35 (yuav tsum tau kho tshav ntuj sov) |
|
Cov Khoom Siv Neeg Kho Tshuab |
|
|
• Lub zog tensile |
670 MPA (anealed) → 930+ mpa mpa (tempered) |
|
• Paib Lub Zog |
Ntau dua los yog sib npaug rau 435 mpa |
|
• elongation |
Ntau dua los yog sib luag rau 17% (50 hli gauge ntev) |
|
Muaj cov qauv siv |
|
|
• tubing txheem |
ASTM A519 / en 10210-1 |
|
• Aerospace Cov Khoom Siv STD |
Ams 6371 / ams-t -6736 |
|
• Ntawv pov thawj |
ASTM A500 (Tsev Tsim Qauv) |
|
Kev kho cov npoo npoo |
|
|
• Kev Kho Mob Yooj Yim |
Pickling & Phosphating, Sandblasting (Sa2.5) |
|
• Kev tiv thaiv kev tiv thaiv |
Kub-DIP Galvanizing (ISO 1461), tawv chrome plating (Ams 2406), Hmoov txheej (AAMA 2604) |
|
• Kev kho siab heev |
Electroless npib (Ams 2404), QPQ Salt Da Dej Da Dej Da Dej |
|
Cov Kev Siv Raug Raug |
|
|
• aerospace |
Tsaws iav Txhawb cov leeg, cav mount qauv qauv |
|
• Automotive engineering |
Yob tawb (SAE J2532), kev ncua sijhawm (phab ntsa siab dua lossis sib npaug nrog 3 hli) |
|
• Muaj khoom siv |
Daim Hlau Thooj Voos Kheej Kheej, Txhaj tshuaj Moulder, Roj Laum Kav |
|
• Cov khoom siv tshwj xeeb |
Tsheb kauj vab sib tw thav ntawv (CEN / TS 15981), UAV load-cov kabmob qauv |
| Chemistry Cov Ntaub Ntawv: 4130 alloy steel | |
| Lub ntsiab | Feem puas |
| C | 0.28 - 0.33 |
| Cr | 0.8 - 1.1 |
| Zaum fe | 97.3 - 98.22 |
| Mn | 0.4 - 0.6 |
| Mo | 0.15 - 0.25 |
| P | 0.035 Max |
| Si | 0.15 - 0.35 |
| S | 0.04 max |
Gnee 4130 Chromoly Molybdenum Square raj
4130 Chromoly Hlau Square Tube Ua Lag Luam Cov Qauv Loj
|
Nominal loj (hli) |
Tiag tiag o . d . (hli) |
Txheem tuab (hli) |
Theoretical hnyav (kg / m) |
||
|---|---|---|---|---|---|
|
20×20 |
19.8×19.8 |
1.2/1.5/2.0 |
0.72/0.89/1.16 |
||
|
25×25 |
24.8×24.8 |
1.5/2.0/2.5 |
1.15/1.49/1.81 |
||
|
40×40 |
39.5×39.5 |
2.0/2.5/3.0 |
2.25/2.76/3.26 |
||
|
50×50 |
49.8×49.8 |
2.0/2.5/3.0 |
2.94/3.63/4.30 |
||
|
60×60 |
59.5×59.5 |
2.5/3.0/4.0 |
4.35/5.17/6.73 |
||
|
80×80 |
79.8×79.8 |
3.0/4.0/5.0 |
7.10/9.30/11.37 |
||
|
100×100 |
99.5×99.5 |
4.0/5.0/6.0 |
11.76/14.45/17.00 |
North American imperial txheej txheem
|
Nti loj |
Metric sib npaug |
Cov tuab tuab (hauv) |
|---|---|---|
|
1×1 |
25×25 |
0.065/0.083 |
|
1.5×1.5 |
38×38 |
0.095/0.120 |
|
2×2 |
50×50 |
0.120/0.188 |
|
3×3 |
75×75 |
0.188/0.250 |
Gnee Pab Pawg Hoobkas Ib puag ncig
Gnee Group AISI 4130 Chromoly Molybdenum Hlau Tube Ib puag ncig
Gnee Pab Pawg 4130 Chromoly Square Steel Tube Ntim
Gnee Pab Pawg 4130 Chromoly Square raj Ntim
Gnee Pab Pawg Kev Ntsuas
Gnee Group AISI 4130 Chromoly Molybdenum Kev Ntsuas
Cov FAQ
1. Dab tsi yog AISI 4130?
AISI 4130 yog lub chromoly steel, tseem hu ua chrome Moly steel {} Nws yog qhov sib npaug, kev sib npaug, thiab tshuab {4 4}}
2. Puas muaj cov hlau chrome-molybdenum hlau zoo dua li cov hlau?
Dab tsi paub qhov txawv Chrome-Molybdenum hlau los ntawm lwm hom steel yog nws lub zog tshaj plaws tsis muaj kev sib tw lossis dej noo .
{{0 {}}} yuav 4130 chrome-molybdenum steel hlau xeb?
Ob qho tib si 4140 thiab 4130 tus hlau yog cov hlau loj uas muaj lub zog zoo, kev ua tsis tau zoo, thiab corrosion tsis kam {}}
{{04. yog 4130 ib cov roj carbon hlau?
4130 Cov hlau roj hmab yog cov siv roj carbon tsawg nrog kwv yees li ntawm cov steel thiab moly beld thiab moly beld thiab tuaj yeem kho cua sov yooj yim dua li lwm cov hlau me me.
Cim npe nrov: AISI 4130 Chromoly Molybenum Square Steel Tube Hlau, Tuam Tshoj AISI 4130 Chromoly Molybenum Molybenum
