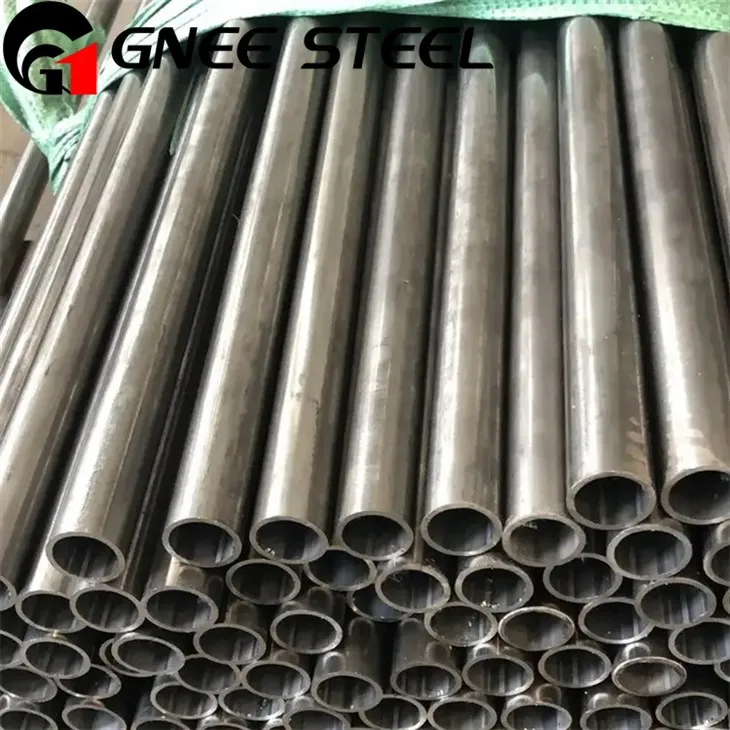

4130 chromium molybdenum steel hloov yeeb nkab
Sab nraud lub cheeb: 4 rau 219mm
Phab Ntsa Thickness: 0.5 txog 20 hli
Ntev: Ib Leeg, Ob Chav Random & Txiav Ntev
Pib: 5 rau xxh
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Gnee 4130 Chromium Molybdenum Rauv Yeeb Nkab Ua Yeeb Yam
4130 chromium molybdenum steel yeeb nkab
4130 alloy steel yeeb nkab yog ib qho chromium steel uas yuav tsum muaj zog thiab siv hluav taws xob, siv tau los tsim cov qauv txheej txheem xws li thav duab, Shafts thiab cov kav dej . Tsis tau siv nws cov khoom siv kho cua sov, txuas ntxiv txhim kho nws qhov kev ua tau zoo hauv qhov chaw hnyav.
Gnee Alloy 4130 Chromium Molybdenum Hlau Steel Hloov Yeeb Nkab Daim Ntawv Tshwj Xeeb
4130 Chromoly Hlau Tubing Kev Tshwj Xeeb
| Cov cuab yeej qeb | Cov ncauj lus kom ntxaws / Cov lus piav qhia |
|---|---|
| Txheem Qhov Dimension | Od (hli):6 - 500 (Customizable) Phab ntsa tuab (hli): 1 – 50 Ntev (m):6 (tus qauv), customizable txog 12 |
| Tswj qauv | - ASTM A519 (Seamless Neeg Kho Tshuab Tubing) - Qeb Ams 6371 (AERPARACACE) - EN 10297 (EU) - DIN 17200 (Lub teb chaws Yelemees) |
| Nto Kho | - Pickled & phosphated (tiv thaiv xeb) - Sandblasted / Tua Peened (Adhesion Prep) - Zinc Plated (corrosion tawm tsam .) - precision hauv av / polished |
| Kev nyuaj | - Annealed:170-220 hb - Quenched & tempered (q & t):{{0 {}} hrc (≈ 250-320 hb) Sib txawv nrog kev kho cua sov |
| Ceev | 7.85 g / cmà (sib npaug rau cov roj carbon hlau) |
| Cov Khoom Siv Cov Khoom Siv | Cov Kev Siv Chemistry (ASTM A519): - C: 0.28-0.33% - MN: 0.40-0.60% - CR: {0.80-1.10% - Mo: 0.15-0.25% - Si: 0.15-0.35% - P / S: Tsawg dua lossis sib npaug rau 0.035% |
| Cov Khoom Siv Neeg Kho Tshuab | Q & T Mob: - Lub zog tensile: ntau dua los yog sib npaug rau 670 MPA - Tshaj tawm lub zog: ntau dua los yog sib npaug rau 435 mpa - elongation: ntau dua los yog sib npaug rau 12% |
| Thawj cov ntawv thov | Aerospace:Tsaws iav, lub cav mounts Automotive:Yob tawb, tsav tsaj Muaj:Hydraulic Thooj Voos Kheej Kheej, Cov Qib Siab Zog:Laum Collars, Cheebtsam Valve Cov Kev Ua Si:Cov thav duab tsheb kauj vab, sib tw chassis |
Kev sib xyaw cov lus qhia ntawm AISI 4130
|
Qho deb |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
|
Lub min |
0.28 |
0.15 |
0.4 |
- |
- |
0.8 |
0.15 |
|
Tus zuag |
0.33 |
0.35 |
0.6 |
0.035 |
0.04 |
1.1 |
0.25 |
Gnee 4130 Chrome Moly Steel Hloov Yeeb Nkab
Sab nraud uas hla ntawm 4130 alloy steel seamless yeeb nkab
| Qhov loj | Hauv qab | Saum | ||
|---|---|---|---|---|
| nti | lub hli | nti | lub hli | |
| 1/8 rau 1 1 / 2 | 1/64 (0.015) | 0.40 | 1/64 (0.015) | 0.40 |
| Tshaj 4 txog 8 | 1/32 (0.031) | 0.79 | 1/16 (0.062) | 1.59 |
| Tshaj 12 [300] | + / - 1}% ntawm OD | |||
| Tshaj 8 txog 12 | 1/32 (0.031) | 0.79 | 3/32 (0.093) | 2.38 |
| Tshaj 1 1} / 2 mus rau 4 | 1/32 (0.031) | 0.79 | 1/32 (0.031) | 0.79 |
Gnee Pab Pawg Hoobkas Ib puag ncig
Gnee Pab Pawg 4130 Chromium Steel Hloov Yeeb Nkab Hoobkas Chaw Ib Cheeb Tsam
Gnee Group 4130 chromium molybdenum yeeb nkab ntim
Gnee Group 4130 chromium yeeb nkab ntim
Gnee Pab Pawg Kev Ntsuas
Gnee Group 4130 Crmo Steel Hloov Yeeb Ntsuam Xyuas
Cov FAQ
1. Dab tsi yog 4130 chrome-molybdenum hlau siv rau?
4130 chrome-molybdenum hlau (Chromoly) Kev xaiv siv hlau ua haujlwm yog ib qho zoo tshaj plaws ntawm kev sib tw tsheb thiab cov dav hlau uas nyiam tshaj plaws ntawm kev sib tw tsheb thiab cov dav hlau uas tau nyiam dua tshiab thaum ntxov xyoo pua 20th {7} {}
2. Puas muaj cov hlau chrome-molybdenum hlau zoo dua li cov hlau?
Dab tsi paub qhov txawv Chrome-Molybdenum hlau los ntawm lwm hom steel yog nws lub zog tshaj plaws tsis muaj kev sib tw lossis dej noo .
{{0 {}}} yuav 4130 chrome-molybdenum steel hlau xeb?
Ob qho tib si 4140 thiab 4130 tus hlau yog cov hlau loj uas muaj lub zog zoo, kev ua tsis tau zoo, thiab corrosion tsis kam {}}
{{04. yog 4130 ib cov roj carbon hlau?
4130 Cov hlau roj hmab yog cov siv roj carbon tsawg nrog kwv yees li ntawm cov steel thiab moly beld thiab moly beld thiab tuaj yeem kho cua sov yooj yim dua li lwm cov hlau me me.
Cim npe nrov: 4130 chromium molybdenum hlau hloov yeeb nkab yeeb, Suav 4130 Chromium Molybdenum Hlau Hlau Khoom Siv Yeeb Nkab Hlau
