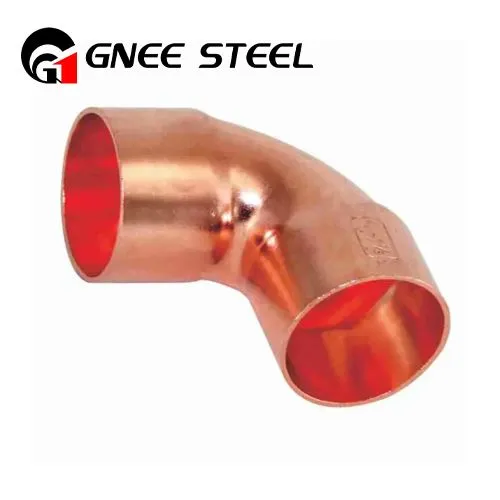

Copper Nickel Luj Tshib
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Copper Nickel luj tshib yog lub connector uas hloov cov kev taw qhia ntawm cov yeeb nkab. Txoj kev sib txuas yog threaded thiab vuam. Raws li lub kaum sab xis, muaj 45 degree thiab 90 degree 180 degree peb hom feem ntau siv, raws li qhov project kuj suav nrog 60 degree thiab lwm yam tsis zoo li lub luj tshib.
Copper Nickel luj tshib ua ntej los ntawm nws lub vojvoog ntawm curvature rau cov ntsiab lus, tuaj yeem muab faib ua lub vojvoog ntev lub luj tshib thiab lub luj tshib luv luv. Lub luj tshib ntev yog hais txog nws lub vojvoog curvature yog sib npaug li 1.5 npaug ntawm txoj kab uas hla, uas yog, R=1.5D. Lub luj tshib luv luv yog hais txog nws lub vojvoog ntawm curvature sib npaug rau sab nraud ntawm lub raj, piv txwv li R=1.0D.
Tooj Nickel Specifications
| Specifications | ASTM B366 / ASME SB366 |
| Loj | 1/2 "mus rau 24" NB rau 24 "NB hauv |
| Cov qauv | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS muaj nrog NACE MR 01-75 |
| Hom | Seamless / Welded / Fabricated |
Ntau hom tooj liab nickel luj tshib
Qee yam ntawm ntau hom tooj liab nickel luj tshib muaj xws li:
· 90 Degree Copper Nickel Luj Tshib
Koj tuaj yeem siv lub luj tshib no los hloov cov yeeb nkab kev coj mus rau 90 degrees. Qhov tseeb, qhov nkhaus lossis khoov yog 90 degrees.
· 45 Degree Copper Nickel Luj Tshib
Nws yog tsim rau cov ntawv thov uas koj xav hloov cov yeeb nkab vojvoog los ntawm 45 degrees.
· Luv Radius Copper Nickel Luj Tshib
CuNi lub luj tshib yog lub vojvoog curvature.
Nyob rau hauv luv luv lub vojvoog Cupronickel luj tshib, lub nominal loj ntawm tooj liab nickel yeeb nkab yog sib npaug zos rau lub centerline vojvoog ntawm CuNi luj tshib.
Lub vojvoog luv luv tooj liab npib tsib xee lub luj tshib yog qhov tsim nyog qhov chaw muaj qhov txwv.
Tsis tas li ntawd, lub vojvoog luv luv CuNi lub luj tshib yog tus cwj pwm los ntawm kev poob siab. Ntawm chav kawm, qhov no yog vim qhov kev hloov tam sim ntawd ntawm kev khiav.
· Ntev Radius Copper Nickel Luj Tshib
Tsis zoo li lub vojvoog luv luv tooj liab npib tsib xee lub luj tshib, ntev lub vojvoog tooj liab npib tsib xee lub luj tshib muaj lub voj voog nruab nrab, uas yog 1.5 npaug ntawm Cupronickel yeeb nkab nominal loj.
Rau lub vojvoog ntev, koj xav tau ntau qhov chaw teeb tsa. Tsis tas li ntawd, nws yog tus cwj pwm los ntawm kev poob qis.
Tsheb thauj mus los thiab ntim
Cim npe nrov: tooj liab nickel luj tshib, Tuam Tshoj tooj liab nickel luj tshib lwm tus neeg
