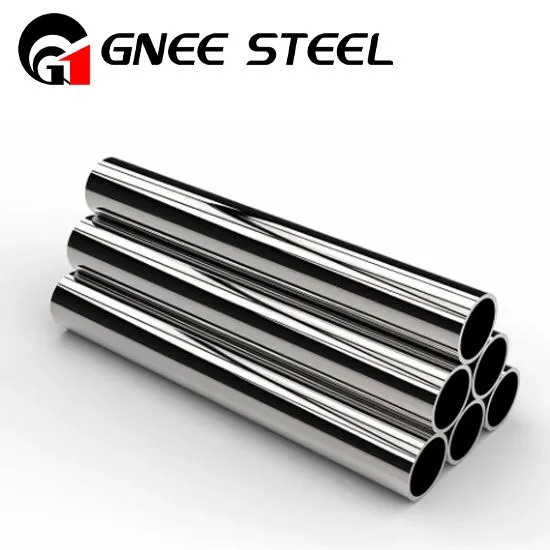

UNS N05500
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
UNS N05500 yog lub sij hawm los nag los ua kom cov nickel-tooj liab alloy. Cov hlau tsis sib nqus ntawm qhov kub hauv qab -101 degree . Kev sib xyaw ua ke ntawm cov hlau nplaum tsis tshua muaj kev sib nqus, lub zog siab thiab zoo corrosion kuj tau siv rau hauv ntau daim ntawv thov, tshwj xeeb tshaj yog cov khoom ntsuas roj zoo thiab cov khoom siv hluav taws xob. Qhov ntsuas kub tsawg ntawm UNS N05500 yog qhov zoo heev. Lub tensile thiab yield zog nce nrog txo qhov kub thiab txias, thaum ductility thiab toughness yog hardly impaired. Kev hloov pauv ntawm cov ductile-nkig tsis tshwm sim txawm tias qhov kub thiab txias qis li -200 degree . Yog li ntawd, cov hlau yog tsim rau ntau daim ntawv thov cryogenic.
Tshuaj muaj pes tsawg leeg,%
| Ni | Cu | Al | Ti | C | Mn | Fe | S | Si |
|---|---|---|---|---|---|---|---|---|
|
63.0-70.0 |
Tseem tshuav |
2.30-3.15 |
.35-.85 |
.25 max |
1.5 max |
2 0 max |
01 max |
.50 max |
Tej yam cuab yeej cuab tam
| Tensile zog (N / mm²) | 1050 |
| Pov thawj/Yield Strength (N/mm²) | 676 |
| Elongation (%) | 25 |
| Hardness Brinell | |
| Kev cuam tshuam Izod J20 degree | 70 |
Yam Khoom Lub cev
| Qhov ceev g / cm³ | 8.44 |
| Melting Temperature Range degree | 1315 - 1350 |
| Thermal conductivity W/mK | 17.2 |
| Hluav taws xob Resistivity μΩ.m15 degree | 61.5 |
| Coefficient ntawm Thermal Expansion 0-250 degree | 14.9 |
| Sib Nqus Sib Nqus Permeability | <1.01 |
| Coefficient ntawm kev sib txhuam |
Cov yam ntxwv ntawm UNS N05500
- Corrosion kuj nyob rau hauv ntau yam ntawm marine thiab tshuaj ib puag ncig. Los ntawm cov dej ntshiab mus rau non-oxidizing ntxhia acids, ntsev thiab alkalis.
- Zoo heev tiv taus siab tshaj tawm hiav txwv dej.
- Resistant rau ib puag ncig qaub-gas.
- Cov khoom siv kho tshuab zoo heev los ntawm qhov kub qis qis txog li 480C.
- Tsis-magnetic alloy.
Monel Alloy UNS N05500 Hardness
Monel Alloy UNS N05500 yog ib qho nyuaj dua Monel alloys. Nws yog qhov tsim nyog rau kev xav tau siv nyob rau hauv cov dej tob hauv cov txheej txheem, roj thiab cov roj tsim hluav taws xob, cov twj, li qub thiab cov fasteners. Qhov tshwj xeeb Monel alloy no muaj qhov nyuaj siab txog li 54 HRC ntawm Rockwell C nplai. Nws muaj lub zog dynamic siab, tso cai rau nws tawm tsam cov kev ntxhov siab uas cuam tshuam nrog cov khoom siv hauv hiav txwv thiab cov khoom raug rau cov tshuaj tsuag dej ntsev. Monel UNS N05500 muaj kev tiv thaiv corrosion tseem ceeb, uas yog qhov tseem ceeb rau ntau yam ntawm ib puag ncig. Cov qauv no alloy qhov tshwj xeeb ua ke ntawm cov khoom txhais tau tias nws yog cov khoom ntawm kev xaiv rau ntau qhov kev thov kev lag luam.
Monel Alloy UNS N05500 Corrosion Resistance
Monel Alloy UNS N05500 muaj kev tiv thaiv corrosion zoo heev. Qhov no ua rau nws zoo tagnrho rau siv rau hauv cov ntawv thov uas muaj kev tiv thaiv corrosion yog qhov tseem ceeb, xws li cov dej ntsev los yog ib puag ncig nrog acidity lossis alkalinity. Nws kuj tseem tuaj yeem siv rau hauv cov khoom uas muaj cov av noo siab lossis lwm yam corrosive yam tsis muaj kev txhawj xeeb txog kev puas tsuaj lossis kev puas tsuaj rau lub sijhawm.
