Inconel 625 Qib 1 alloy yog dab tsi?
Inconel 625 yog lub siab - zog, corrosion- tiv taus npib tsib xee-chromium superalloy uas tiv taus pitting, crevice corrosion, thiab chloride stress corrosion cracking, ua rau nws haum rau marine, aerospace, thiab tshuaj ua daim ntaub ntawv. "Qib 1" feem ntau yog hais txog qhov tshwj xeeb annealing mob (xws li, annealing ntawm qhov tsawg kawg nkaus ntawm 1600℃F) uas ua raws li ASTM B446 tus qauv, uas txawv ntawm qhov kub siab tshaj annealing (2000℃F) ntawm Qib 2.
Inconel 625 Qib 2 yog dab tsi?
IInconel 625 Qib 2 yog qib siab -kev ua tau zoo nickel-chromium-molybdenum alloy uas txawv ntawm Qib 1 hauv nws cov tshuaj ntau dua annealing kub (kwv yees li 2000℃F / 1093 degree), uas txhim kho kev nkag siab thiab kev ua haujlwm siab {8}. Qhov no ua rau nws zoo tagnrho rau marine, aerospace (jet engines), thiab tshuaj ua cov ntawv thov uas yuav tsum tau ntev{10}}lub sij hawm tiv taus hnyav, corrosive, thiab siab - qhov kub thiab txias ib puag ncig, thiab nws kuj yog resistant rau pitting corrosion, crevice corrosion, thiab hydrogen embrittlement.
Inconel 625 Qib 1 vs. Qib 2: Qhov txawv
Inconel 625 Plate Mechanical Behavior
| Qib | Khoom | Tensile Lub zog min, psi (MPa) |
Yield zog 0.2% Offset, min, psi (MPa) |
Kev kho mob hauv 2 ib or50 hli, min, % |
|
| Qib 1 | annealed | Txias-cov ntawv dov thiab strip | 120(827) | 60(414) | 30 |
| Kub-rolled ntawv thiab kub- dov phaj mus txog 2.75 nyob rau hauv. (70 mm), incl | 110(758) | 55(379) | 30 | ||
| Txias- dov phaj txog 0.375 nti (9.5 hli), suav nrog | 110(758) | 55(379) | 30 | ||
| Qib 2 | tshuaj annealed | Txias- dov daim ntawv thiab sawb, kub- dov daim ntawv, txias- dov phaj, thiab kub- dov phaj | 100(690) | 40(276) | 30 |
Kev kho cua sov sib txawv:
Inconel 625 Qib 1: Feem ntau ua rau cov tshuaj annealing ntawm qhov kub ntawm 1,600℃F (kwv yees li 871 degree). Qib 1 yog qhov kev xaiv zoo dua rau qhov chaw corrosive.
Inconel 625 Qib 2: Yuav tsum muaj cov tshuaj annealing ntawm qhov kub siab dua, kwv yees li 2,000℃F (kwv yees 1,093 degree). Qib 2 muaj qhov siab dua - qhov kub thiab txias thiab lub zog.
Cov ntawv thov tseem ceeb:
Inconel 625 Qib 1: Qib 1 feem ntau raug xaiv rau cov ntawv thov uas tshwj xeeb corrosion kuj tseem ceeb, tshwj xeeb tshaj yog nyob rau hauv marine ib puag ncig lossis xwm txheej cuam tshuam nrog cov tshuaj chloride. Nws yog feem ntau siv hauv kev lag luam petrochemical, offshore, thiab aerospace sectors.
Inconel 625 Qib 2: Qib 2 ci ntsa iab hauv siab -kev siv kub. Nws lub hom phiaj yog nyob rau hauv kev tswj hwm lub zog thiab nkag siab tsis kam ntawm qhov kub siab. Yog li ntawd, nws yog qhov nyiam nyob rau hauv daim ntawv thov xws li roj turbine engine Cheebtsam, industrial furnaces, thiab siab - kub exchangers.
Inconel 625 tus neeg muag khoom
Ntawm GNEE, Inconel 625 muaj nyob rau hauv ntau hom ntawv kom tau raws li kev xav tau ntawm kev lag luam sib txawv:
Phaj thiab Sheets (txias dov thiab kub dov)
Bars thiab Rods (puab, square, hexagonal)

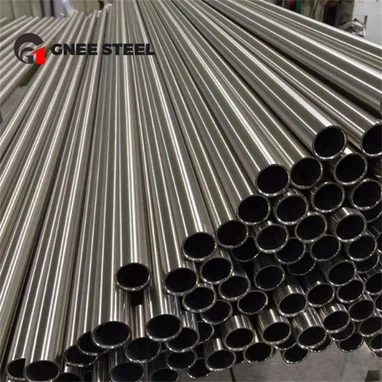

Tubes (seamless thiab welded)
Hlau thiab Strips (rau springs, fasteners, hluav taws xob siv)
Forgings thiab Custom Parts (raws li kos duab lossis specifications)
Kev xeem thiab cov ntaub ntawv: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Reports, Non-Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third-Party Inspection Reports, NABL Certified Laboratory Reports.
Ntim: Ntoo crates, npuas qhwv, steel strapping, los yog ntim raws li tus neeg yuav tsum tau muaj.
