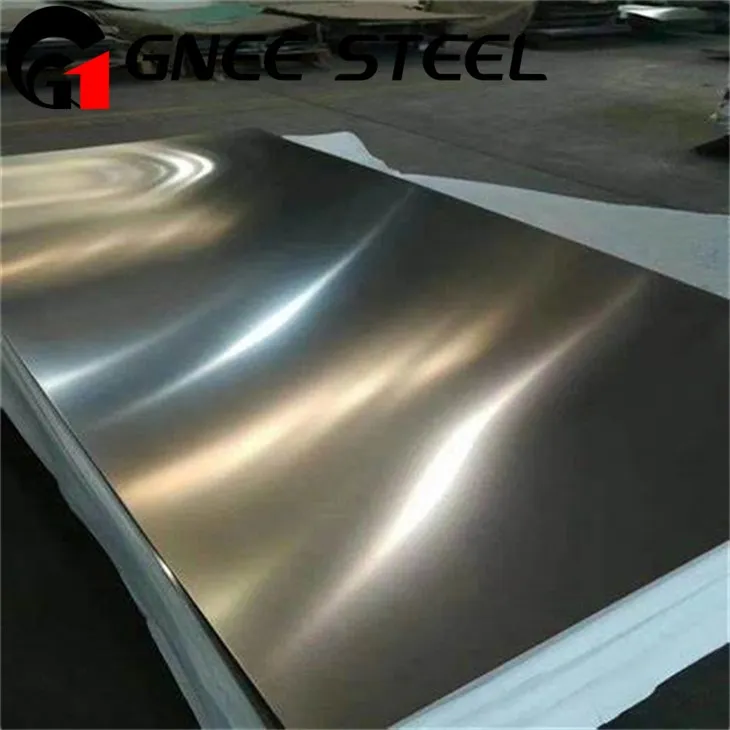

Inconel Steel 718 Polished Alloy Phaj
Cov Lus Qhia Tshwj Xeeb: Astm \/ ASME SB 670
Qhov loj me: 1000 hli X 2000 mm, 1220 mm x 2440 mm, 1500 hli X 3000 mm, 2000 mm, 2000 mm
Thickness: {0. 1mm rau 12 hli
Cov Duab: Chev, Ntawv Nyiaj, Cov Ntawv Caum, Daim Duab Dawb, Sawb, Tiaj Tus (Round (Flange)
Nto Kho: Kub Rolled (Hr), Tig Rolled (C), 2D, 2D, Satin (Yas Coated Hlau)
Hardness: Mos, nyuaj, ib nrab-nyuaj, peb lub hlis twg nyuaj, lub zog caij nplooj hlav, thiab lwm yam.
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Gnee Inconel 718 Polished Alloy Phaj Qhia
Inconel steel 718 polished phaj
Inconel 718 Polished phaj yog ib lub siab-ua haujlwm ntawm cov neeg muaj txiaj ntsig siab-ua haujlwm siab los ntawm precision polishing txheej txheem, nrog kev ua tau zoo heev. Cov phaj yog raws li npib tsib xee ({{4 4}}%), nrog alloy hais xws li li}. {{{}}}}}}. 3%) ntxiv. Tom qab kub dov \/ muab dov tawm \/ nws yog txheej txheem polished kom ua tiav daim iav nyhuv (ra tsawg dua lossis sib npaug rau 0.4μm). Nws cov lus tseem ceeb tshaj plaws yog tias nws muaj qhov ua tau zoo tshaj plaws (tensile lub zog ntawm ntau dua 650mpa ntawm 700 degree) thiab muaj cov olegidation, ib puag ncig corrosation, acid-paus nruab nrab corrosion. Los ntawm cov txheej txheem kho cua sov ntawm cov khoom siv hluav taws xob kho ({}} Lub ntsej muag polished tsis yog tsuas zoo nkauj, tab sis kuj tuaj yeem txo cov kua tsis kam thiab txhim kho corrosion tsis kam. Nws ua raws li cov qauv khoom siv AVIATIAL Xws li IT 5596 thiab yog siv cov khoom siv roj av (cov roj av thiab cov roj ntsha)
Gnee Steel 718 Polished Alloy phaj Specification
Inconel 718 Polished Sheet Cov Lus Qhia
| Hom | Chaw ua uas tsis tau haus | Tus nqi \/ lus piav qhia |
|---|---|---|
| Yooj yim sib xyaw | Npib tsib caug (ni) | 50%~55% |
| Chromium (cr) | 17%~21% | |
| Niobium (nb) | 4.75%~5.5% | |
| Molybdenum (mo) | 2.8%~3.3% | |
| Hlau (FE) | Seem | |
| Lwm Ntsiab Lus | Tsawg tsawg dua lossis sib npaug ntawm {{{{{{{}}}}}}}}}}}}}}}}}}}}}} dua lossis sib npaug nrog 0.08% | |
| Cov Khoom Siv Neeg Kho Tshuab | Tensile lub zog (RT) | Ntau dua los yog sib npaug rau 1350 mpa |
| Paib zog (RT, 0. 2% offset) | Ntau dua los yog sib npaug rau 1100 MPa | |
| Elongation (50 hli gauge) | Ntau dua los yog sib npaug rau 12% | |
| Kev nyuaj | HRC 35 ~ 45 (hnub nyoog) | |
| High-temp Zog (700 Degree) | Ntau dua los yog sib npaug rau 650 MPa | |
| Cov Khoom Siv Lub Cev | Ceev | 8.19 g \/ cm³ |
| Melting taw tes | 1260 ~ 1340 degree | |
| Thermal Condivity (20 Qib) | 11.4 W/m·K | |
| Hluav taws xob tiv thaiv hluav taws xob | 1.25 μΩ·m | |
| Sib nqus permeability | Tsawg dua los yog sib npaug rau 1.02 (cov hlau tsis muaj zog) | |
| Qho loj | Thickness Ntau Yam | {{0 {}}. 5mm ~ 20mm (Txuj Ci) Kev cai txog li 50 hli |
| Qhov dav ntau | 500 hli ~ 1500mm (tus qauv) Max 2500 hli |
|
| Ntev ntev li cas | 1000mm ~ 6000mm (tus qauv) Kev Cai Txiav Muaj |
|
| Tuab ntaus | {0. 02mm (precision polished) | |
| Nto tas | Kawm polishing | Ra tsawg dua lossis sib npaug rau 0. 4μm (daim iav tiav) Ra tsawg dua lossis sib npaug rau 0. 8μm (zoo-cilars) |
| Qhov xwm txheej nto | 2b (khaub thuas-rolled ci), ba (ci annealed), No.1 (kub-pickled) | |
| Tab tom ua | Dov Cov Txheej Txheem | Kub-Rolled + Txias-Rolled (Lis Cov Khoom Siv) |
| Kev Kho Cua Sov | Kev Kho Mob Kev Kho Mob (950 ~ 980 Qib) + Ob Hnub Laus (720 Degree \/ 8H {5}} degree \/ 8h) | |
| Polishing txheej txheem | Neeg kho tshuab polishing + electropolishing (yeem) | |
| Tus qauv | Cov Qauv Thoob Ntiaj Teb | Ams 5596 (AERGRACE) ASTM B670 (corrosion-resistant alloy) |
| Tus lej tsis yog | N07718 | |
| Corrosion Kuj | Oxidation tsis kam | Zoo heev (kev pabcuam temp tsawg dua lossis sib npaug nrog 700 degree) |
| Acid \/ alkali Kuj | Tsis kam sulfuric, hydrochloric, hydroflofric acids (zoo tshaj rau Stainless Hlau) | |
| Sulfide Kuj | Haum rau sour roj \/ roj ib puag ncig | |
| Cov Kev Siv Raug Raug | Ib tug tub rog | Cav teeb lub cav, combustors, turbine li |
| Zog Kev Lag Luam | Cov khoom siv hauv siab roj, cov khoom siv nuclear | |
| Cov Khoom Siv Tshuaj | Reactor Linings, Kev Kub Hluav Taws Xob | |
| Cov Khoom Siv Kho Mob | Siab precision phais cov twj paj |
Inconel 718 Daim Hlau & Inconel 718 Daim Ntawv Siv Tshuaj Ntau Yam
| Teem nqi | C | Mn | Si | S | CU | Zaum fe | Ni | Cr |
| Inconel 718 | 0. 08 Max | 0. 35 Max | 0. 35 Max | 0. 015max | 0. 30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
Inconel Alloy 718 Daim Hlau & Inconel 718 Cov Khoom Siv Neeg Kho Tshuab
| Lub ntsiab | Ceev | Melting taw tes | Lub zog tensile | Paib lub zog (0. 2% offset) | Elongation |
| Inconel 718 | 8.2 G \/ cm3 | 1350 degree (2460 degree f) | PSI - 1,35, 000}, mpa - 930 | PSI - 75, 000}}, mpa - 482 | 45 % |
GNEE 718 Cov Sijhawm Phaj Polished Aluminium Polished
Inconel 718 polished Sheet - Txuj Ci Kev Lag Luam Qhov Tsawg Cov Lus
| Chaw ua uas tsis tau haus | Cov Qauv Qeb | Cov Khoom Ua Lag Luam Feem Ntau | Kev nyiaj tau | Sau ntawv |
|---|---|---|---|---|
| Tuab (mm) | 0.5 - 20 | 0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 8.0, 10.0, 12.0, 15.0, 20.0 | {{{{{{0}}}. 02mm (precision Polish) ± 0.05mm (tsis tu ncua) | Cov nplooj ntawv nyias nyias (tsawg dua los yog sib npaug rau 1 hli) yuav tsum muaj kev txiav txim tshwj xeeb |
| Dav (hli) | 500 - 1500 | 600, 1000, 1219, 1250, 1500 | ± 5mm | Extra-wide (>1500mm) yuav tsum tau customization |
| Ntev (hli) | 1000 - 6000 | 2000, 2438(8'), 3000, 4000, 6000 | ± 10mm | Coil muaj (tuab tsawg dua los yog sib npaug rau 3 hli) |
| Nto roughness | Ra 0. {1 - 0. 8μm | Ra {{{{{0}}}. 4μm (Daim iav txheem), RA 0.8μμm (siab dua) | - | Kev siv hluav taws xob tuaj yeem ua tiav ra 0. 1μm |
| Kev Txiaj Ntsig | - | Kev daws Annealed (mos), hnub nyoog tawv | - | Aged hardness hrc 35-45 |
Gnee Pab Pawg Hoobkas Ib puag ncig
Gnee Group Hlau 718 Polished Phaj Hoobkas Ib puag ncig
Gnee Group Ntim
Gnee cov pab pawg inconel 718 polished phaj ntim
Gnee Pab Pawg Kev Ntsuas
Gnee Group 718 Polished Phaj Ntsuas
Cov FAQ
Q: Peb puas tuaj yeem mus saib koj lub Hoobkas?
A: Txaus siab tos txais ib zaug peb muaj koj lub sijhawm peb yuav tuaj tos koj.
Q: Koj puas muaj kev tswj hwm zoo?
A: Yog, peb tau nce BV, SGS authentication.
Q: Koj puas tuaj yeem npaj cov zaub mov xa tuaj?
A: Kom paub meej, peb muaj tus nqi xa mus tas li uas tuaj yeem tau txais tus nqi zoo tshaj plaws los ntawm cov tuam txhab nkoj feem ntau thiab muab kev pabcuam kev tshaj lij.
Cim npe nrov: Inconel Steel 718 Polished Alloy Phaj, Tuam Tshoj Inconel Hlau 718 Polished Alloy Phaj Cov Chaw Muag Khoom
