Inconel Socket Weld Fitting
Inconel Socket Weld Fitting
Inconel Socket Weld Fitting
Inconel Socket Weld Fitting

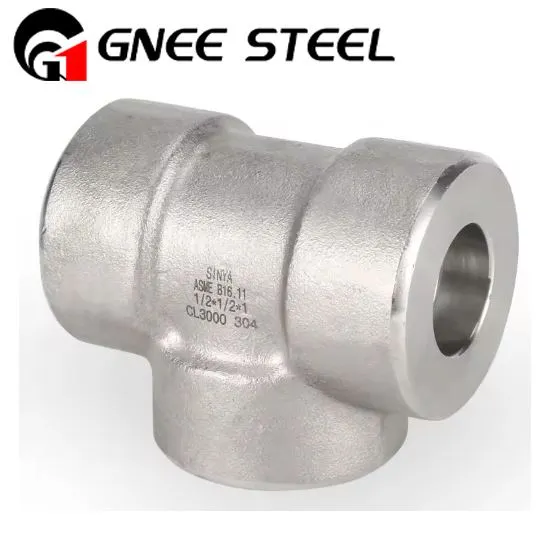

Inconel socket Weld haum

Inconel Socket weld Fitting yog cov yeeb nkab txuas nthuav dav uas cov yeeb nkab tau ntxig rau hauv qhov chaw so ntawm lub Valve, haum lossis flange. Nyob rau hauv sib piv rau buttweld fittings, Socket Weld Fittings yog tsuas yog siv rau me me yeeb nkab Diameter (Me me Bore Piping); Feem ntau rau Piping nws Nominal Diameter yog NPS 2 lossis me dua.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Inconel Qhov (socket) Weld Fittings tau ua tiav tiav kom ntseeg tau tias muaj qhov tsis zoo. Lawv muab siab malleability thiab tsis kam rau huab cua ua rau hlau degradation. Peb muab Inconel Forged Socket Weld Fitting uas muaj precision machining thiab tsim kom zoo thiab yooj yim ntawm interchangeability. Nws yog siv nyob rau hauv ob peb industries xws li dej, roj los yog kua thiab siv nyob rau hauv lub raj thiab yeeb nkab seem. Inconel Alloy Socket Weld Fittings muab cov ntaub ntawv pov thawj los ntawm kev kub siab, kub thiab kev co.

Specifications ntawm Inconel Socket Weld Fittings

Specifications	ASTM B564 thiab ASME B564
Loj	1/8 "NB to 4" NB
Cov qauv	ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799
Hom	Socketweld Fittings
Chav kawm	2000 hli, 3000 hli, 6000 hli, 9000 hli

Inconel Socket Weld Fittings Chemical Composition thiab Mechanical Properties

Cov tshuaj muaj pes tsawg leeg ntawm Inconel Socket Weld Fittings yog teev nyob rau hauv cov lus hauv qab no

Inconel 600 (UNS N06600) Lub cev muaj zog
Alloy npe	Nickel	Chromium	Hlau	Cov pa roj carbon	Manganese	Sulfur	Silicon	Tooj
Inconel 600	72.0 feeb	14. 0-17 0 min	6.0-10.00	0.15 max.	1 00 max.	0.015 max.	0.50 max.	0.50 max.

Inconel 601 (UNS N06601)
Alloy npe	Nickel	Chromium	Hlau	Aluminium	Cov pa roj carbon	Manganese	Sulfur	Silicon	Tooj
Inconel 601	58.0-63.0	21. 0-25 0 min	Tseem tshuav	1.0-1.7	0.10 max.	1 0 max.	0.015 max.	0.50 max.	1 0 max.

Inconel 625 (UNS N06625) Cov.

Alloy npe

Nickel

Chromium

Hlau

Molybe-
denum

Niobium
ntxiv rau Tantalum)

Cov pa roj carbon

Manganese

Silicon

Phosphorus

Sulfur

Aluminium

Titanium

Cobalt

Ib 625

58.0 feeb

200-23.0 feeb

5. 0 max

8.0-10.0

3.5-4.5

0.10 max.

0.50 max.

0.015 max.

0.15 max.

0.40 max.

1 0 max.

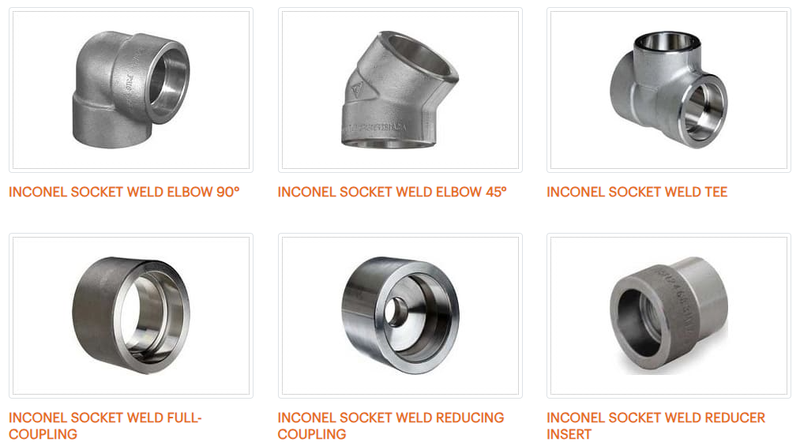

Inconel Alloy 180 Degree Elbow

Qhov zoo ntawm Inconel Socket Weld Fitting yog:

Kub kub stability.
Cov khoom siv muaj zog nrog zoo heev toughness ntawm siab kub.
Nws muaj superior corrosion kuj, kub stability, toughness thiab lub zog thiab feem ntau siv nyob rau hauv chemical ua.
