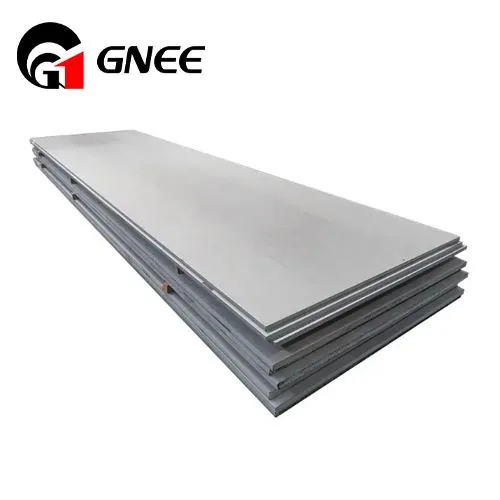

Inconel 625 Daim Ntawv

Inconel 625 yog npib tsib xee-raws li alloy tseem hu ua UNS N06625. Nws yog ib qho ntawm Inconel series ntawm alloys, muaj cov ntsiab lus tseem ceeb xws li npib tsib xee (Ni) thiab chromium (Cr), nrog me me hlau (Fe), molybdenum (Mo), niobium (Nb) thiab titanium (Ti).

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Ib 625Cov nplooj ntawv nthuav tawm lub zog zoo dua thiab ua haujlwm ntev thiab tau txais txiaj ntsig rau lawv cov oxidation zoo thiab corrosion kuj. Tuav lawv txoj kev ncaj ncees thoob plaws qhov kub ntawm qhov sib sib zog nqus los ntawm kev sib sib zog nqus-kryogenic mus rau 1000 degrees Celsius / 2000 degrees Fahrenheit, Inconel 625 nplooj ntawv, feem ntau hu uaNickel Alloy625, yog nickel-based, siv columbium thiab molybdenum ua cov hlau refractory. Thaum lub sij hawm sim nyob rau hauv hostile corrosive tej yam kev mob, Inconel® 625 tso tawm nyob ze-impenetrable tsis kam rau ntsev dej, nruab nrab ntsev, dej tshiab, huab cua thiab alkaline tshuaj.

Peb muab cov khoom no nyob rau hauv ntau qhov ntau thiab tsawg, qib, specifications, qhov ntev, thickness thiab customize cov Inconel Sheets thiab daim hlau raws li ib tug muab kev cai ntawm cov neeg.

ALLOY 625 Phaj sib npaug qib

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	LOSSIS
Ib 625	2.4856	N06625	SIB 625	NAOJ 21	ХН75МБТЮ	NC22 DNB4M	NiCr22Mo9 Nb	ЭИ602

INCONEL 625 Cold Rolled Sheet Chemical Composition

Qib

Nb + Ta

Ib 625

0.10 max

0.50 max

0.015 max

58.0 feeb

20.0 – 23.0

5. 0 max

8.0 – 10.0

1 0 max

0.40 max

3.15 – 4.15

ALLOY 625 Sheet Mechanical Properties

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
Ib 625	8,4g 3	1350 degree (2460 degree F)	Psi – 135, 000, MPa – 930	Psi – 75, 000, MPa – 517	42.5 %

inconel pipe welding

Daim ntawv thov rau alloy 625

Cheebtsam rau cov txheej txheem tshuaj organic uas muaj cov tshuaj chlorides, tshwj xeeb tshaj yog cov uas siv cov kua qaub chloride catalysts
Digesters thiab bleaching tanks hauv kev lag luam pulp thiab ntawv
Absorber towers, reheaters, flue gas inlet baffles, kiv cua (ntub), agitators, baffles thiab flues hauv flue gas desulphurization systems
Kev tsim cov khoom siv thiab cov khoom siv rau kev siv hauv cov roj acid ib puag ncig
