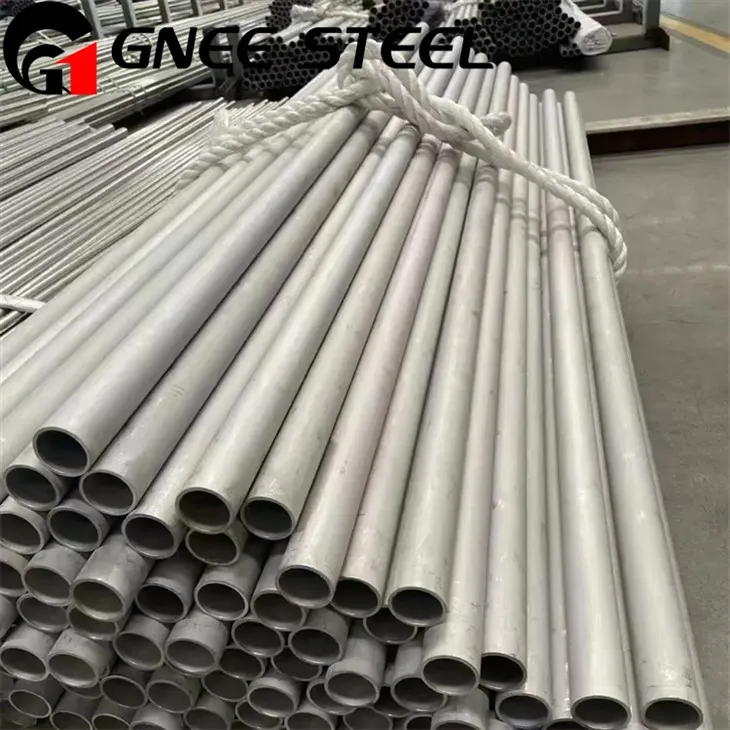

Incoloy Alloy 825 Hloov Chaw Seamless
Qhov ntau thiab tsawg xyoo: 1/2 "- 12" od
Tshooj: {3.00 - 219.10 hli
Thickness: 0.40 - 12.70 hli
Ntev: Ib Leeg, Ob Chav, Random, thiab Txiav -- ntev
ASTM B163 UNED N08825 WELDED YEEB NKAB
Qhov ntau thiab tsawg xyoo: 1/2 "{- 12" Od, Qhov ntau thiab tsawg: 25 swg- 10 swg
OD: {6.35 - 114.3 hli Od
Thickness: 0.8 - 12.7 hli
Ntev: txog li 26 meters
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Incoloy Alloy 825 Hloov Chaw Seamlesskev piav txog
Gnee Incoloy Alloy 825 Hloov Chaw Seamless
Incoloy 825 alloy round seamless tubing is a corrosion-resistant nickel-iron-chromium alloy suitable for demanding applications such as chemical processing and oil/gas. Nws muaj kev tiv thaiv zoo heev rau cov acids, alkalis, thiab kev nyuaj siab corrosion tawg. Nws yog lub npe hu rau nws cov kev kho zoo heev zog, weldability, thiab siab- kub ua tau zoo. "Seamless" yog hais txog qhov tseeb tias nws yog tsim los ntawm extruding ib qho khoom lag luam muaj zog, ua rau muaj cov khoom muaj zog haum rau high- qhov kev siv siab.
Incoloy Alloy 825 Hloov Chaw Seamless Specification
| Cov lus qhia | : | ASTM B423 / ASME SB 423 |
| Qho loj | : | ASTM, ASME thiab API |
| Seamless 825 kav | : | 4 rau 219mm WT: 0.5 txog 20 hli |
| Welded 825 kav dej | : | 5.0 hli - 1219.2 mm |
| EFW 825 kav dej | : | 5.0 hli - 1219.2 mm |
| Qhov loj | : | 15 "NB rau 150" NB hauv |
| Tshwj Xeeb Hauv | : | Qhov loj loj uas loj |
| Teem caij | : | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| Ntaus | : | Seamless / Erw / Welded / Fabricated / LSAWW PIPES |
| Puab | : | Puag ncig, hydraulic thiab lwm yam |
| Qho ntev | : | Ib leeg random, ob npaug random & txiav ntev. |
| Qhov kawg | : | Tiaj kawg, beveled kawg, tsuj las |
Incoloy Alloy 825 Hloov Chaw Seamless Specification
Incoloy alloy 825 Tubes Tshuaj Muaj Zog
| Lub ntsiab | Alloy 825 |
| C | 0.05 max |
| Mn | 1.00 Max |
| Si | 0.05 max |
| S | 0.03 max |
| CU | 1.50 – 3.00 |
| Zaum fe | 22.00 min |
| Ni | 38.00 – 46.00 |
| Cr | 19.50 – 23.50 |
Incoloy 825 Tubing Neeg Kho Tshuab & Cov Khoom Siv Lub Cev
| Lub ntsiab | Incoloy Alloy 825 |
| Ceev | 8.14 g / cm3 |
| Melting point | 1400℃(2550℃f) |
| Lub zog tensile | PSI - 80,000, MPa - 550 |
| Tawm Zog (0.2% offset) | Psi - 32,000, MPA - 220 |
| Elongation | 30 % |
Qhov loj me ntawm Incoloy Alloy 825 Hloov Chaw Seamless
|
1/8 "IPS (.405" OD) |
{{03 1 / 2 "IPS (4.000" OD) |
|
Sch 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
1/4 "IPS (.540" OD) |
4 "IPS (4.500" OD) |
|
Sch 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
3/8 "IPS (.675" OD) |
5 "IPS (5.563" OD) |
|
Sch 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
1/2 "IPS (.840" OD) |
6 "ips (6.625" Od) |
|
Sch 5, 10, 40, 80, 160, XXH |
Sch 5, 10, 40, 80, 120, 160, XXH |
|
3/4 "IPS (1.050" OD) |
8 "ips (8.625" Od) |
|
SCH 10, 40, 80, 160, XXH |
Sch 5, 10, 40, 80, 120, 160, XXH |
|
1 "IPS: (1.315'od) |
10 "IPS (10.750" OD) |
|
Sch 5, 10, 40, 80, 160, XXH |
Sch 10, 20, 40, 80 (.500), Muaj tseeb 80 (.500) |
|
1-1 / 4 "IPS (1.660" OD) |
12 "ips (12.750" OD) |
|
SCH 10, 40, 80, 160, XXH |
Sch 10, 20, 40 (40 (.375), Tseeb40 (.406), Sch80 (.500) |
|
1-1 / 2 "IPS (1.900" OD) |
14 "ips (14.000" OD) |
|
SCH 10, 40, 80, 160, XXH |
Sch10 (.188), Sch40 (.375) |
|
2 "IPS (2.375" OD) |
16 "IPS (16.000" OD) |
|
SCH 10, 40, 80, 160, XXH |
Sch10 (.188), Sch40 (.375) |
|
{{02 1 / 2 "IPS (2.875" OD) |
18 "IPS (18.000" OD) |
|
SCH 10, 40, 80, 160, XXH |
Sch-40 (.375) |
|
3 "IPS (3.500" OD) |
|
|
Sch 5, 10, 40, 80, 160, XXH |
|
Incoloy alloy 825 Hloov Chaw Seamless Tube Siab Kev Ntsuas
| Lub yeeb nkab
(hauv.) |
Phab Ntsa Thickness Ntawm Cov Yeeb Nkab (Nti) | |||||||
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Ua haujlwm siab (PSIG) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Incoloy Alloy 825 Hloov Chaw Seamless Cov Khaub Ncaws
Gnee Steel muab plaub txoj kev kho cov tshuaj rau Incoloy Alloy 825 Hloov Chaw Seamless: Pickling, Daim iav Polishing, Polishing, thiab Sandblasting.
Incoloy Alloy 825 Hloov Chaw Seamless Tube Ntau Lawm
Gnee Steel muab cov kev kho mob kho cua sov hauv qab no rau Incoloy Alloy 825 Hloov Chaw Seamless: Annealing, Kev Siv + Laus. Tsis tas li ntawd, GNEE steel kuj tseem muab cov kub ua haujlwm kub thiab ua haujlwm txias, uas yog kub dov thiab txias kos duab.
Incoloy Alloy 825 Hloov Chaw Txiav Tub Ntse Ntim
Txhawm rau kom ua kom muaj kev nyab xeeb ntawm koj cov khoom, peb yuav muab kev paub zoo, ib puag ncig zoo, yooj yim thiab siv cov khoom siv ntim yooj yim.
Hais Txog Gnee Steel
GNee steel tshwj xeeb hauv kev tsim khoom thiab muag ntawm ntau qhov nickel {}}}}}}}}}}}}}}}}}} 800H / HT, Incoloy 825, Monel Alloy 400, Monel K500, thiab High-kub alloys. Gnee Steel cov khoom yog dav siv nyob rau hauv Aerospace, tshuaj lom neeg, hluav taws xob hluav taws xob, siv hluav taws xob, thiab lub zog hluav taws xob, thiab lub zog nuclear zog, thiab lub zog nuclear lub zog. Peb tseem muab cov kev cai ua kom haum rau cov neeg siv khoom xav tau. Rau alloy tus nqi nug cov lus nug lossis customized alloy cov kev daws teeb meem, thov hu rau peb rau ib nqe lusss@gneesteel.com.
Cim npe nrov: Incoloy Alloy 825 Hloov Chaw Seamless, Tuam Tshoj Incoloy Alloy 825 Hloov Lub Tub Ntseg Tube
