Hastelloy C276 Tube Flange
C276 Tube Flange
C276 Flange

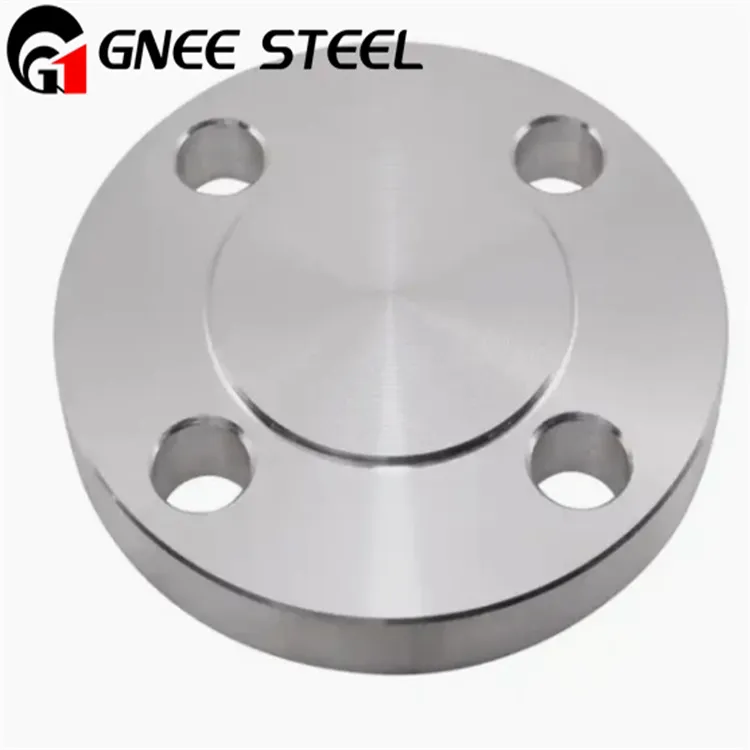

Hastelloy C276 Tube Flange

Hastelloy C276 Tube Flange yog tsim los ntawm nickel chromium molybdenum alloy uas hu ua hastelloy. Cov khoom muaj xws li 50.99% nickel, 14.5% chromium, 15% molybdenum thiab carbon, manganese, silicon, sulfur, cobalt, hlau thiab phosphorus nyob rau hauv nws. Hastelloy C276 Tube Flange muaj cov ntsiab lus siab melting ntawm 1370 degrees Celsius. Qhov siab melting point no tso cai rau kev ua haujlwm siab dua ntawm flanges. Cov khoom kuj muaj 790MPa yam tsawg kawg nkaus tensile zog thiab 355MPa yam tsawg kawg nkaus yield zog.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Hastelloy C276 Tube Flangeyog cov khoom siv ua haujlwm siab ua los ntawmHastelloy C276, nickel-chromium-molybdenum alloy muaj npe nrov rau nws qhov tshwj xeeb tiv thaiv corrosion thiab kub kub. Qhov flange no yog tsim los rau kev sib txuas thiab kev sib khi cov raj hauv kev thov cov ntawv thov uas muaj kev ua haujlwm zoo dua thiab ua haujlwm rau qhov chaw hnyav yog qhov tseem ceeb.

International Trade Names ntawmHastelloy C276 Tube Flange

UNS:	N10276
Specifications:	ASTM B564 / ASME SB 564 Cov khoom siv

Loj Teem caij Chart ntawmHastelloy C276 Tube Flange

Nickel C276 Flange	1/2 "(15 NB) rau 48" (1200NB)
ASME SB564 Alloy C276 Slip ntawm Flange	1/2 "NB - 12" NB
ASTM B564 UNS N10276 Qhov muag tsis pom Flange	1/2 "NB - 24" NB

Mechanical yam ntxwv ntawmHastelloy C276 Tube Flange

Element	Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
Hastelloy C276	8.89g 3	1370 degree (2500 degree F)	Psi – 1,15,{2}}, MPa – 790	Psi – 52, 000, MPa – 355	40 %

Hastelloy C276 Tube FlangeTxheej Txheem

Qib	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010 max	1 00 max	0.08 max	0.03 max	2.50 max	50.99 feeb*	14.50 – 16.50	4.00 – 7.00	15.00 – 17.00	0.04 max

Hastelloy C276 Tube Flange Daim ntawv thov

Kev ua tshuaj lom neeg:Zoo tagnrho rau siv nyob rau hauv reactors, tshav kub exchangers, thiab lwm yam khoom uas tsis kam mus rau corrosive tshuaj yog ib qho tseem ceeb.
Aerospace:Siv nyob rau hauv high-temperature ib puag ncig xws li dav hlau cav thiab tso pa system.
Pollution Control:Haum rau flue gas desulfurization systems thiab lwm yam kev tswj cov pa phem.
Roj & Roj:Siv nyob rau hauv offshore platforms thiab refining systems uas raug rau corrosive tshuaj yog ib qho kev txhawj xeeb.
