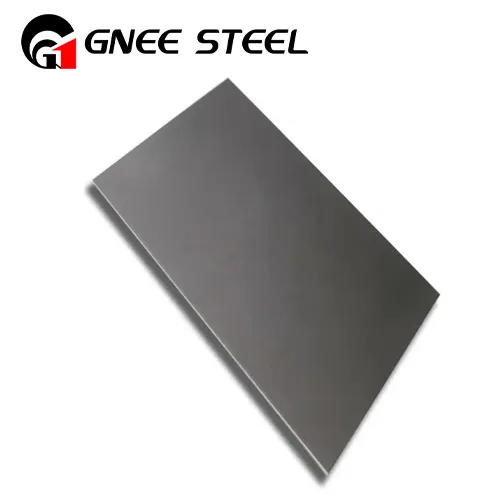

Hastelloy C22 Phaj

Hastelloy C-22 yog ntau yam npib tsib xee-chromium-molybdenum-tungsten alloy nrog kev txhim kho kev tiv thaiv rau ob qho tib si thiab hauv cheeb tsam corrosion nrog rau ntau yam khoom siv tshuaj sib xyaw.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

HASTELLOY C-22alloy (UNS N06022) yog ib qho ntawm cov paub zoo thiab muaj pov thawj nickel-chromium-molybdenum cov ntaub ntawv, cov yam ntxwv tseem ceeb ntawm cov tshuaj tiv thaiv oxidizing thiab tsis-oxidizing tshuaj, thiab tiv thaiv pitting, crevice nres, thiab kev nyuaj siab corrosion. tawg. Nws cov ntsiab lus chromium siab muab kev tiv thaiv ntau dua rau oxidizing xov xwm tshaj li tsev neeg tus qauv, C-276 alloy, thiab imparts exceptional tsis kam mus rau chloride-induced pitting, ib tug insidious thiab unpredictable daim ntawv ntawm kev tawm tsam, uas cov stainless hlau yog nquag.

Hastelloy C22 Sheet & Phaj Sib npaug Qib:

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN
Hastelloy C22	2.4602	N06022	wb 6022	-	NiCr21Mo14W

Tshuaj muaj pes tsawg leeg ntawm Hastelloy Alloy C22 Sheet & Phaj

Qib	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
Hastelloy C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 feeb *	20 – 22.50	2 – 6	12.50 – 14.50	0.02 max

Mechanical Properties ntawm Hastelloy C22 Sheet & Phaj

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
8.69g 3	1399 degree (2550 degree F)	Psi – 1, 00, 000 , MPa – 690	Psi - 45000, MPa - 310	45 %

metal hastelloy

Hastelloy C-22 Yam ntxwv

Nickel-Chromium-Molybdenum-Tungsten alloy nrog zoo tag nrho corrosion kuj piv rau lwm yam Ni-Cr-Mo alloys, xws liHastelloy C-276,C{0}} thiab alloy 625.
Zoo tiv taus pitting corrosion, crevice corrosion thiab kev nyuaj siab corrosion cracking.
Kev tiv thaiv zoo heev rau oxidizing aqueous media nrog rau cov chlorine ntub dej thiab cov khoom sib xyaw uas muaj nitric acid lossis oxidizing acids nrog chlorine ions.
Muab qhov zoo tshaj plaws tiv thaiv rau ib puag ncig uas txo thiab oxidizing tej yam kev mob ntsib nyob rau hauv cov txheej txheem ntws.
Yuav siv tau rau qee qhov mob taub hau rau cov cuab yeej cuab tam, lossis siv ntau yam ntawm lub Hoobkas tsim.
Exceptional tsis kam mus rau ntau yam ntawm cov txheej txheem tshuaj ib puag ncig xws li muaj zog oxidizers xws li ferric acids, acetic anhydride, thiab seawater thiab brine daws.
Tiv thaiv kev tsim cov qoob loo-txheej txheem precipitates nyob rau hauv weld tshav kub-tshem tawm tsam, muab zoo heev li-welded tej yam kev mob rau cov txheej txheem kev siv nyob rau hauv tshuaj-raws li industries
