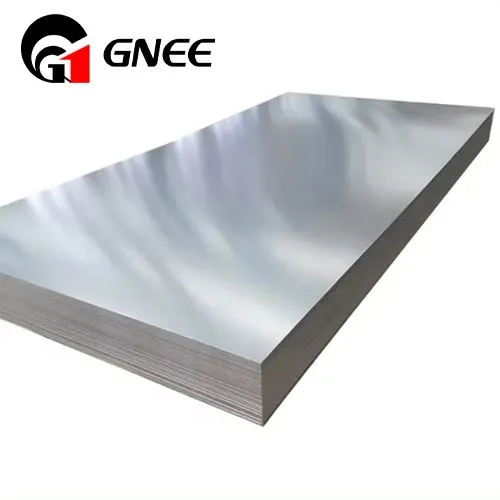

Hastelloy C-276 Daim ntawv

Hastelloy C276 yog npib tsib xee-molybdenum-chromium superalloy nrog ib qho ntxiv ntawm tungsten tsim kom muaj kev tiv thaiv corrosion zoo nyob rau hauv ntau qhov chaw hnyav.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Hastelloy C-276 (UNS N10276 / W.Nr. 2.4819) yog ib qho siv ntau heev nickel-chromium-molybdenum alloy. Ntawmsuperalloys, nws paub txog nws cov ntsiab lus siab molybdenum.
Hastelloy C-276 alloy yog zoo haum rau roj melting arc (GMA/MIG), roj tungsten arc (GTA/TIG) thiab shielded hlau arc (SMA/Stick) vuam txheej txheem.Hastelloy C-276yog qhov zoo tagnrho rau kev siv marine. Nws cov corrosion kuj ua rau nws resistant rau ntau yam corrosive tshuaj nyob rau hauv ntws seawater rau lub sij hawm ntev. Txawm li cas los xij, Hastelloy C-276 kuj tseem muaj kev ua tau zoo tag nrho ntawm qhov kub thiab txias. Nws yog qhov tsim nyog rau kev npaj cov cuab yeej ntawm ntau yam tshuaj corrosive lossis lub reactor ntawm ntau yam acidic tshuaj.

Hastelloy C-276 Tshuaj muaj pes tsawg leeg

%	Ni	Cr	Mo	W	Co	C	Mn	Si	P	S	Fe	V
Min	Tshuav	14.5	15	3	0	0	0	0	0	0	4	0
Max	Tshuav	16.5	17	4.5	2.5	0.01	1	0.08	0.04	0.03	7	0.35

Hastelloy C-276 Lub cev muaj zog

Qhov ntom	Melting ntau
8.89 g / cm³	1325-1370 degree

Hastelloy C-276 Mechanical Properties

Mechanical & Physical Properties	21⁰C	100⁰C	200⁰C	300⁰C	400⁰C
Qhov kawg Tensile Strength rau daim ntawv Tsawg dua los yog sib npaug li 5 hli tuab	750-1000
Qhov kawg Tensile Strength rau daim ntawv 5 kom tsawg dua los yog sib npaug li 20 mm tuab	700-950
Qhov kawg Tensile Strength rau bar Tsawg dua los yog sib npaug li 90 hli tuab	700-950
0.2% Yield Strength rau daim ntawv Tsawg dua lossis sib npaug li 50 mm tuab		280	240	220	195
0.2% Yield Strength rau daim ntawv 5 txog Tsawg dua lossis sib npaug li 20 mm tuab		255	255	200	170
0.2% Yield Strength rau bar Tsawg dua lossis sib npaug li 90 mm tuab		255	225	200	170
Elongation, % rau daim ntawv Tsawg dua lossis sib npaug li 5 hli tuab	30
Elongation, % rau daim ntawv 5 txog Tsawg dua lossis sib npaug li 20 mm tuab	25
Elongation, % rau bar Tsawg dua lossis sib npaug li 90 mm tuab	35
Charpy Impact V-notch txhais tus nqi / J	96 (56 thaum welded)
Charpy Impact V-notch indicidual value / J	67 (39 thaum welded)

hastelloy metal

Cov yam ntxwv ntawm Hastelloy C276

Zoo heev corrosion kuj nyob rau hauv txo ib puag ncig
Exceptional tsis kam mus rau cov kev daws teeb meem ntawm oxidizing ntsev, xws li ferric thiab cupric chlorides
High nickel thiab molybdenum cov ntsiab lus muab kev tiv thaiv corrosion zoo hauv kev txo qis ib puag ncig
Cov ntsiab lus tsis tshua muaj carbon tsawg uas txo qis cov qoob loo-txheej txheem carbide nag lossis daus thaum lub sij hawm vuam kom muaj kev tiv thaiv corrosion nyob rau hauv tshav kub-tshem tawm tsam ntawm cov pob qij txha.
Tsis kam mus rau hauv zos corrosion xws li pitting thiab kev nyuaj siab-corrosion cracking
Ib qho ntawm ob peb cov ntaub ntawv los tiv thaiv corrosive los ntawm cov roj chlorine ntub dej, hypochlorite thiab chlorine dioxide.
