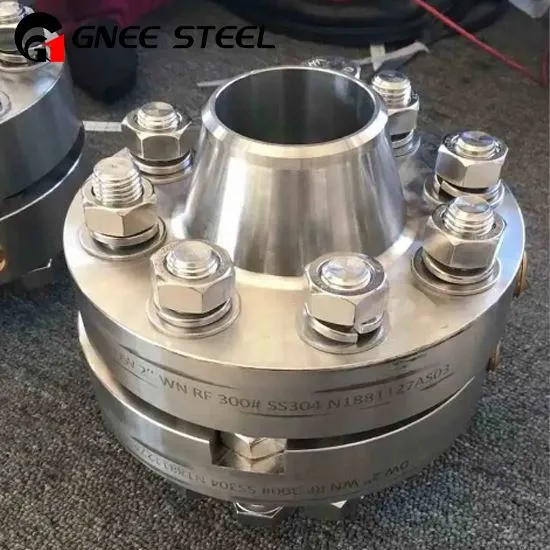

Lub orifice flange sib dhos muaj xws li cov flanges, orifice phaj, bolts, ceev, gaskets, thiab plugs. Jacking screws xyuas kom yooj yim pov tseg ntawm lub hauv paus nkag nkag. Orifice Flanges feem ntau tuaj nrog ob lub ntsej muag Raised thiab Ntiv Nplhaib Hom Joint Flange. Lawv yog, rau tag nrho cov hom phiaj ferocious, tib yam li lub caj dab weld thiab slip-on flanges nrog redundant machining.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Orifice flanges muaj cov ntsia liaj qhov rooj ntev, uas zoo meej rau ntau lub tshuab. Lawv yog cov zoo li disc zoo li lub voj voog. Orifice flanges tuaj yeem txiav txim siab lub zog thiab qhov siab ntawm cov khoom txav ntawm cov yeeb nkab. Orifice flanges muaj ntau qhov perforations rau lawv, uas yuav pab tau thaum txuas rau cov yeeb nkab lossis lawv qhov hluav taws xob. Orifice flanges yog cov tawv heev, nrog nws lub zog loj ntawm kev tawm los ntawm lawv. Lawv lub peev xwm los txhawb nqa thiab nyob hauv cov xwm txheej ntawm kev ua phem yog qhov zoo kawg li. Orifice flanges tau ntim nrog cov hlau hnyav, ua rau lawv hnyav hnyav. Xws li cov ntsiab lus alloy ua rau lawv muaj zog heev thiab ruaj khov. Cov qauv ntawm lawv tsim cim lawv txhua yam muaj zog thiab durability.

ORIFICE FLANGE STANDARD SPECIFICATIONS

Khoom npe	Orifice Flanges
Qhov Loj	1/2 "(15 NB) rau 48" (1200NB)
Chav kawm / Siab ntsuas	150 #, 300 #, 600 #, 900 #, 1500 #, 2500 #, PN6, PN10, PN16, PN25, PN40, PN64 thiab lwm yam.
Txheem / Dimensions	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS 1560-3.1, API7S-15, API7S{17}}, API605
Flange ntsej muag hom / hom kev sib txuas	Lub ntsej muag Flange (FF), tsa ntsej muag Flange (RF), Nplhaib Joint Flange (RTJ), Lap Joint Flange, Txiv neej thiab Poj Niam Flange (M&F), Loj thiab Me Tus Lus Loj-thiab-Groove Flange (T&G)
Qhov ntev	ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings
Custom Design	Raws li koj daim duab\|AS, BS, ANSI, DIN, JIS\|Kev sib npaug thiab txo qis kev teeb tsa
Material Test Certificate (MTC)	Raws li EN 10204 3.2 thiab EN 10204 3.1, Test Certificate certifying NACE MR0175, NACE MR0103
Daim ntawv pov thawj	100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, thiab lwm yam
Kev sim	Hydrostatic kuaj tshuab, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Sib nqus particle detector
Khoom siv / Machinery	Xovxwm tshuab, Pushing Tshuab, dabtsi yog khoov tshuab, Sand-blasting tshuab, fais bevelling tshuab, thiab lwm yam.
Txheej	Anti-xeb xim, roj xim dub, daj pob tshab, zinc plated, txias thiab kub dip galvanized
Keeb kwm	Tuam Tshoj
Daim ntawv thov / siv	Offshore, Roj Field, Shipbuilding, Dej System, Natural Gas, Pipe Projects, Hluav Taws Xob, thiab lwm yam.

monel orifice flanges

Orifice Flanges Cov Khoom Siv thiab Qib

Stainless hlau Orifice Flanges:ASTM A182, A240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Orifice Flanges:ASTM / ASME A / SA 182 F 44 F 45 F 51 F 53 F 55 F 60 F 61

Carbon Steel Orifice Flanges:ASTM / ASME A / SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Tsawg Kub Carbon Steel Orifice Flanges:ASTM A350, LF2, LF3

Alloy Steel Orifice Flanges:ASTM / ASME A / SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Orifice Flanges:ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 101200, 101200,

Nickel Alloy Orifice Flanges:ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N050500), N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. 27), Nr. 20 (NWS N08020)

Kev siv ntawm Orifice Flanges

Orifice flanges yog siv nyob rau hauv kev lag luam sector, tshwj xeeb tshaj yog nyob rau hauv cov roj thiab roj, lub hwj chim systems, manufacturing, thiab txheej txheem piping. Thawj qhov kev siv ntawm orifice flanges yog ntsuas cov dej ntws los ntawm cov yeeb nkab lossis lub raj los ntawm kev txuas lub qhov flange rau cov khoom siv xws li ntsuas ntsuas, cov kab sib kis, thiab ntsuas. Lwm qhov kev siv ntawm orifice flanges muaj xws li muab cov qauv kev txhawb nqa, ntsuas qhov siab ntawm ntau cov kav dej, thiab tsim kom muaj lub foob roj foob thaum txuas fittings.

Cov txiaj ntsig ntawm Orifice Flanges

Orifice flanges muaj ntau yam txiaj ntsig thiab muaj ntau yam. Lawv muab kev faib tawm kom muaj zog, txhim kho kev ua haujlwm zoo, thiab txuag lub zog. Lawv kuj yog ib qho yooj yim rau nruab thiab tswj, uas ua rau lawv muaj kev xaiv nrov rau kev lag luam kev lag luam.
