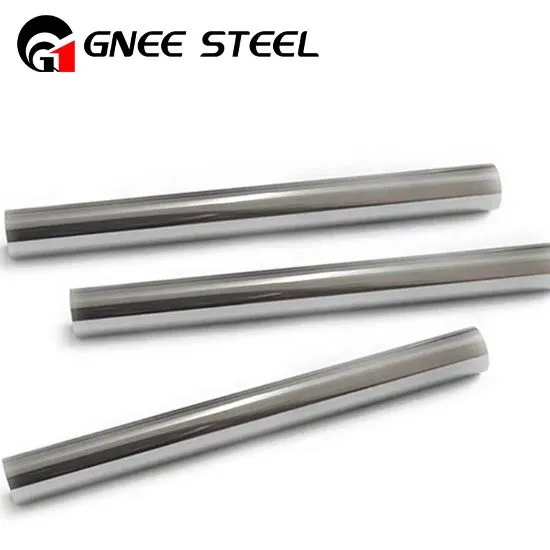

GH2901 hlau alloy

GH2901 yog austenitic muaj hnub nyoog-hardening alloy. Nws muaj lub zog yield zog thiab kav ntev. Zoo oxidation tsis kam, ntev siv cov ntaub so ntswg stability. Siv dav hauv aviation thiab av roj turbine cav rotating disk (turbine phaj, compressor phaj, ncej txoj kab uas hla, thiab lwm yam), zoo li qub qauv, turbine txheej nplhaib thiab fasteners thiab lwm yam.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

GH2901 (GH901) npib tsib xee-raws li alloy muaj qhov kub thiab txias zog thiab tuaj yeem tswj tau lub zog siab thiab tensile lub zog ntawm qhov kub txog li 1093 degree (2000 degree F). Qhov no ua rau nws zoo heev rau cov qauv thiab cov khoom ntawm qhov kub thiab txias. GH2901 alloy muaj kev nkag siab zoo heev thiab tuaj yeem tiv taus kev ntxhov siab ntev ntev ntawm qhov kub thiab txias yam tsis muaj deformation lossis tsis ua haujlwm. Qhov no ua rau nws ntseeg tau ntau dua hauv kev siv hauv qhov chaw kub, xws li roj turbines, aircraft xyaw, thiab lwm yam.

Chemical muaj pes tsawg leeg (wt.%)

C(％)	Mn(％)	Cr(％)	Ni(％)	Mo(％)
0.02-0.06	Max 0.4	11.0-14.0	40.0-45.0	5.0-6.5
B(%)	Al(%)	Ti (%)
0.001-0.02	Max 0.3	2.8-3.1

Mechanical Properties

R_p0.2(MPa)	R_m(MPa)	Kev cuam tshuam KV (J)	Elongation A (%)	A Z (%)	Kev xa khoom	Hardness HB
556 (Ntau dua lossis sib npaug)	931 (Ntau dua lossis sib npaug)	13	32	13	Solution & Aging, Ann, Ausaging, Q+T	434

SuperAlloys GH2901

GH2901 superalloy ua tshuab:

1. Melting thiab casting:GH2901 alloy yog npaj los ntawm melting thiab casting. Cov hlau feem ntau yog melted nyob rau hauv hluav taws xob arc rauv thiab ces cam khwb cia rau hauv billets ntawm txawv duab.

2. Kub ua haujlwm (forging thiab kub dov):GH2901 alloy muaj cov yas zoo ntawm qhov kub thiab txias, yog li kev ua haujlwm kub feem ntau siv rau kev hloov kho thiab nias. Kub forging yuav siv tau los ua ntau cov duab, xws li turbine hniav thiab bearings. Kub dov tuaj yeem siv los npaj cov phaj nyias thiab nyias nyias.

3. Kev kho cua sov:Tom qab ua tiav, GH2901 alloy feem ntau xav tau kev kho cua sov kom tsim nyog los kho cov qauv thiab cov khoom. Thaum lub sij hawm kho cua sov txheej txheem, cov hlau feem ntau yog rhuab mus rau qhov kub thiab txias, ces cia sov thiab txias. Cov txheej txheem kev kho cua sov tshwj xeeb thiab kub yuav tsum raug txiav txim siab raws li cov ntawv thov tshwj xeeb.

4. Machining:GH2901 alloy tuaj yeem ua tau machined, xws li tig, milling thiab drilling, kom tau raws li qhov xav tau qhov loj thiab qhov tseeb.

5. Vuam:GH2901 alloy tuaj yeem txuas thiab sib sau ua ke los ntawm kev sib txawv vuam. Cov txheej txheem vuam feem ntau suav nrog TIG (argon arc vuam), MIG (gas shielded vuam) thiab arc vuam.

GH2901 siab kub alloy daim ntawv thov thaj chaw:

Aerospace kev lag luam:GH2901 yog siv rau qhov kub thiab txias xws li tshuab dav hlau, turbine impellers, roj turbine combustion chambers thiab turbine nozzles.

Kev ua tshuaj lom neeg:GH2901 yog siv rau corrosion-resistant reactors, tshav kub exchangers thiab piping systems.

Kev lag luam roj thiab roj:GH2901 yog siv rau cov khoom siv roj av, roj thiab cov kav dej thiab cov roj av sab nrauv.

Lwm cov kev siv kub kub:GH2901 yog siv rau hauv cov roj refining, steelmaking, nuclear zog thiab kub kub kho.
