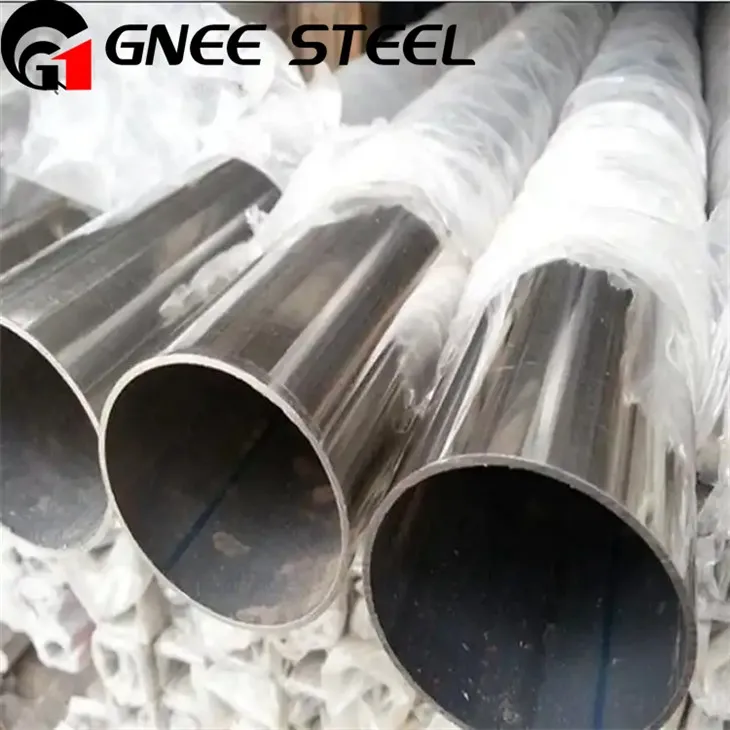

AISI 4140 Alloy Dom Tool Steel Yeeb Nkab
Qhov ntau thiab tsawg: 1/2 "NB rau 36" NB
Thickness: 3-12 hli
Cov lus qhia tshwj xeeb: Sch 40, Sch 80, Sch 160, sch xs, sch xxs thiab txhua yam
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
GNee 4140 Alloy Dom Tool Steel Yeeb Nkab Qhia Taw qhia
AISI 4140 DOM TUAM STEEL YEES
Txheej txheem cej luam ntawm cov tseem ceeb ntawm 4140 lub cuab tam
Raws li "ntau yam" nyob rau hauv cov lag luam teb, 4140 Tuam rau ntawm cov roj ntsha tsis sib xws Versasticity . nws cov tawv tawv tawv tuaj yeem ncav cuag cov khoom siv hardness tsawg dua los yog sib npaug rau cov phiaj xwm high-wall Los ntawm kev nqus dej txias thiab kev sib tsoo zoo, nws ua tiav ± 0.05mm dagensional qhov tseeb, muab cov cuab yeej sib npaug ntawm lub rooj sib tham uas muaj kev ntseeg siab ntawm lub taub hau.
Qhov tsuas yog cov tsis muaj zog yog qhov muaj kev txwv corrosion tsis kam ntawm cov ntaub ntawv liab qab (ntsev tshuaj tsuag<72h), which requires chrome plating/nitriding and other "armor" protection-just as a tough guy needs team support, its life span soars 10 times with the blessing of coating. Its cost-effectiveness surpasses that of high-end alloys: its price is only 65% of that of 4340 steel, but with the rigorous "cultivation" of 950℃ oil quenching + 550℃ tempering, it has become a cost-effective choice for heavy-loaded components such as mold skeletons and machine tool spindles.
Gnee AISI 4140 Alloy Tool Steel Yeeb Nkab Tshwj Xeeb
AISI 4140 raj specifications thiab tuab
| Qho tseem ceeb | 1/2 "NB rau 36" NB |
|---|---|
| Kev qhia tshwj xeeb | ASTM A519 / ASME SA519 |
| Qho ntev | Ib thiab ob npaug random, txiav kom ntev |
| Kev nyiaj tau | Txias Rolled Tube: + / -0.05 millimeter Txias Drawn Tube: + / -0.1 millimeter |
| Qhov tuab | {{03 - 12 millimeter, txiav kom ntev |
| Puab | Hydraulic, square, duab plaub, puag ncig thiab lwm yam. |
| Qhov kawg | Beveled, threaded, dawb |
| Ntaus | Welded|Cdw|ERW|Tshuav|Seamless|Hle kheej|Cew|Lsaw |
| Nto tas | 2b, tsis muaj .1, tsis .4, tsis .8 daim iav tiav |
| Teem cov kev teem caij tuab | Sch Xs, Sch 40, Sch 80s, Sch 5, Sch XXS, SCH 16, SCH10, txhua lub sijhawm |
| Tus me nyuam | Analealed & pickled, polished, ci & annealed, thiab lwm yam |
AISI 4140 Alloy Steel Tub Ntxhais Kev Ua Haujlwm
|
Ntiag tug |
Annealed mob |
Quenched & tempered (qt) mob |
|---|---|---|
|
Tensile lub zog (mpa) |
650 - 850 |
950 - 1200 |
|
Yield zog (mpa) |
Ntau dua los yog sib npaug rau 415 |
Ntau dua los yog sib npaug rau 750 |
|
Elongation (%) |
Ntau dua los yog sib npaug rau 15 |
Ntau dua los yog sib npaug rau 12 |
|
Kev Cuam Tshuam Tais (J, 20 Qib) |
40 - 60 |
25 - 40 |
|
Hardness (HB) |
200 - 250 |
280 - 350 |
|
Ua kom muaj zog |
Tsis tshua muaj neeg(Cov cheeb ntawm cov taub loj rau roj Quenching:φ 80-100 hli) |
Qhov tseem ceeb Daim Ntawv Qhia Txog Cov Cuab Yeej Siv Tub
HYDRAUYyim CAV
High-hav-han-hav lub tog raj kheej Barrel: Phab Ntsa Thickness Ntau dua los yog sib npaug rau 10mm (siab coj mus sib luag lossis sib npaug rau 60 mpa)
Precision Piston pas nrig: txheej inch kam kam rau ± 0.05mm, nto rougness ra tsawg dua los yog sib npaug rau 0.4μm
Tooring Fixtures
Cov lus qhia precision cov lus qhia muaj / cov lus qhia txog tes (ncaj tsawg dua lossis sib npaug rau 0.02mm / m)
Kev hnyav-cuab yeej ntxaiv (nkees ua lub zog ntau dua los yog sib npaug rau 450 mpa)
Pwm Raug
Txhaj mould luj (hardness 28-32 hrc tom qab quenching thiab tempering)
Stamping pwm hauv paus (Compressive lub zog ntau dua los yog sib npaug rau 900 MPa)
Gnee AISI 4140 Alloy Dom Steel Yeeb Nkab Sij Hawm
AISI 4140 Tool Tubes: Kev Ua Lag Luam Qhov Ncej Lag Luam
(Ua raws li Astm A519 / en 10305-1)
|
Txheej hauv lub taub (mm) |
Phab Ntsa Thickness (Mm) |
Txiav ntev (m) |
Tus qauv |
Cov Kev Siv Raug Raug |
|---|---|---|---|---|
|
10 - 50 |
1.5 - 8 |
3 - 8 |
Din 2391- c |
Precision Shafts, Hydraulic Valve Rods |
|
51 - 114 |
4 - 15 |
4 - 12 |
ASTM A519 |
Hydraulic Thooj Voos Kheej, Pwm Qhia Pins |
|
115 - 219 |
6 - 30 |
5 - 14 |
GB / T 3639 |
Nqus tshuab cuab ntxaiv ntxaiv, tho yeeb nkab sib koom tes |
|
220 - 400 |
10 - 50 |
6 - 18 |
API 5CT |
Kev tsuas yog me me thooj voos kheej kheej, cov tub rog tsav tsheb |
Gnee Pab Pawg Hoobkas Ib puag ncig
Gnee Group AISI 4140 alloy Dom Tooline Ib puag ncig Hoobkas chaw ib puag ncig
Gnee Group 4140 Dom Tool Steel Yeeb Nkab Ntim
Gnee Pab Pawg 4140 Alloy Tool Steel Yeeb Nkab Ntim
Gnee Pab Pawg Kev Ntsuas
Gnee Group 4140 Alloy Dom Steel Yeeb Ntaus Ntawv
Cov FAQ
Q: Koj lub MOQ yog dab tsi?
A: Feem ntau 15 tons, tab sis kev kho kom haum raws cov khoom lag luam lossis koj cov kev xav tau, nrog rau cov khoom lag luam tiag tiag.
Q: Ntev npaum li cas yog koj lub sijhawm khoom plig?
A: Cov khoom yuav raug xa tawm ASAP ntawm qhov ua tau zoo {}}}}}}}}}.
Q: Qhov zoo ntawm koj lub tuam txhab yog dab tsi?
A: Peb muaj ntau tus kws tshaj lij, cov neeg ua haujlwm ua haujlwm, muaj cov nqi sib tw ntau dua thiab cov tuam txhab hlau khoom siv ntau dua li lwm cov lag luam hlau cov ntaub ntawv.
