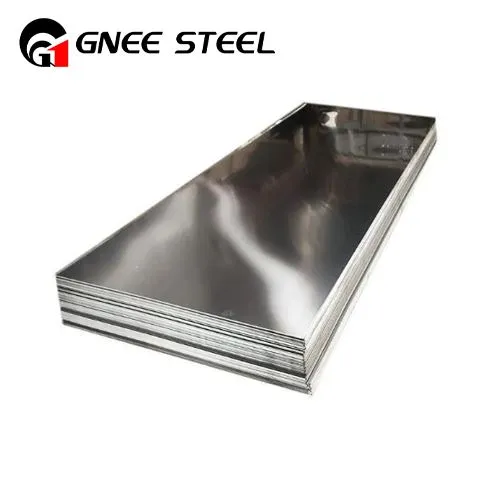

Monel R-405
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Monel® R405 yog ib qho khoom siv nickel-tooj liab alloy uas tsuas tuaj yeem ua kom tawv los ntawm kev ua haujlwm txias. Nws yog me ntsis sib nqus ntawm chav tsev kub. Nws yog qib dawb-machining ntawm Monel 400. Cov ntsiab lus sulfur hauv lub caij yog nce thiab kev ua haujlwm tau zoo dua qub. Nws tuav cov kev tiv thaiv corrosion, siab zog thiab zoo weldability ntawm Monel 400, tab sis cov khoom siv sib txawv me ntsis, thiab nws tau pom zoo rau cov cav tov ntsia hlau.
Specification ntawm Monel R-405
| Tshuaj muaj pes tsawg leeg | ||||||
| C | Mn | Fe | Ni | Cu | Si | S |
| 0.3 Max | 2 0 Max | 2.5 Max | 63.0 Min | 28.0 - 34.0 | 0.5 Max | 0.025-0.060 |
| Mechanical Properties | |||||
| Qhov xwm txheej | Tensile (ksi) | Yield (ksi) | Elongation% | Hardness Brinell (3000 kg) | Hardness Rockwell B |
| Annealed | 70-85 | 25-40 | 50-35 | 110-140 | 60-76 |
| Kub-Tiav | 75-90 | 35-60 | 45-30 | 130-170 | 72-86 |
| Cold-Drawn, As-Drawn | 85-115 | 50-105 | 35-15 | 160-245 | 85-23C |
Nta ntawm Monel Alloy R-405
● Zoo machinability, pom zoo rau cov tshuab tsis siv neeg ntsia hlau
● Resistant mus rau kub hiav txwv dej thiab chav
● Resistant corrosion los ntawm cov dej ntws nrawm nrawm thiab dej hiav txwv
● Muaj peev xwm tiv taus kev ntxhov siab corrosion tawg hauv dej tshiab
● Tom qab degassing, nws tiv taus hydrofluoric acid thiab hydrochloric acid
● Zoo corrosion kuj nyob rau hauv nruab nrab thiab alkaline ntsev
● Kev ua tau zoo ntawm cov tshuab ua haujlwm nyob rau hauv ntau qhov kub thiab txias (xws li sub-zero kub)
● Zoo heev tiv thaiv chloride ion kev nyuaj siab corrosion cracking
Kev siv ntawm Monel Alloy R-405
Monel R-405 feem ntau yog siv rau valve qhov chaw thiab fasteners rau corrosive marine thiab seawater daim ntaub ntawv, thiab blanks rau tsis siv neeg ntsia hlau tshuab. Nws feem ntau tsis pom zoo rau lwm daim ntawv thov.
