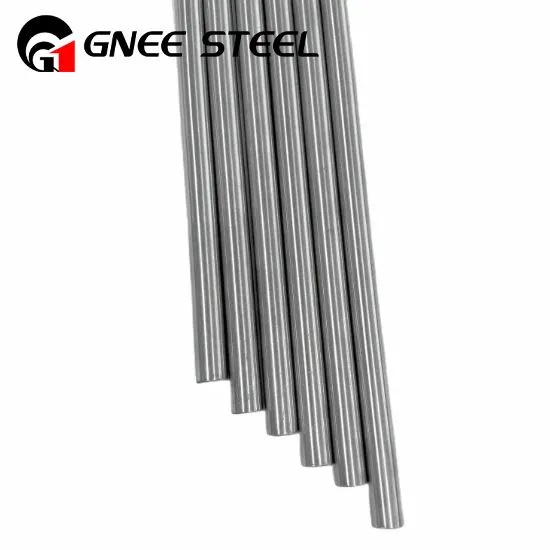

Monel R-405 Bar
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Monel R-405Bar yog lub dawb machining version ntawm Monel 400. Nws yog ib tug npib tsib xee-tooj liab alloy nrog ib tug tswj tus nqi ntawm leej faj ntxiv los muab sulfide inclusions uas ua raws li nti breakers thaum machining. Zoo li Monel 400, alloy R-405 tiv taus cov dej hiav txwv thiab chav dej ntawm qhov kub thiab txias nrog rau cov ntsev thiab cov tshuaj caustic. Monel R405 yog ib qho khoom siv hlau uas tuaj yeem ua kom tawv los ntawm kev ua haujlwm txias. Cov nickel alloy no nthuav tawm cov yam ntxwv zoo li zoo corrosion-ua hauj, zoo weldability thiab siab zog.
Monel Alloy R-405 Round Bar Chemical Composition
| Ni | Cu | Fe | S | Mn | C | Si |
|---|---|---|---|---|---|---|
|
63.0 feeb |
28.0-34.0 |
2.5 max |
.025-.060 |
2 0 max |
.3 max |
.5 max |
Nickel Alloy Monel R-405 Round Bar Mechanical Properties
| Qhov xwm txheej | Tensile (ksi) | .2% Yield (ksi) | Elongation% | Hardness Brinell (3000 kg) | Hardness Rockwell B |
|---|---|---|---|---|---|
|
Annealed |
70-85 |
25-40 |
50-35 |
110-140 |
60-76 |
|
Kub-Tiav |
75-90 |
35-60 |
45-30 |
130-170 |
72-86 |
|
Cold-Drawn, As-Drawn |
85-115 |
50-105 |
35-15 |
160-245 |
85-23C |
Peb Monel R-405 Round Bar Testing:
- Cov cuab yeej zoo tshaj plaws yog siv rau kev kuaj PMI meej.
- Kev ntsuam xyuas hardness yog ua los ntsuas cov khoom siv zog.
- IGC kuaj xyuas kom muaj kev tiv thaiv rau intergranular corrosion.
- Flattening thiab flaring tests ntsuas lub bar qhov kev ncaj ncees.
- Macro, micro, chemical, mechanical, thiab pitting resistance tests guarantee top-notch quality.
Cov txiaj ntsig ntawm Monel R405 Round Bars:
- Nws yog ASME siv rau hauv boilers, siab, thiab cov hlab ntsha nuclear
- Nws tuaj yeem tsim thiab kho cua sov
Kev siv Alloy R405 Round Bars:
- Cov kab no feem ntau yog siv rau hauv daim ntawv thov hauv qab no:
- Brine rhaub, dej hiav txwv scrubbers hauv tanker inert gas systems
- Sulfuric thiab hydrofluoric acid alkylation nroj tsuag.
- Pickling bat cua sov coils.
- Thaum tshav kub kub exchangers nyob rau hauv ntau yam kev lag luam.
- Hloov cov kav dej los ntawm cov roj refinery crude kab.
