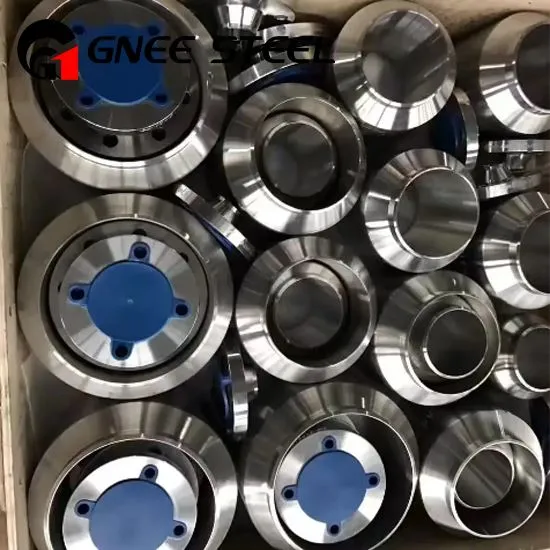

Monel 400 Flange
Monel 400 Flange
Monel 400 Flange
Monel 400 Flange

Monel 400 Flange

Monel 400 flanges yog lub caj dab weld flange ua los ntawm cov nickel-tooj liab alloy uas muaj lub zog siab thiab zoo heev corrosion kuj. Monel 400 flanges tau ntev dhau los ua tus qauv hauv kev lag luam xws li kev tuav cov kua qaub, kev ua zaub mov, thiab kev tsim khoom petrochemical. Cov flanges ruaj khov no muaj kev tiv thaiv corrosion zoo heev thaum raug dej hiav txwv lossis lwm yam hnyav ib puag ncig.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Monel 400flanges yog cov khoom siv hlau uas txuas cov kav dej, li qub, thiab lwm yam khoom siv hauv cov kav dej. Lawv yog tsim los ntawm Monel 400 thiab tuaj nyob rau hauv ntau yam duab, qhov ntau thiab tsawg, thiab kev ntsuas siab kom tau raws li cov kev xav tau tshwj xeeb.

Monel 400 flanges yog cov khoom tseem ceeb hauv cov kav dej, tshwj xeeb tshaj yog nyob rau hauv ib puag ncig uas tiv thaiv corrosion, lub zog, thiab kav ntev yog qhov tseem ceeb. Lawv versatility thiab cov khoom siv zoo heev ua rau lawv xaiv thawj zaug rau ntau yam kev siv tseem ceeb thoob plaws ntau yam kev lag luam.

Monel 400 Flanges Ntau

Specification	ASTM B366 / ASME SB366
Kev tsim khoom	Kub Forging / Rolling / Machining
Lwm Qib	Qib 1, Qib 2, Qib 3, Qib 5, Qib 7, Qib 8, Qib 9, Qib 11, Qib 12, Qib 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R52400, UNS R502 UNS, R503 {16}}Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti{ {23}}Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13 V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al
Sab nraud	1/2" NB TO 64" NB
Qib Siab	Chav Kawm 150 #, Chav Kawm 300 #, Chav Kawm 400 #, Chav Kawm 600 #, Chav Kawm 900 #, Chav Kawm 1500 #, Chav Kawm 2500 # lossis Raws Li Kev Xav Tau PN 6, PN 10, PN 16, PN 25 thiab PN 40 thiab lwm yam
Teem caij	Sch 10s TO Sch XXS lossis Raws li Kev Cai Lij Choj
Kev ntsib	Lub ntsej muag Flate (FF), tsa ntsej muag (RF), Ntiv nplhaib hom Joint (RTJ)
Dimension	ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1: 2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIN 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J thiab lwm yam.
Hom	Vuam Neck Flange, Slip On Flange, Qhov (socket) Weld Flange, Lap Joint Flange, Threaded Flange,Qhov muag tsis pom Flange, Orifice Flanges, Phaj Flange, Ntev Vuam Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Txo Flange,WNRF Flange UAS, SORF Flange, SWRF Flange, Custom Flange raws li ib daim duab kos thiab lwm yam.
Kev sim	NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service thiab lwm yam.
Kev Pabcuam Ntxiv	Rolling, Laum, Punch, CNC Machining, Sand Blasting, Txhaj Blasting, Thaum tshav kub kub kho, Anti-xeb xim, Roj xim dub, daj pob tshab, Zinc Plated, txias thiab kub dip Galvanized
Ntim	Loose / Carrate / Ntoo Pallet / Ntoo Box / Plastic Cloth Wraps
Kev xa khoom & Kev thauj mus los	Los ntawm Txoj Kev - Tsheb / Tsheb ciav hlau Ib nrab Load, Tag Nrho Load, Los Ntawm Hiav Txwv - Break-bulk Pas Dej Nkoj / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Qhib Sab saum toj Thawv, Los ntawm Cua - Freighter Civil Passenger thiab Cargo Planes
Material Test Certificate	Chaw tsim tshuaj paus Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Nyob rau hauv Lub Chaw Saib Xyuas Thib Peb Zoo li SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Pom Zoo ETC

ASTM B564 Monel® Alloy 400 Forged Flanges Chemical Composition

Qib	Ni	C	Al	Mn	Si	Fe	Cu	S
Monel 400	63.0 feeb	0.3 max	0.50 max	2 0 max	0.5 max	1.0 - 2.5	28.0 - 34.0	0.02 max

400 Monel ASME SB564 Threaded / Screwed Flanges Mechanical Properties

Qhov ntom	Melting Point	Yield zog (0.2% Offset)	Tensile zog	Elongation
8.8g 3	1350 degree (2460 degree F)	Psi – 35, 000, MPa – 240	Psi – 80, 000, MPa – 550	40 %

Monel Alloy Flanges

Nta ntawm Monel 400 Flanges

Monel 400 flanges muaj lub zog siab, zoo heev corrosion kuj nyob rau hauv ntau qhov chaw, weldability zoo, thiab kuj rau pitting thiab crevice corrosion.

Kev siv ntawm Monel 400 Flanges

Monel 400 flanges yog siv rau ntau yam kev lag luam, suav nrog kev ua tshuaj lom neeg, roj thiab roj, marine, thiab aerospace. Lawv feem ntau siv hauv cov kav dej uas nqa dej hiav txwv, hydrofluoric acid, thiab lwm yam corrosive kua thiab gases.
