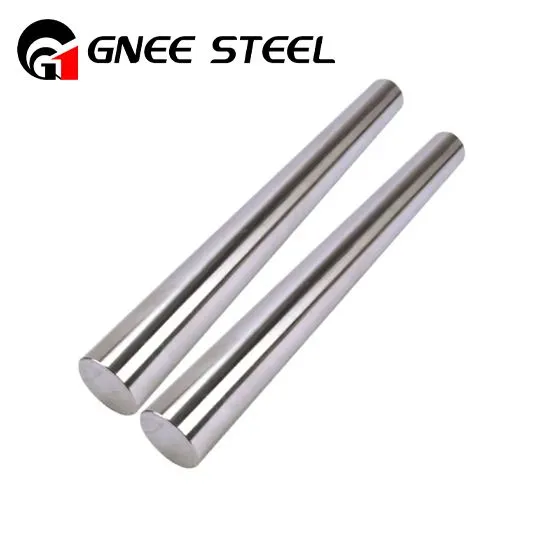

ASTM B164 UNS N04400 bar
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
ASTM B164 specification yog hais txog nickel tooj liab alloys nyob rau hauv daim ntawv los yog kub los yog txias ua hauj lwm cov khoom. ASTM B164 UNS N04400 puag ncig bar yog dav siv hauv marine thiab thermal daim ntaub ntawv.GNEE SteelSib nrug los ntawm kev muab cov khoom zoo ASME SB164 puag ncig ntawm tus nqi pheej yig, peb cov neeg siv khoom zoo pab neeg ib txwm muaj los pab koj. Tiv tauj peb hnub no kom tau txais kev cai ua round tuav xa tuaj rau koj lub qhov rooj raws sijhawm.
| Specifications | ASTM B164, AMS 4675, ASTM 4730, AMS 4731 |
|---|---|
| Qib | Monel 400- UNS N04400, Nickel Alloy 400 (66 Ni / 34 Cu) |
| Cov txheej txheem | 400 Monel Txias Drawn, Kub Rolled, Forged Round Bar, Qws, Txias Rolled |
| Ua siab ntev | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 los yog raws li cov neeg xav tau |
| Ua kom tiav | Txias (ci) kos, centreless hauv av, kub dov, du tig, tev, slit dov ntug, kub dov annealed, Rough tig, ci, Polish, sib tsoo, Centreless av & Dub |
| Round bar loj | Txoj kab uas hla: 3- ~ 800mm |
| Hex Bar loj | 2-100mm A/F |
| Flat bar loj | Thickness: 2 -100 hli |
| Dav: 10-500mm | |
| Square bar loj | 4 mus rau 100 mm |
| Tshooj | 3.0 mus rau 12.0mm thickness |
| Daim ntawv | Precision Ground Bar, Flat Bar, Square, Round, Ib nrab Round Bar, Qws, Rectangle, Hex (A / F), T-Bar, Channel Bar, Blocks, Round Qws, Threaded, Profiles, Billet, Ingot, I / H Bar , Forging, Rings, Hollow, Daim duab peb sab thiab lwm yam. |
| Rectangles Loj | 33 x 30 mm txog 295 x 1066 mm |
| Nto | Txias Drawn, Ci ntsa iab, Sand Blasting tiav, Kub Rolled Pickled, Hairline, Polished |
| Kev ua haujlwm | Bar txiav rau 650mm |
| Billet Loj | 1/2 "mus rau 495mm Dia |
| Channel Bar | 8 0 x 4 0mm mus rau 150 x 75mm seem; 5.0-6.0 hli thickness |
| Hollow Bar | 32mm OD x 16mm ID rau 250mm OD x 200mm ID) |
| Lub kaum sab xis bar loj | 3mm * 20mm * 20mm ~ 12mm * 100mm * 100mm |
| Qhov xwm txheej | Hardened & tempered, annealed |
| Peb 400 Monel Round bar ua raws li NACE MR0175 / ISO 15156 | |
Qhov xwm txheej ntawm ASME SB 164 UNS N04400 Qws
Cov xwm txheej ntawm ASME SB 164 UNS N04400 rods yuav suav nrog kev sib tsoo. Nyob rau hauv no, cov khoom yog rhuab mus rau ib tug tshwj xeeb kub thiab ces txias kom txo tau kev ntxhov siab. Cov txheej txheem pab txhim kho lub machinability thiab formability ntawm alloy 400.
Lawv kuj tuaj yeem ua haujlwm txias kom ua tiav cov khoom siv kho tshuab.
UNS N04400 rods muaj hnub nyoog hardened los txhim kho lawv lub zog thiab hardness.
Qee cov tuav kuj tuaj yeem muab tau rau hauv cov xwm txheej zoo li tsis muaj kev kho cua sov ntxiv.
Qhov txawv ntawm Kub-ua hauj lwm thiab txias-ua hauj lwm N04400 Bar
Qhov kub ua hauj lwm ASME SB164 N04400 lub kaum sab xis yog zoo li tus ntawm qhov kub siab tshaj nws cov recrystallization temp. Tom qab cov hlau yog rhuab, nws yuav tau yooj yim deform thiab zoo li. Cov kab ua haujlwm txias tau zoo li ntawm chav tsev kub yam tsis muaj cua sov tseem ceeb.
Kub ua hauj lwm txo cov hardness thiab txhim kho cov ductility ntawm cov tuav. Kev ua haujlwm txias ua kom lub zog thiab lub zog piv rau cov khoom kub ua haujlwm.
Kub ua hauj lwm tuav muab oxidized nto thaum ASTM B164 txias drawn tuav muaj ib tug du & huv si.
Txias ua hauj lwm UNS N04400 ci ntsa iab muaj ib tug nruj me ntsis kev kam rau siab tshaj cov kub ua hauj lwm sawv daws yuav.
