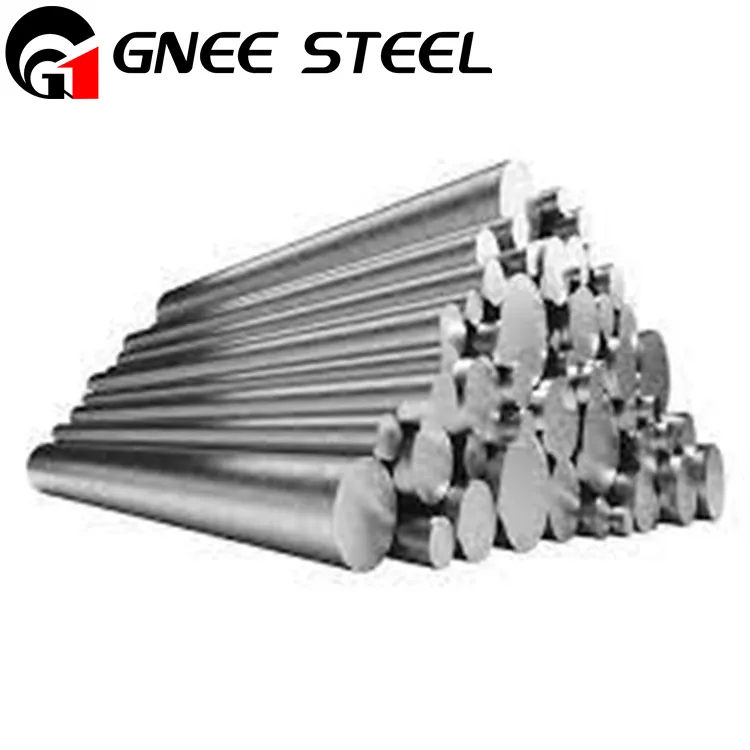

600 601 602CA Inconel Alloy
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
GNEE Product Description
| PRODUCT FORM | SIZE NTAWM NO | SIZE RANGE TO |
| Alloy 600 tub | 0.5 nyob rau hauv | 8in ib |
| Alloy 600 cev | 12 mm | 260 hli |
| Alloy 600 yeeb nkab fittings | 0.5 nyob rau hauv | 8in ib |
| Alloy 600 flanges | 0.5 nyob rau hauv | 8in ib |
Inconel Alloy 600 601 602CA, kuj muag hauv qab lub npe Inconel 600 601 602CA. Nws yog ib qho tshwj xeeb npib tsib xee-chromium alloy paub txog nws txoj kev tiv thaiv oxidation ntawm qhov kub siab dua. Nws yog ntau yam thiab tuaj yeem siv tau ntau yam kev siv los ntawm qhov kub thiab txias rau qhov kub txog li 2000 degree F (1093 degree). Nws cov ntsiab lus siab nickel (tsawg kawg 72%) ua ke nrog nws cov ntsiab lus chromium muab cov neeg siv ntawm Nickel Alloy 600 601 602CA nrog ntau cov txiaj ntsig, suav nrog:
Zoo oxidation tsis kam ntawm qhov kub thiab txias
Resistant rau cov organic thiab inorganic tebchaw
Resistant chloride ion kev nyuaj siab corrosion cracking
Ua haujlwm zoo nrog feem ntau cov tshuaj alkaline thiab sulfur compounds
Txo qhov kev tawm tsam ntawm cov tshuaj chlorine lossis hydrogen chloride
Vim nws muaj ntau yam thiab qhov tseeb tias nws yog cov khoom siv hluav taws xob tsim hluav taws xob rau cov ntawv thov uas xav tau corrosion thiab kub tsis kam, ntau qhov kev lag luam tseem ceeb siv Nickel Alloy 600 hauv lawv daim ntawv thov. Nws yog qhov kev xaiv zoo tshaj plaws rau:
Nuclear reactor nkoj thiab tshav kub exchanger piping
Cov khoom siv tshuaj ua haujlwm
Thaum tshav kub kub kho rauv khoom thiab fixtures
Gas turbine Cheebtsam, nrog rau cov dav hlau xyaw
Cov khoom siv hluav taws xob
Nickel Alloy 600 601 602CA thiab Inconel 600 601 602CA yog ib qho yooj yim rau fabricate (kub lossis txias) thiab tuaj yeem koom nrog siv cov txheej txheem vuam, brazing thiab soldering. Txhawm rau hu ua Nickel Alloy 600 601 602CA (Inconel 600 601 602CA), cov hlau yuav tsum muaj cov tshuaj lom neeg hauv qab no:
Nickel 72%
Chromium 14-17%
Hlau 6-10%
Manganese 1%
Silicon .5%
GNEE Steel muaj Nickel Alloy 600 601 602CA hauv pas nrig, pas nrig, hlau, forgings, phaj, ntawv, sawb, raj thiab raj. Cov ntaub ntawv no ua tau raws li lossis dhau ntau tus qauv sib txawv xws li ASTM, ASME, SAE, AMS, BS, DIN, ISO, QQ thiab MIL-DTL.
Peb ntawm GNEE Group Tshuag thiab muag Nickel Alloy 600 thiab Inconel 600 yeeb nkab, raj, phaj, sawb, phaj, puag ncig bar, tiaj tiaj, forgings, hexagonal bar, hlau pas nrig thiab extruded seem.
| QHOV TSEEB | 21 degree | 538 degree | 649 degree | 760 degree | 871 degree | 982 degree | 1093 degree |
| Qhov kawg Tensile Strength / MPa | 641.2 | 579.2 | 448.2 | 189.6 | 103.4 | 51.7 | - |
| 0.2% Yield Strength /MPa | 255.1 | 196.5 | 182.7 | 117.2 | 62 | 27.6 | - |
| Charpy Impact V-notch / J | 61 | 63.7 | 52.9 | 62.4 | 108.5 | 160 | - |
| Coefficient ntawm Thermal Expansion µm / m⁰C | - | 15.1 | 15.5 | 15.6 | 16.4 | - | 16.7 |
| Thermal conductivity / kcal / (hr.m. degree) | 12.8 | 19.6 | 21.3 | 19.3 | 23.8 | - | - |
| Modulus ntawm Elasticity / x105MPa | 2.1 | 1.77 | 1.69 | 1.63 | 1.53 | - | 1.4 |
cev inco
cev inco
tsis muaj seamless
inconel yeeb nkab welding
Q1: Cov ntaub ntawv khoom dab tsi uas kuv yuav tsum muab ua ntej kev yuav khoom?
Q6: Koj puas muab kev pabcuam rau cov khoom lag luam customized?
Cim npe nrov: 600 601 602ca inconel alloy, Tuam Tshoj 600 601 602ca inconel alloy lwm tus neeg
