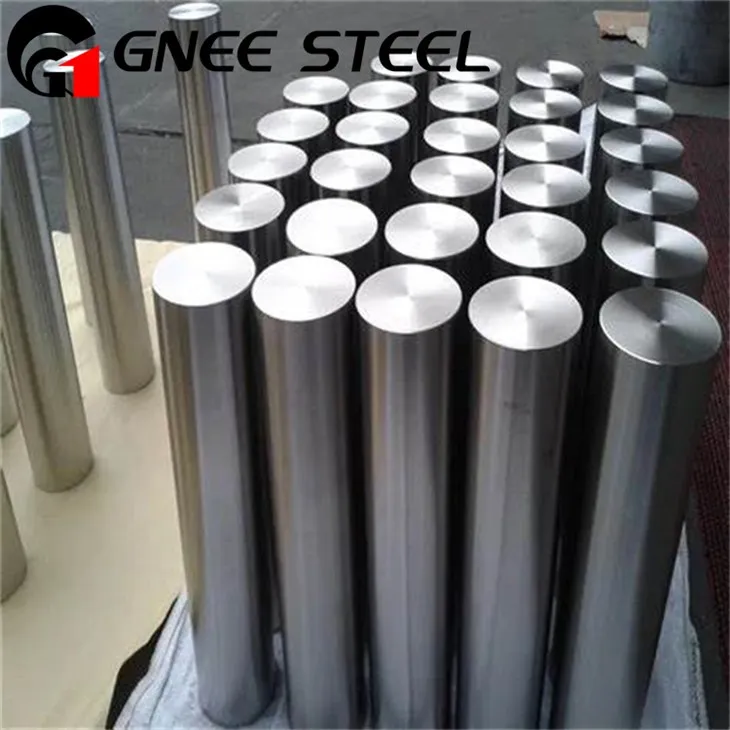

Inconel tsis yog N06600 Nickel raws li puag ncig

Inconel tsis yog N06600 Nickel raws li puag ncig

Unic tsis yog N06600 puag ncig bar yog npib tsib xee hluav taws xob}}}}}}}}}%) los ua tus qauv zoo ruaj khov, thiab yog ua rau hauv cov kab ncig nrog 5-300 mm los ntawm kub dov los yog txias kev siv hluav taws xob ntau dua los yog sib npaug ntawm 2450℃. tshaj plaws Kev nthuav tawm cov khoom no yog nws cov kev kub siab ua tau zoo, thiab kev txhawb nqa cov txheej txheem kub zoo heev thiab kev txhawb nqa ntau yam. nws ua raws li Astm B166, Ams 5665 thiab lwm cov qauv kev kho mob (cov khoom siv hluav taws xob (cov khoom siv hluav taws xob (HR), txias kos (CD), pg), lwm yam ., kom tau raws li cov khoom siv sib txawv hauv kev ua haujlwm hnyav xws li kev kub siab thiab corrosion.

UN tsis yog N06600 (Inconel 600) Hloov Bar Cov Khoom Vaj Tsev

Hom	Chaw ua uas tsis tau haus	Tus nqi / lus piav qhia
Yooj yim sib xyaw	Npib tsib caug (ni)	Ntau dua los yog sib npaug rau 72%
	Chromium (cr)	14%~17%
	Hlau (FE)	6%~10%
	Lwm Ntsiab Lus	C Tsawg dua los yog sib npaug rau 0.15%, mn tsawg dua los yog sib npaug los yog sib npaug lossis 0.50%, s tsawg dua lossis sib npaug 0.015%
Cov Khoom Siv Neeg Kho Tshuab	Tensile lub zog (RT)	Ntau dua los yog sib npaug rau 550 mpa
	Tawm Zog (0.2% offset)	Ntau dua los yog sib npaug rau 240 MPa
	Elongation (50 hli gauge)	Ntau dua los yog sib npaug rau 30%
	Kev nyuaj	HRB 65 ~ 85 (anealed)
Cov Khoom Siv Lub Cev	Ceev	8.47 g / cm³
	Melting taw tes	1354 ~ 1413 Qib
	Thermal Condivity (20 Qib)	14.9 W/m·K
	Hluav taws xob tiv thaiv hluav taws xob	1.03 μΩ·m
	Sib nqus permeability	Tsawg dua los yog sib npaug rau 1.01 (sib nqus tsis muaj zog)
Qho loj	Cov kab uas hla	5 hli ~ 300mm (tus qauv) Kev cai txog 500 hli
	Qho ntev	3000mm ~ 6000mm (Txuj) Kev Cai Txiav Muaj
	Txoj kev ua yuam txoj hmoo no	± 0.05mm (hauv av precision) ± 0.1mm (tus qauv kub-rolled)
Nto tas	Kub-rolled (hr)	Cov nplaim dub nrog nplai
	Khaub thuas-kos (cd)	Du nto, ra tsawg dua los yog sib npaug rau 1.6μm
	Precision Av (PG)	High-qib polish, ra tsawg dua lossis sib npaug rau 0.8μm
Tab tom ua	Kub-Rolling	Kub Forging / Dov (870 ~ 1175 degree)
	Txias txheej txheem kos duab	Mob khaub thuas kos + annealing (txhim kho qhov tsis zoo)
	Kev Kho Cua Sov	Annaling (870 ~ 980 degree, sai sai txias)
Tus qauv	ASTM	ASTM B166 (Nickel-chromium alloy tuav)
	Ams	Ams 5665 (Aerospace)
	Tus lej tsis yog	N06600
Corrosion Kuj	Oxidation tsis kam	Zoo heev (kev pabcuam temp tsawg dua lossis sib npaug rau 1150 degree)
	Acid / alkali Kuj	Tsis kam nitric acid, organic acids, alkaline daws
	Chloride tsis kam	Zoo heev kev ntxhov siab corrosion tawg
Cov Kev Siv Raug Raug	Khoom Siv Cua Sov Khoom	Rauv yob, Radiant Tubes, muffles
	Cov Khoom Siv Tshuaj	Pickling Kab Txheej Txheem, Reactors, Distillation Txhua
	Kev Lag Luam Hluav Taws Xob	Lub tshuab nqus hlau, cov cuab yeej cuab tam semiconductor
	Nuclear Cov Khoom Siv	Chav generator generator, reactor Cheebtsam

Tshuaj lom neeg muaj pes tsawg leeg ntawm inconel 600 puag ncig tuav

Teem nqi	C	Mn	Si	S	CU	Zaum fe	Ni	Cr
Inconel 600	0.15 Max	1.00 Max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00

LUJ CEEB TOS NTAWM ASTM B166 UNED N06600 Bar

Hnyav (kg)		Ciaj ciam teb
Xwm fab xwm meem	Voj voog	Xwm fab xwm meem (cm)
31.16	24.47	25.2
39.57	31.08	28.4
0.50	0.39	3.2
0.64	0.50	3.6
0.73	0.63	4.0
0.95	0.75	4.4
1.13	0.89	4.8
1.54	1.21	5.6
2.01	1.58	6.4
0.20	0.15	2.0
0.24	0.19	2.2
0.28	0.22	2.4
0.38	0.30	2.8
4.91	3.85	10.0
6.15	4.83	11.2
8.04	6.31	12.8
10.17	7.99	14.4
12.56	9.86	16.0
15.90	12.49	18.0
19.62	15.41	20.0
24.62	19.34	22.4
2.54	2.00	7.2
3.14	2.47	8.0
3.80	2.98	8.8
50.24	39.46	32.0

Gnee cov pab pawg tsis muaj txiaj ntsig N06600 npib tsib xee raws puag ncig bar Hoobkas ib puag ncig

Gnee cov pab pawg tsis muaj txiaj ntsig N06600 npib tsib xee raws li kev ntim bar

Gnee cov pab pawg tsis muaj txiaj ntsig N06600 Nickel raws li kev sib tw bar kuaj

Q: Peb puas tuaj yeem mus saib koj lub Hoobkas?
A: Txaus siab tos txais ib zaug peb muaj koj lub sijhawm peb yuav tuaj tos koj .
Q: Koj puas muaj kev tswj hwm zoo?
A: Yog, peb tau nce BV, SGS authentication .
Q: Koj puas tuaj yeem npaj cov zaub mov xa tuaj?
A: Kom paub meej, peb muaj tus nqi xa khoom ruaj khov uas tuaj yeem tau txais tus nqi zoo tshaj plaws los ntawm cov tuam txhab nkoj feem ntau thiab muab kev pabcuam kev tshaj lij thiab kev pabcuam {}}
