Inconel steel 600 daim iav polished hlau phaj
Cov Lus Qhia Tshwj Xeeb: ASTM B168 / ASME SB168
Qhov loj me: Astm, ASME thiab API
Dav: 1000mm, 1219mm, 1500mm, 1800 hli, 2000mm, 2500mm, 3500mm, thiab lwm yam.
Thickness: 4mm -100 hli
Ntev: 2000mm, 2440 hli, 3000mm, 5800mm, 6000mm, thiab lwm yam.
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Gnee Inconel 600 daim iav polished hlau phaj ua kom paub

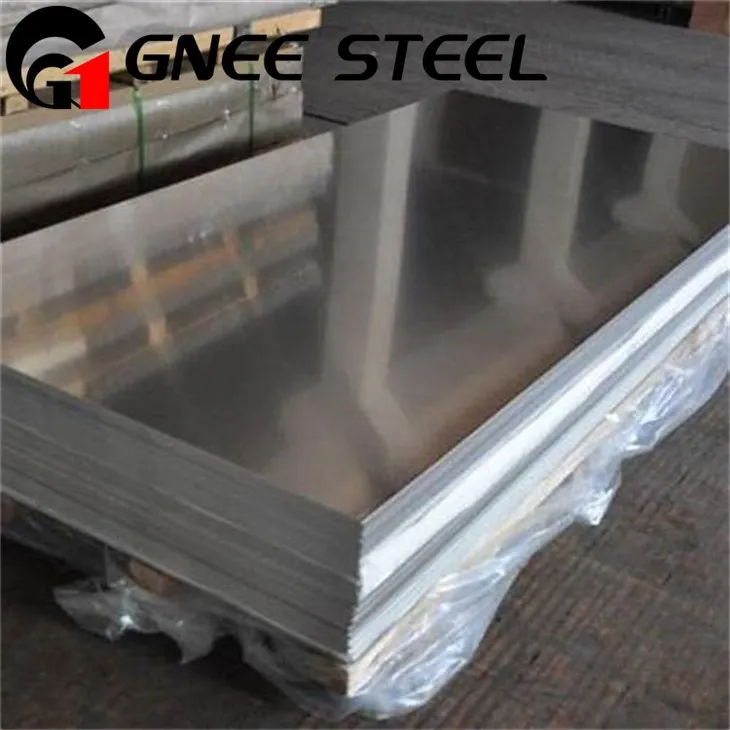

Inconel steel 600 daim iav polished phaj
Inconel 600 polished phaj yog qhov ua tau zoo tsib xee-} Lub phaj loj ({} 0 {.} 43m) nrog oxidishing tsis kam, carburization tsis kam, carrosive ib puag ncig yog nws cov kev ua kom muaj kev ntxhov siab ntau dua (thiab cov khoom siv zoo zoo (elongation ntau dua los yog sib npaug ntawm cov qauv zoo nkauj uas tsis tau mus txog ASTM B168, thiab tau dav Siv rau hauv cov khoom siv cua sov (cua sov tso tsheb hlau luam), cov khoom siv tshuaj lom neeg), uas muaj cov kev xav tau nruj rau saum npoo ua tiav thiab kub ruaj khov.
Gnee Steel 600 daim iav polished hlau phaj specification
Inconel 600 polished ntawv cov rooj vaj
| Hom | Chaw ua uas tsis tau haus | Tus nqi / lus piav qhia |
|---|---|---|
| Yooj yim sib xyaw | Npib tsib caug (ni) | Ntau dua los yog sib npaug rau 72% |
| Chromium (cr) | 14%~17% | |
| Hlau (FE) | 6%~10% | |
| Lwm Ntsiab Lus | C Tsawg dua los yog sib npaug rau 0.15%, mn tsawg dua los yog sib npaug los yog sib npaug lossis 0.50%, s tsawg dua lossis sib npaug 0.015% | |
| Cov Khoom Siv Neeg Kho Tshuab | Lub zog tensile | 550 ~ 760 MPa (Annealed) |
| Tawm Zog (0.2% offset) | 240 ~ 450 MPa (Annealed) | |
| Elongation (50 hli gauge) | Ntau dua los yog sib npaug rau 30% | |
| Kev nyuaj | HRB 65 ~ 85 (anealed) | |
| Cov Khoom Siv Lub Cev | Ceev | 8.47 g / cm³ |
| Melting taw tes | 1354 ~ 1413 Qib | |
| Thermal Condivity (20 Qib) | 14.9 W/m·K | |
| Hluav taws xob tiv thaiv hluav taws xob | 1.03 μΩ·m | |
| Sib nqus permeability | Tsawg dua los yog sib npaug rau 1.01 (sib nqus tsis muaj zog) | |
| Qho loj | Thickness Ntau Yam | 0.5 hli ~ 20mm (tus qauv) Kev cai txog li 50 hli |
| Qhov dav ntau | 500 hli ~ 1500mm (tus qauv) Ntau tshaj 2000mm |
|
| Ntev ntev li cas | 1000mm ~ 6000mm (tus qauv) Kev Cai Txiav Muaj |
|
| Tuab ntaus | ± 0.02mm (precision polished) | |
| Nto tas | Kawm polishing | Ra tsawg dua los yog sib npaug rau 0.4μm (tsom iav tiav) Ra tsawg dua los yog sib npaug rau 0.8μm (zoo nkauj) |
| Qhov xwm txheej nto | 2b (khaub thuas-rolled ci), ba (ci annealed), tsis muaj .1 (kub-pickled) | |
| Tab tom ua | Dov Cov Txheej Txheem | Kub-Rolled + Txias-Rolled (Lis Cov Khoom Siv) |
| Kev Kho Cua Sov | Annaling (870 ~ 980 Qib) | |
| Polishing txheej txheem | Neeg kho tshuab polishing + electropolishing (yeem) | |
| Tus qauv | Cov Qauv Thoob Ntiaj Teb | ASTM B168 (Nickel-Chromium Alloy Ntawv) AMS 5540 (AERGRACE) |
| Tus lej tsis yog | N06600 | |
| Corrosion Kuj | Oxidation tsis kam | Zoo heev (kev pabcuam temp tsawg dua lossis sib npaug rau 1150 degree) |
| Acid / alkali Kuj | Tsis kam nitric acid, organic acids, alkaline daws | |
| Chloride tsis kam | Zoo heev kev ntxhov siab corrosion tawg | |
| Cov Kev Siv Raug Raug | Khoom Siv Cua Sov Khoom | Rauv yob, muffles, fixtures |
| Cov Khoom Siv Tshuaj | Pickling kab, reactors, distillation txhua | |
| Kev Lag Luam Hluav Taws Xob | Cheebtsam semiconductor, lub tshuab nqus tsev | |
| Nuclear Cov Khoom Siv | Chav tsim hluav taws xob raj khoom, reactor Cheebtsam |
UN tsis muaj N06600 Phaj Tshuaj Kho Mob
| Teem nqi | C | Mn | Si | S | CU | Zaum fe | Ni | Cr |
| Inconel 600 | 0.15 Max | 1.00 Max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Gnee 600 daim iav polished hlau phaj teem
Inconel 600 polished Sheet - Txuj Ci Khw Qhov Loj
| Chaw ua uas tsis tau haus | Cov Qauv Qeb | Cov Khoom Ua Lag Luam Feem Ntau | Kev nyiaj tau | Sau ntawv |
|---|---|---|---|---|
| Tuab (mm) | 0.5 - 10 | 0.5, 1.0, 1.2, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 | ± 0.02mm (Precision) ± 0.05mm (Txuj Ci) | Thinner gauges (<1mm) typically special order |
| Dav (hli) | 600 - 1500 | 600, 1000, 1219, 1250, 1500 | ± 5mm | Wider sheets (>1500 hli) muaj nyob rau ntawm kev thov |
| Ntev (hli) | 2000 - 6000 | 2000, 2438, 3000, 4000, 5000, 6000 | ± 10mm | Kev cai ntev tau |
Gnee Pab Pawg Hoobkas Ib puag ncig
Gnee Group Hlau 600 Daim iav polished phaj Hoobkas Ib Cheeb Tsam
Gnee Group Ntim
Gnee cov pab pawg inconel 600 daim iav polished phaj ntim
Gnee Pab Pawg Kev Ntsuas
Gnee Group 600 daim iav polished phaj kuaj
Cov FAQ
Dab tsi yog qhov kub ua haujlwm kub ua haujlwm rau 600 alloy phaj?
1600 - 2250 Qib F (870 - 1230 Qib)
Dab tsi yog melting point ntawm inconel 600 alloy chev?
1354-1413 degree
Yog inconel 600 alloy phaj machinable?
Nws tuaj yeem yog cinkable nyob rau hauv ob qho kub ua hauj lwm thiab annealed tej yam kev mob .
Dab tsi yog qhov txiav ceev thiab pub rau 600 daim phaj alloy?
Kev pub pub noj: 0 . 1 hli / r ~ 0.3 hli / r.
Txiav Ceev: 20 m / min ~ 80 m / min
