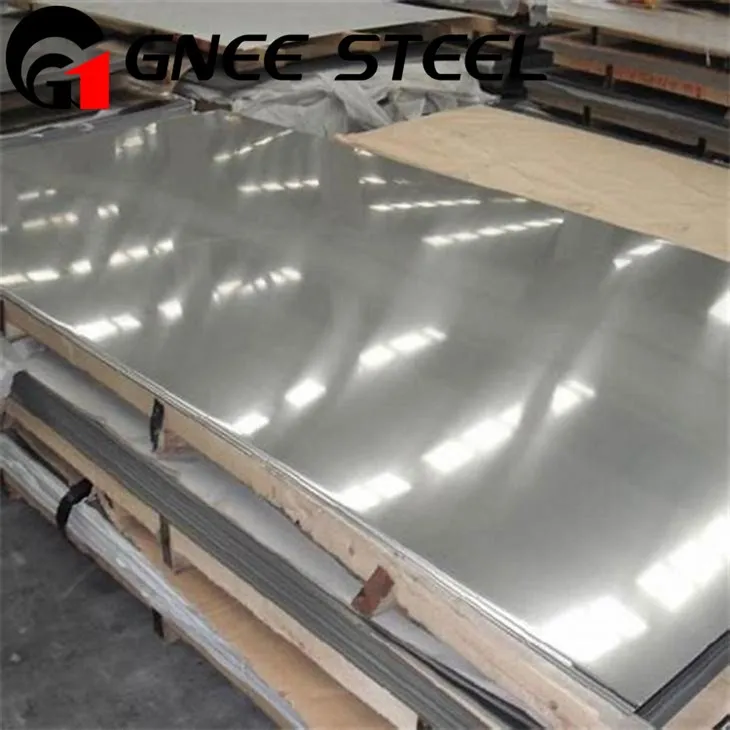

Inconel Kub Resistant 718 Steel Alloy Ntawv
Daim Ntawv Sau: Phaj, Ntawv, Sawb, bar, hlau, raj
Thickness: 0.5 mm rau 100 hli
Dav: Max 2000 Hli
Ntev: Max 6000 mm lossis customized ntev
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Gnee Inconel Resistant 718 Alloy Sheet Qhia Txog
Inconel Kub Resistant 718 Steel Ntawv
Inconel 718 Cov Phaj Kub Siab Tshaj Plaws yog ib qho nag ntsis Hauv ob txheej txheem xeev: kub dov ({9}}} pa dav ({} kub} Nws yog tsim tshwj xeeb rau kev kub thermal Ib puag ncig xws li cov dav hlau cav sib txuas, thiab cov neeg ua haujlwm sib tw nrog kev xaiv hluav taws xob, ua ke nrog cov khoom siv hluav taws xob tsis kam thiab cov khoom siv hluav taws xob kom muaj zog thiab muaj zog ntawm cov ntaub ntawv.
Gnee Resistant 718 Steel Alloy Daim Ntawv Qhia Tshwj Xeeb
Inconel 718 Kev Kub Siab Lub Phaj Kev Tshwj Xeeb
| Hom | Cov lus qhia / lus piav qhia |
|---|---|
| Cov qauv qhov ntau thiab tsawg | Qhov tuab: 0.5 hli ~ 50 hli Qhov dav: 600 hli ~ 1500 hli (customizable txog 2000 mm) Qho ntev: 1000 mm ~ 6000 mm (customizable txog 12 m) |
| Tus qauv | - ASTM B670(Kub / Txias Rolled Phaj) - Ams 5596(Aerospace qib, daws + hnub nyoog) - Ams 5597(Txias dov nyias phaj) - Noj 10095(European Txuj Ci) |
| Nto Kho | - NEEG KHO TSHUAB POLISHING: Ra tsawg dua los yog sib npaug rau 0.8 μm (daim iav tiav) - Kev Hluav Taws Xob: Ra tsawg dua lossis sib npaug rau 0.4 μm (ultra-huv) - Sandblasting: SA 2.5 qhab nia (txhim kho kev qaug zog tsis kam) - Pickling & Passivation: Oxide tshem tawm, txhim kho corrosion tsis kam |
| Cov txheej txheem ntau lawm | - Kub Rolling: Thickness ntau dua los yog sib npaug rau 5 hli, daws-kho tau tom qab dov - Cuav Dab: Thickness tsawg dua los yog sib npaug rau 5 hli, qhov tseeb-ua kom muaj kev zam thev taus - Kev Kho Cua Sov: Kev daws (955 degree) + Laus (720℃/ 8h) - Ntxiv dag zog zuj zus: Tua peening (txhim kho lub neej qaug zog) |
| Cov Khoom Siv Neeg Kho Tshuab | Muaj hnub nyoog (Ams 5596): - Lub zog tensile: ntau dua los yog sib npaug rau 1340 MPa - Tshaj tawm lub zog: ntau dua lossis sib npaug rau 1170 MPa - elongation: ntau dua los yog sib npaug rau 12% - Hardness: HRC 35-45 |
| Kub tiv thaiv | - Kev Siv Lub Sij Hawm Ntev: 650 Qib (Oxidation Kuj) - Lub sij hawm luv luv: 980 Qib (tsis pom zoo rau kev siv ntev) |
| Cov Kev Siv Raug Raug | Aircraft lub cav combustors, roj turbine hniav, rocket cav cov kab ke, Nuclear reactor |
| Incmel 718 phaj, ntawv & nqaj siv tshuaj lom neeg: |
| Ni | Cr | Zaum fe | Mo | Nb + ta | C | Mn | Si | PH | S | Ti | CU | B | Al | Co las | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lub min | 50 | 17 | Tus liab | 2.8 | 4.75 | - | - | - | - | - | 0.65 | - | - | 0.20 | - |
| Tus zuag | 55 | 21 | - | 3.3 | 5.50 | 0.08 | 0.035 | 0.35 | 0.015 | 0.015 | 1.15 | 0.30 | 0.006 | 0.80 | 1.00 |
Gnee Resistant 718 Alloy Ntawv Daim Ntawv Teev Sijhawm
Ntau qhov ntau thiab tsawg ntawm inconel 718 cov phiaj kub siab tiv thaiv kub hauv kev ua lag luam
1. thickness
Daim hlau nyias nyias (cold rolled):
0.5 hli, 0.8 hli, 1.0 hli, 1.2 hli, 1.0 hli, 2.5 hli, 3.0 hli, 5.0 hli
(Siv rau precision Aviation seem, khoom siv hluav taws xob)
Nruab nrab thiab tuab daim hlau (kub dov):
6.0 hli, 8.0 hli, 10 hli, 12 hli, 15 mm, 20 mm, 25 mm
(Cov ntawv thov siv hluav taws xob tseem ceeb, xws li roj turbines, ntim khoom)
Cov paib tuab (kub dov / forged):
30 hli, 40 hli, 50 hli (customizable rau ntau tshaj 100 mm)
(Siv nyob rau hauv cov kev thauj khoom siab xws li lub zog nuclear thiab tshuab hnyav)
2. dav
Txheem Dav: 600 hli, 1000 mm, 1200 hli, 1500 hli
Kev Customization Tshwj Xeeb: Qee cov tuam ntxhab tuaj yeem muab 1800 hli, 2000 mm mm (yuav tsum tau lees tias Rolling COLLE MILLING ua ntej)
3. ntev
Cov chaw seem tsis thiab muaj ntau: 2000 mm, 2500 mm, 3000 mm, 4000 mm, 6000 mm
Ntxiv-Kev Customization Ntxiv: 8000 mm ~ 12000 mm ~ 12000 mm (yuav tsum tau welded thiab spliced hauv ntu)
Gnee Pab Pawg Hoobkas Ib puag ncig
Gnee Pawg Thaum Tshav Kub Kub Resistant 718 Hlau Alloy Cheeb Tsam
Gnee Group Ntim
Gnee Pab Pawg Thaum Tshav Kub Kub Resistant 718 Daim Ntawv Ntim
Gnee Pab Pawg Kev Ntsuas
Gnee Cov Pab Pawg Inconed Resistant 718 Hlau Alloy Ntawv Kev Xeem
Cov FAQ
Q: Peb puas tuaj yeem mus saib koj lub Hoobkas?
A: Txaus siab tos txais ib zaug peb muaj koj lub sijhawm peb yuav tuaj tos koj .
Q: Koj puas muaj kev tswj hwm zoo?
A: Yog, peb tau nce BV, SGS authentication .
Q: Koj puas tuaj yeem npaj cov zaub mov xa tuaj?
A: Kom paub meej, peb muaj tus nqi xa khoom ruaj khov uas tuaj yeem tau txais tus nqi zoo tshaj plaws los ntawm cov tuam txhab nkoj feem ntau thiab muab kev pabcuam kev tshaj lij thiab kev pabcuam {}}
